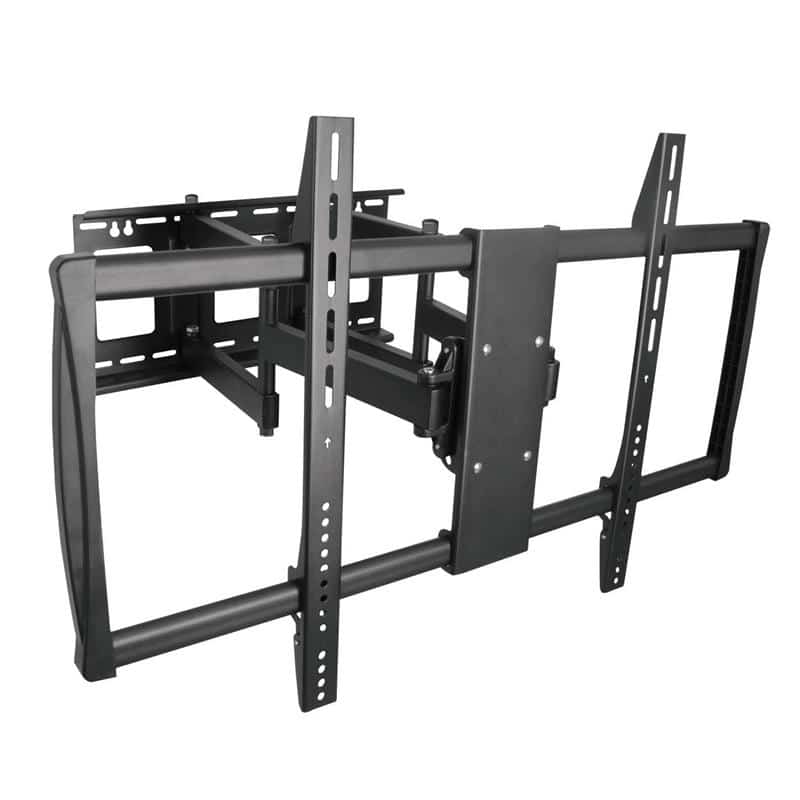

TooQ TV Rotating and Tilt Mount 60″ to 100″

Discover the rotating TV support Tooq , designed for 60 “to 100” screens . This support is perfect to optimize your visual experience, allowing a safe and versatile installation in any space. With its capacity for inclination and turn, you can enjoy your favorite content from any angle.

• Compatible with televisions of up to 100 inches.


  Technical Specifications

  • Features and Standards
  • Vertical wall mount support for SUPER large flat screens (between 60″ and 100″) and up to a maximum weight of 60kg.
  • Allows for screen tilt configuration between -15° and 5° on the vertical plane and rotation of -45° and 45° on the horizontal plane (depends on the screen size, installation, and available space). Adjustable distance from the wall from 70mm to 625mm. With all this, a perfect adjustment of the viewing position of your monitor/TV is guaranteed.
  • Compatible with maximum VESA screen mounting formats: 600 x 900 mm
  • Brand Tooq
  • Model LP75100TN-B
  • Usage – TV Mount
  • Features – Rotatable and tiltable for LCD, PLASMA, and LED monitor/TV
  • Maximum hole spacing: 926 mm (Width) x 610 mm (Height)
  • Maximum VESA: 600 x 900 mm
  • Wall plate: 580 x 286mm
  • Supported screens: 60″-100″
  • Maximum Load: 80kgs/176lbs
  • Tilt Angle: -15º- +5º
  • Maximum rotation angle: -45º-+45º (depends on the screen size, installation, and available space)
  • Leveling angle: -3º~ +3º
  • Distance from the wall: 70mm-625mm
  • Color: Black
  • Contents
  • 1 x Metal mount LP75100TN-B
  • 1 x Installation manual
  • Review date 15-12-2016 by MSB
