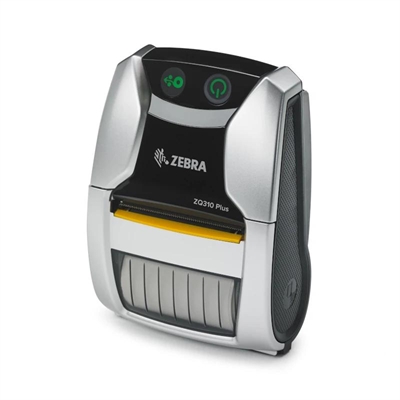

Zebra ZQ310 Direct Thermal Printer

The direct thermal printer ZQ310 of zebra is the ideal solution for your mobile printing needs. Designed to offer exceptional performance, this compact printer allows you to print receipts and labels quickly and efficiently, improving your business productivity.

• Bluetooth and Wi-Fi connectivity for easy integration. crisp.


  Technical Specifications

  • Zebra Brand
  • Model ZQ31-A0E04TE-00
  • Specifications – Portable printer
  • Direct thermal
  • Operating system: Link-OS printer operating system
  • Printing method: Direct thermal
  • Resolution: 203 dpi/8 dots mm
  • Memory: 128 MB RAM, 256 MB Flash (48 MB available for user)
  • Battery: 2300mAh
  • Maximum Print Width: 48 mm/1.89 in
  • Maximum Print Speed: Up to 100 mm/s (4 ips)
  • Material Sensors
  • Black mark
  • Gap (optional) (the bar sensor is only for marks on the upper side)
  • Programming languages: CPCL, ZPL. The ZPL programming language ensures full compatibility with many other Zebra printers
  • Cutter: Cut bar
  • Print direction: Horizontal and vertical
  • Fonts/Graphics/Symbols – CPCL/ZPL (scalable): Latin 9, Arabic, Cyrillic, Hebrew, SourceCodePro, NotoMono (CJK), Hans (CJK), Thai (Angsana)
  • CPCL (bitmap): Standard fonts: 25 bitmap fonts, smooth scalable (CG Triumvirate bold condensed), scalable SourceCodePro, scalable NotoMono (CJK), scalable Hans (CJK), Optional fonts: Downloadable bitmap and scalable fonts, *Contains UFST from Agfa Monotype Corporation
  • ZPL
  • Standard fonts: 25 bitmap fonts, smooth scalable (CG Triumvirate bold condensed), scalable SourceCodePro, scalable NotoMono (CJK), scalable Hans (CJK)
  • Optional fonts: Downloadable bitmap and scalable fonts, *Contains UFST from Agfa Monotype Corporation
  • Barcode ratios 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1
  • Linear barcodes: Codabar (NW-7), Code 39, Code 93, Code 128, EAN-8, EAN-13, 2 and 5 digit supplement, Interleaved 2-of-5, UCC/EAN 128, UPC-A, UPC-E, 2 and 5 digit supplement
  • 2D barcodes: 2D barcodes: Aztec Code, Data Matrix, GS1/DataBar™ family (RSS), MaxiCode, MicroPDF417, PDF417, QR Code, TLC 39
  • Connectivity – USB 2.0 type-C
  • Bluetooth
  • NFC
  • Other features Material features
  • Direct thermal, 8 dots/mm (203 dpi)
  • Media width (max.): 58 mm
  • Roll diameter (max.): 40 mm
  • Speed (max.): 100 mm/s
  • Label counter: Odometer
  • Material types: Direct thermal: receipt paper, linerless labels
  • Environment and durability
  • Operating temp.: From -15 to 50 °C/5 to 122 °F
  • Storage temp.: From -20 to 60 °C/-4 to +140 °F
  • Charging temperature: From 0 to 40 °C/0 to +140 °F
  • Operating humidity: From 10 to 90 % non-condensing
  • Dimensions and weight
  • 130 x 93.5 x 49.5 mm
  • 0.37 kg
  • Contains
  • Cable (USB)
  • Belt clip
  • Battery
  • Revision Date 03-10-2024 by RTY
