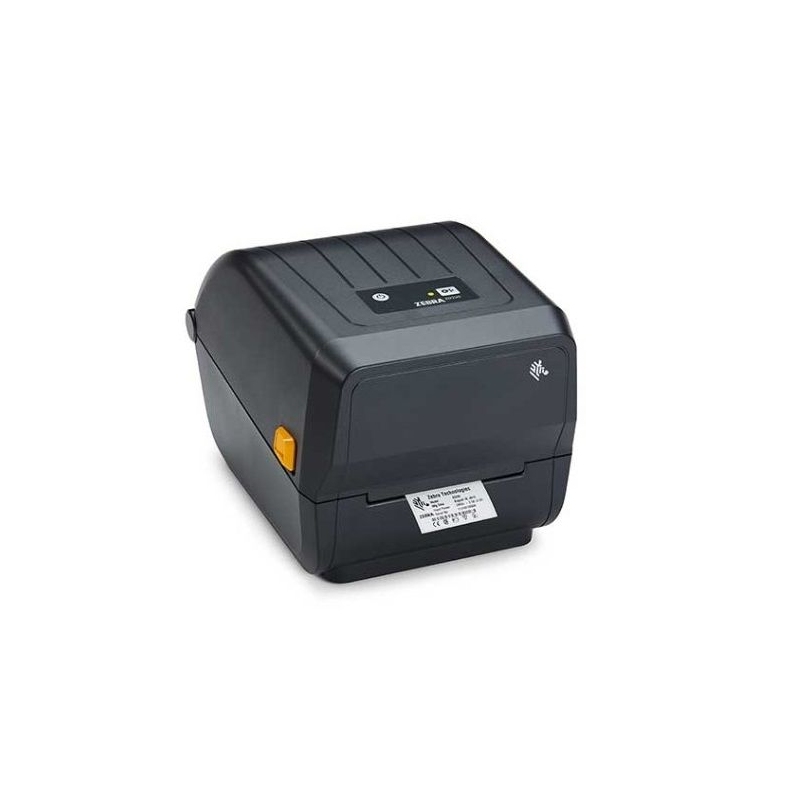

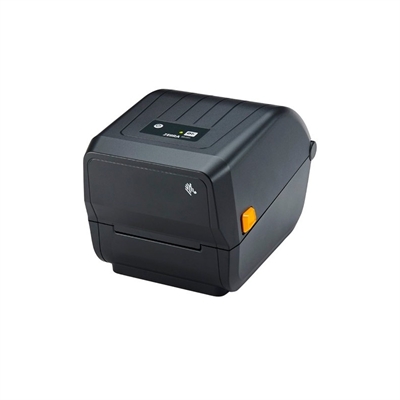

Zebra ZD230 Direct Thermal Printer USB Ethernet

The Zebra ZD230 Direct Thermal Printer is the ideal solution for your label and receipt printing needs. With USB and Ethernet connectivity, this printer offers exceptional performance and is easy to integrate into any work environment.

• Compact and efficient design to save space.
• High-speed printing to improve productivity.
• Compatible with various printing applications.
• Easy to use and maintain, ideal for businesses of all sizes.

Technical Specifications

• Zebra Brand
• Model ZD23042-D0EC00EZ
• Specifications – Resolution: 203 ppp/8 points per mm
• Memory: 256 MB of Flash; 128 MB of SDRAM
• Maximum print width: 104 mm for 203 ppp
• Maximum print speed: 152 mm per second
• Material sensors:
• Mobile black mark sensor, limited range from center to right side
• Fixed offset hole sensor
• Firmware: ZPL II; EPL 2; XML
• Bar code symbology – Bar code ratios: 2:1 and 3:1
• 1D bar codes: Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and
• 2 or 5 digit EAN extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5,
• Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code
• 2D bar codes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec
• Fonts – 16 resident expandable ZPL II bitmap fonts
• 2 resident scalable ZPL fonts
• 5 resident expandable EPL2 fonts
• Native support for Open-Type fonts
• Meets Unicode standard for on-demand thermal printing in multiple languages
• 50 MB of non-volatile memory available to the user, 8 MB of SDRAM available to the user
• Connectivity – USB and Ethernet
• Other features Material and ribbon features
• Maximum label length: 991 mm
• Material width: From 25.4 mm to 112 mm
• Material roll size: 127 mm outer diameter.
• Core inner diameter: 12.7 mm and 25.4 mm standard, 38.1 mm, 50.8 mm and 76.2 mm using optional adapters
• Thickness: 0.08 mm min.; 0.1905 mm max. (dispenser mode only)
• Material types: Die-cut or continuous with roll feed or fold, with or without black mark, identifier, continuous receipt paper and wristbands
• Ribbon outer diameter: 66 mm (300 m); 34 mm (74 m)
• Maximum ribbon length: 300 m/984 feet
• Material-ribbon ratio:
• 1:4 material to ribbon (300 m)
• 1:1 material to ribbon (74 m)
• Ribbon width: 33.8 mm ~ 109.2 mm
• Ribbon core inner diameter:
• 300 m ribbon of 25.4 mm
• 74 m ribbon of 12.7 mm
• Dimensions and weight
• Direct thermal: 220 mm (Lo) x 176 mm (An) x 151 mm (Al)
• Weight: 1.1 kg
• Revision date 25-01-2021 by MSB
