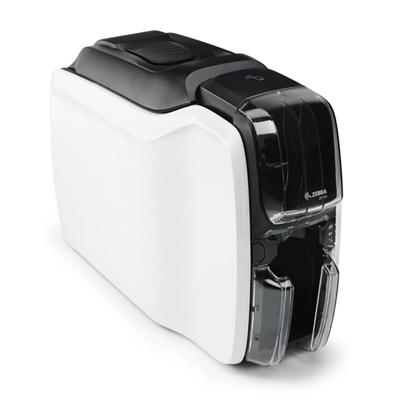

Zebra ZC100 Colour Card Printer Sublimation

The Zebra ZC100 Card Printer is the ideal solution for customizing color cards using sublimation technology. Designed to offer quality and efficiency, this thermal printer stands out for its ease of use and compact design, perfect for offices and events.

• High-quality printing: Produces vibrant and high-resolution cards.
• Easy to use: Intuitive interface and quick setup.
• Compact and modern: Ideal for small spaces.
• Zebra reliability: Recognized brand for its durability and performance.

Technical Specifications

• Zebra Brand
• Model ZC11-0000000EM00
• Type – Thermal printers
• Printing – Direct card printing using thermal transfer with dye sublimation
• Full color or monochrome printing
• Single-sided printing
• Edge-to-edge printing on standard CR-80 material
• Card compatibility – Card thickness: 10-40 mil
• Card size: CR80 ISO 7810 ID-1 format, CR79
• Card material: PVC and PVC composite
• Cards with adhesive back and suitable for writing
• Direct color or monochrome printing on cards of thickness
• Interface – USB 2.0
• Encoding – Magnetic stripe encoder — ISO 7811 (new and pre-encoded; tracks 1, 2, and 3; high and low coercivity; band down; only 30 mil cards)
• Third-party contactless encoder integration kit
• Field-upgradable options
• Features – Print resolution of 300 dpi (11.8 dots/mm)
• 2 GB of Flash memory
• Image size: 1006 x 640 pixels
• Automatic ribbon calibration
• USB 2.0 connectivity
• Input hopper with automatic adjustment and capacity for 100 cards (30 mil)
• Output hopper with capacity for 100 cards (30 mil)
• Manual card feed with LED bezel
• 3 tricolor lights indicating printer status
• Kensington® security anchor slot
• Printer host authentication and data encryption
• NFC Print Touch identifier and Quick Help QR code for online access to printer help and documentation
• Environmental specifications
• Operating temperature: From 15º C to 35º C
• Operating humidity: From 20% to 80% non-condensing
• Storage temperature: From 5º C to 25º C
• Humidity: From 35% to 65% non-condensing
• Electrical characteristics
• Single-phase AC power supply with automatic switching
• Operating range: 90-132 VAC and 190-264 VAC RMS
• Frequency range: 47-63 Hz
• FCC Class A
• Physical characteristics
• Dimensions (H x W x D): 258 x 157 x 383 mm
• Weight: 3.9 kg
• Revision Date 26-08-2019 by MSB
