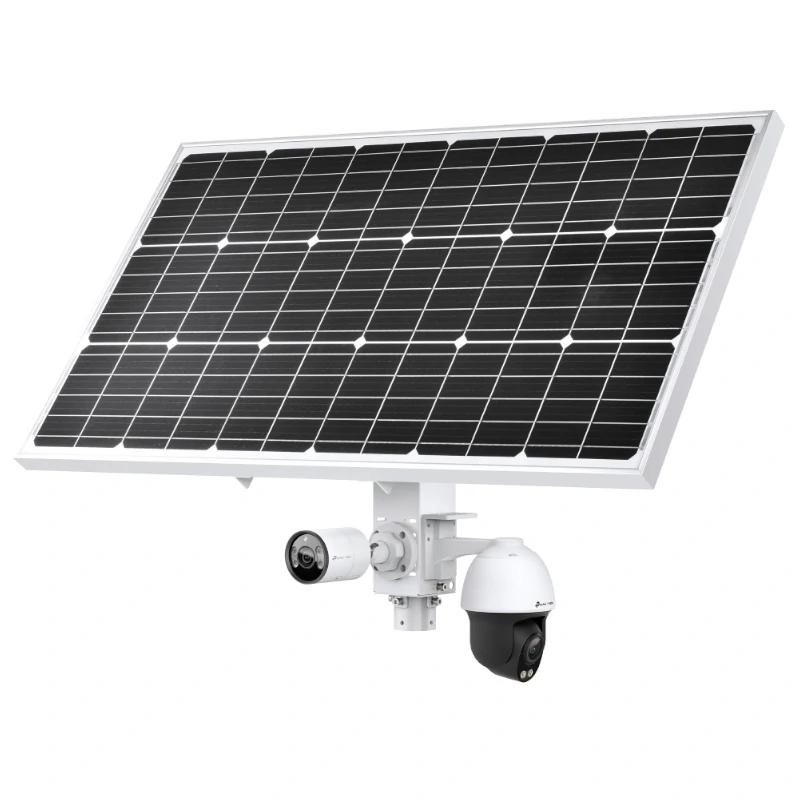

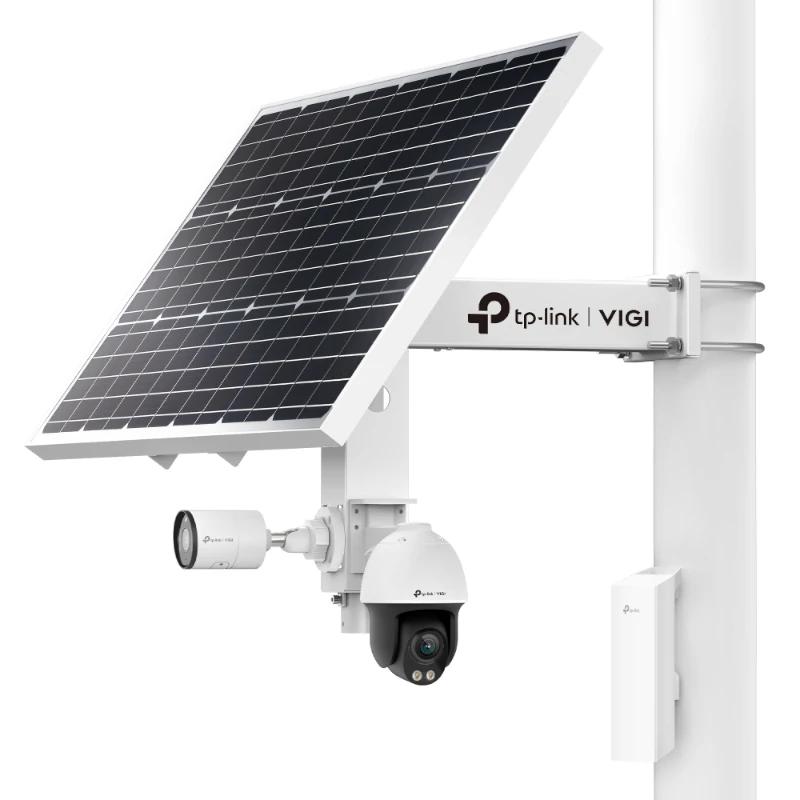

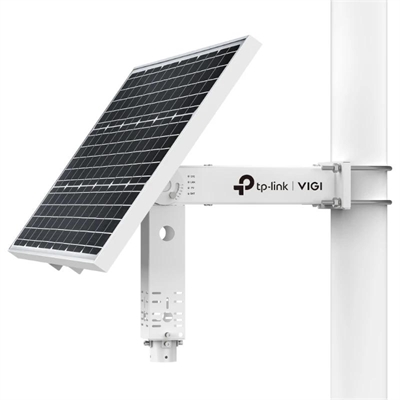

VIGI SP9030 Intelligent Solar Power Supply System

Discover the Vigi SP9030 Intelligent Solar Power Supply System tp-link , an innovative solution for your video surveillance needs . This smart solar energy system ensures constant and efficient supply, ideal for external facilities. Forget about the limitations of traditional energy sources and enjoy the freedom offered by solar energy. Video surveillance.

Technical Specifications

• High load capacity. 90W photovoltaic panel and 30Ah/10.8V lithium battery.
• Freedom of installation. Modular design to facilitate outdoor assembly.

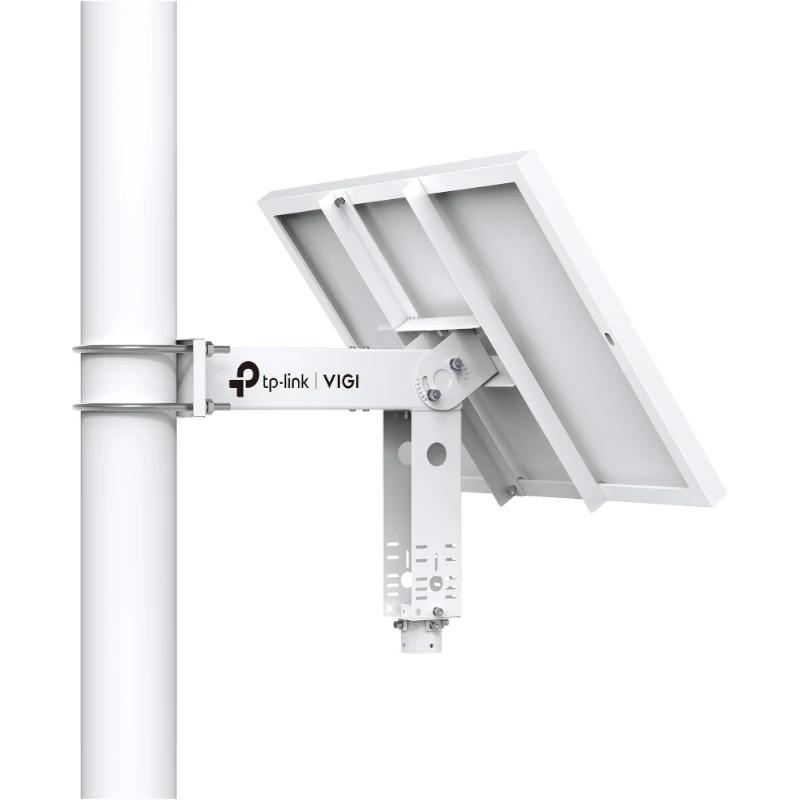

• Adjustable angles. Custom orientation at 5°/15°/25°/35°/45°/55° to adapt to each installation.
• Operation at any temperature. Integrates smart auxiliary heating technology for optimal performance across a wide temperature range.
• High charging efficiency. The maximum power point tracking (MPPT) charge controller increases charging efficiency by 20%.
• IP66 protection. The solar panel is sealed against water and dust to withstand outdoor conditions.
• Remote control. Manage the solar panel remotely from the mobile app and PC.
• Brand VIGI
• Model VIGI SP9030
• Solar Panel (Photovoltaic Panel) – Power: 90 W
• Voltage: 18 V
• Dimensions (L x W x H): 998 × 516 × 30 mm
• Battery – Type: Lithium
• Smart auxiliary heating: Yes
• Battery Capacity: 31.2 Ah
• Voltage: 10.8 V
• Max. Output Voltage: 12.6 V
• Lifespan: Over 500 cycles
• Dimension: 242 × 70 × 55 mm
• Charging Conditions:
• 0°C~45°C
• 30°C~45°C (With smart auxiliary heating)
• Discharging Conditions:
• 20°C~60°C
• 30°C~60°C (With smart auxiliary heating)
• Angle adjustment (manual) – Range: 5°/15°/25°/35°/45°/55°
• Hardware – Interface
• 1× 10/100 Mbps RJ45
• 1× Photovoltaic Panel Connector
• 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
• LED Indicator
• Quantity: 4 (1× SYS indicator, 1× LAN indicator, 1× PV indicator, 1× BAT indicator)
• Color: Blue
• Software Features – Charge control
• Protection against high and low temperatures
• Over-discharge protection
• Energy consumption statistics
• Displays charging status in real-time
• Battery level visualization
• Time zone selection
• Region selection
• Schedule save
• Remote firmware update
• Remote restart
• Local LAN management
• Smart charge control: -30°C~5°C
• Account management
• Web management
• Remote reset
• Remote message sending
• Others – Certification
• CB, PSE (Battery)
• CE, FCC, VCCI, IC, IP66
• Package Contents
• VIGI SP9030
• Quick start guide
• Waterproof cable accessories
• Mounting accessories
• Weight
• Product weight: 15 kg
• Package weight: 17.5 kg
• Environment
• Operating temperature: -30°C-60°C (With smart auxiliary heating)
• Operating humidity: 10%~90%RH, no condensation
