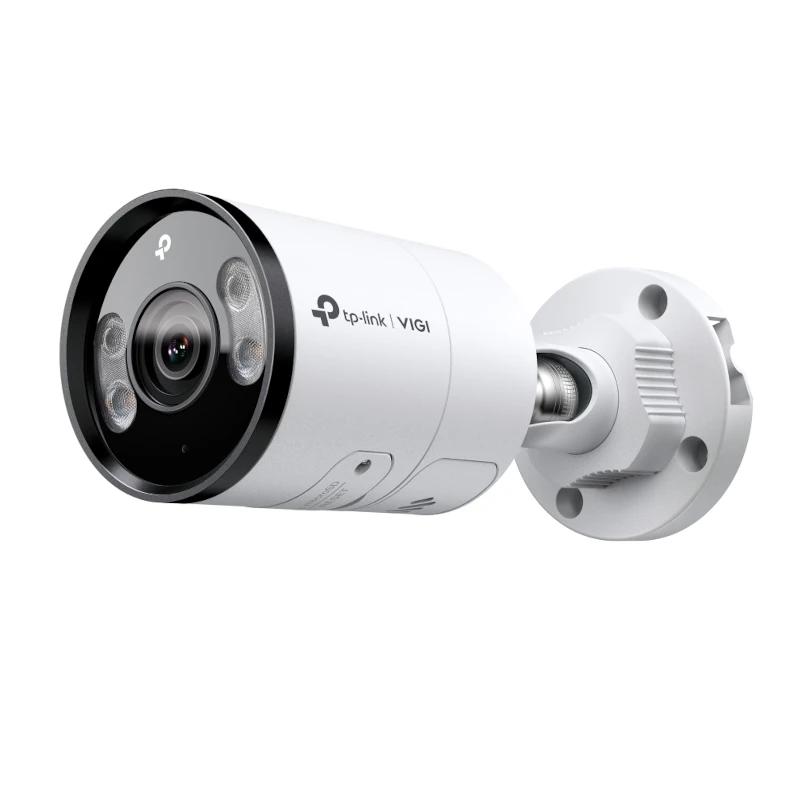

VIGI S355(4mm) NW Bullet Camera 5MP Out Full-Colour

Technical Specifications

• Brand VIGI
• Model InSight S355(4mm)
• Camera – Image Sensor: 1/2.7” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/ Scheduled/ Auto
• Lens – Type Fixed focal lens
• Focal Length 4 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 88°
• Vertical FOV: 46°
• Diagonal FOV: 105.4°
• Lens Mount: M12*P 0.5
• DORI Distance
• Detection: 80 m
• Observe: 33 m
• Recognize: 16 m
• Identify: 8 m
• Illumination
• IR LED
• Quantity: 2
• Range: 30 m
• Wavelength: 850 nm
• White LED
• Quantity: 2
• Range: 30 m
• Illuminator on/off control: Automatic/Scheduled/Always on/Always off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevents overexposure to infrared light
• HLC adjustable via client software
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: 120 dB
• Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
• SNR: ≥ 52dB
• Image Parameter Switch
• Privacy Mask: up to 4 masks
• ROI: 1 Region
• OSD Settings
• Video
• Max. Resolution: 2880 x 1620
• Main Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Main Stream Resolution:
• 2880×1620
• 2688×1520
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Note: If image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Sub-Stream Resolution:
• 848×480
• 704×576
• 640×480
• 640×360
• 352×288
• 320×240
• Note: If image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Bit Rate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: High profile
• H.264+: Supports main stream
• H.265 Type: Main profile
• H.265+: Supports main stream
• Main Stream Video Bit Rate: 256 Kbps to 6 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M Adaptive Ethernet Port, PoE
• Reset Button
• Power: DC Power Port
• Internal Storage: Built-in memory card slot, compatible with MicroSD card, up to 512 GB**
• Built-in Microphone: Records everything happening within a 15-foot radius of the camera
• Built-in Speaker
• Features – Angle Adjustment (manual):
• Pan Range: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°
• Network
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
• ONVIF
• API: ONVIF Profile S/T/G
• Simultaneous Live View: 3 main streams and 3 sub streams
• Client: VIGI App, VIGI Security Manager, web user interface, VIGI VMS, VIGI Cloud VMS
• Web Browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, implicit authentication
• Audio
• Audio Communication: Two-way Audio
• Audio Input
• Audio Output
• Audio Compression
• Audio Sampling Rate: 8 KHz
• Environmental Noise Filtering
• Audio Bit Rate: 64 Kbps (G.711 law)
• Alarm
• Smart Event:
• Intrusion Detection
• Line Crossing Detection
• Region Entry Detection
• Region Exit Detection
• Abandoned Object Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
• Basic Event:
• Motion Detection (enhanced with human and vehicle classification for more accurate alerts)
• Video Tampering Detection
• Exception (illegal login)
• Alarm Linking:
• Video recording to memory card
• Message sending
• Audible warning
• Flashing white light
• Power
• Power Supply:
• 12V DC ± 5%, Max. 9.7 W
• 5.5 mm coaxial power plug.
• PoE: 802.3af/at, class 0, max. 10.7W
• Dimensions and Weight
• 184 × 74 × 74 mm
• 0.525 g
• Contains
• VIGI Network Camera
• Quick Start Guide
• Mounting Accessories with Waterproof Cable
• Mounting Accessories
