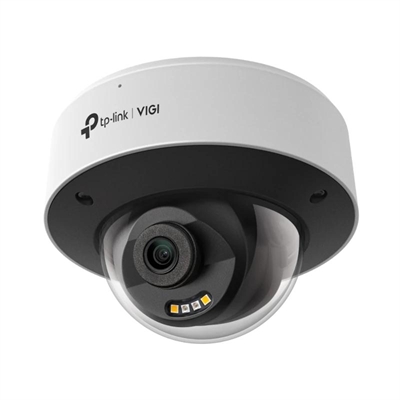

VIGI S285(4mm) 8MP Full-Colour NW Dome Camera

The Vigi S285 (4mm) is a NW 8MP Full-Color camera of the renowned tp-link brand , ideal for maintaining the safety of your home or business. With its 8MP resolution, you can enjoy clear and detailed images even in low light conditions. fluid

Technical Specifications

• Brand VIGI
• Model InSight S285(4mm)
• Camera – Image Sensor: 1/2.7” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/ Scheduled/ Auto
• Lens – Lens Type: Fixed focal length
• Focal Length: 4 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 88°
• Vertical FOV: 46°
• Diagonal FOV: 105.4°
• Lens Mount: M12*P 0.5
• DORI Distance
• Detection: 107 m
• Observation: 44 m
• Recognition: 21 m
• Identification: 11 m
• Illumination
• Infrared LEDs:
• Quantity: 2
• Range: 30m
• Wavelength: 850 nm
• White LEDs:
• Quantity: 2
• Range: 30m
• Light Control On/Off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevents overexposure to infrared light
• HLC adjustable via client software
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: 120 dB
• Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
• SNR: ≥ 52dB
• Image Parameter Switch
• Privacy Mask: up to 4 masks
• ROI: 1 Region
• OSD Configuration
• Video
• Max. Resolution: 3840 x 2160
• Main Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• Main Stream Resolution:
• 3840×2160
• 2560×1440
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Note: If image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• Sub-Stream Resolution: 848×480, 704×576, 640×480, 640×360, 352×288, 320×240
• * If image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• * If HDR is enabled, the frame rate can only support up to 20 fps.
• Bit Rate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: High profile
• H.265+: Compatible with Main Stream
• H.265 Type: Main profile
• H.265+: Compatible with Main Stream
• Main Stream Video Bit Rate: 256 Kbps to 8 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M Adaptive Ethernet Port, PoE
• Reset Button
• Power: DC Power Port
• Internal Storage: Built-in memory card slot, compatible with MicroSD card, up to 512 GB
• Built-in Microphone: records everything happening within a 15-foot radius of the camera
• Built-in Speaker
• Features Network
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
• ONVIF
• API: Open Network Video Interface (Profile S)
• Simultaneous Live View 3 Main Streams and 3 Sub Streams
• Client: VIGI App, Web UI, VIGI VMS, Utility
• Web Browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, implicit authentication
• Audio
• Audio Communication: Two-way Audio
• Audio Input
• Audio Output
• Audio Compression
• Audio Sampling Rate: 8KHz
• Ambient Noise Filtering
• Audio Bit Rate: 64 Kbps (G.711 law)
• Alarm
• Smart Event:
• Intrusion Detection
• Line Crossing Detection
• Region Entry Detection
• Region Exit Detection
• Abandoned Object Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
• Basic Detection:
• Motion Detection (enhanced with person and vehicle classification for more accurate alerts)
• Camera Tampering
• Exception (illegal login)
• Alarm Linkage:
• Video recording to memory card
• Push notification
• Audible warning
• Flashing white light
• Output Notification: Push notification
• Power
• Power Supply:
• 12V DC ± 5%, Max. 11 W
• 5.5 mm coaxial power plug.
• PoE: 802.3af/at, class 0, max. 12.3W
• Dimensions and Weight
• 122 x 122 x 89 mm
• 0.62 g
• Contains
• VIGI Network Camera
• Quick Start Guide
• Mounting Accessories with Waterproof Cable
• Mounting Accessories
• Review Date 10-03-2025 by RTY
