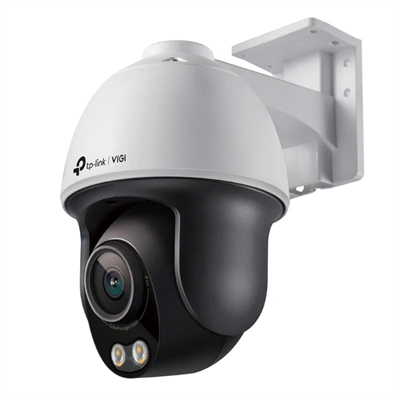

VIGI PT IP Camera C540S 4MP Plastic Full-Colour 4m

Technical Specifications

• Brand VIGI
• Model VIGI C540S(4mm)
• Camera – Image Sensor: 1/1.79” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
• Day/Night Switch: Unified/ Scheduled/ Auto
• Lens – Lens Type: Fixed focal length
• Focal Length: 4 mm
• Aperture: F1.0±5%
• FOV:
• Horizontal FOV: 104°
• Vertical FOV: 55°
• Diagonal FOV: 127°
• Lens Mount: M12*P 0.5
• DORI Distance
• Detection: 63 m
• Observe: 26 m
• Recognize: 13 m
• Identify: 6 m
• Illumination
• Number of white LEDs: 2
• Range: 30m
• Lighting control on/off: Automatic/Scheduled/Always on/Always off
• Image and Video Image
• Image settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White balance
• HLC adjustable by client software
• Image enhancement: BLC/3D DNR/HLC/SmartIR
• Wide dynamic range: 120 dB
• SNR: ≥ 52dB
• Image parameter switch
• Privacy mask: up to 4 masks
• ROI: 1 Region
• OSD configuration
• Video
• Max. Resolution: 2688 x 1520
• Main Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Main Stream Resolution:
• 2688×1520
• 2560×1440
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Sub-Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Sub-Stream Resolution: 848×480, 704×576, 640×480, 640×360, 352×288, 320×240
• Bit rate control: CBR, VBR
• Video compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: High profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main profile
• H.265+: Compatible with Main Stream
• Main Stream video bit rate: 256 Kbps to 6 Mbps
• Sub-Stream video bit rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M Adaptive Ethernet Port, PoE
• Reset button
• Power: DC power port
• Internal storage: Built-in memory card slot, compatible with MicroSD card, up to 512 GB
• Built-in microphone: records everything happening within a 15-foot radius of the camera
• Built-in speaker
• Network Features
• Protocol:
• TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP
• DNS
• RTSP
• NTP
• UPnP UDP
• SSL/TLS
• FTP/SFTP
• RTP
• IPv4
• IPv6
• ARP
• SMTP
• ONVIF
• API: Open Network Video Interface (Profile S)
• Simultaneous live view 3 main streams and 3 sub-streams
• Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS
• Web browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, implicit authentication
• Audio
• Audio Communication: Two-way Audio
• Audio Input
• Audio Output
• Audio Compression
• Audio Sampling Rate: 8KHz
• Ambient noise filtering
• Audio Bit Rate: 64 Kbps (G.711 law)
• Alarm
• Intelligent classification of people and vehicle events
• Area intrusion detection
• Line crossing detection
• Person detection
• Vehicle detection
• Region entry detection
• Region exit detection
• Abandoned object detection
• Object removal detection
• Loitering detection
• Person detection
• Vehicle detection
• Abnormal sound detection
• Scene change detection
• Basic detection:
• Motion detection (enhanced with person and vehicle classification for more accurate alerts)
• Video tampering detection
• Exception (illegal login)
• Alarm linkage: Video recording with memory card, push message, flashing white light
• Output notification: Push message
• Power
• Power supply:
• 12V DC ± 5%, Max. 13.13 W
• Coaxial power plug
• PoE: 802.3af/at, class 4, max. 16.47W
• Dimensions
• 119.9 × 171.75 × 203.05 mm
• Contains
• VIGI network camera
• Quick start guide
• Waterproof cable accessories
• Mounting accessories
• Review date 03-10-2024 by RTY
