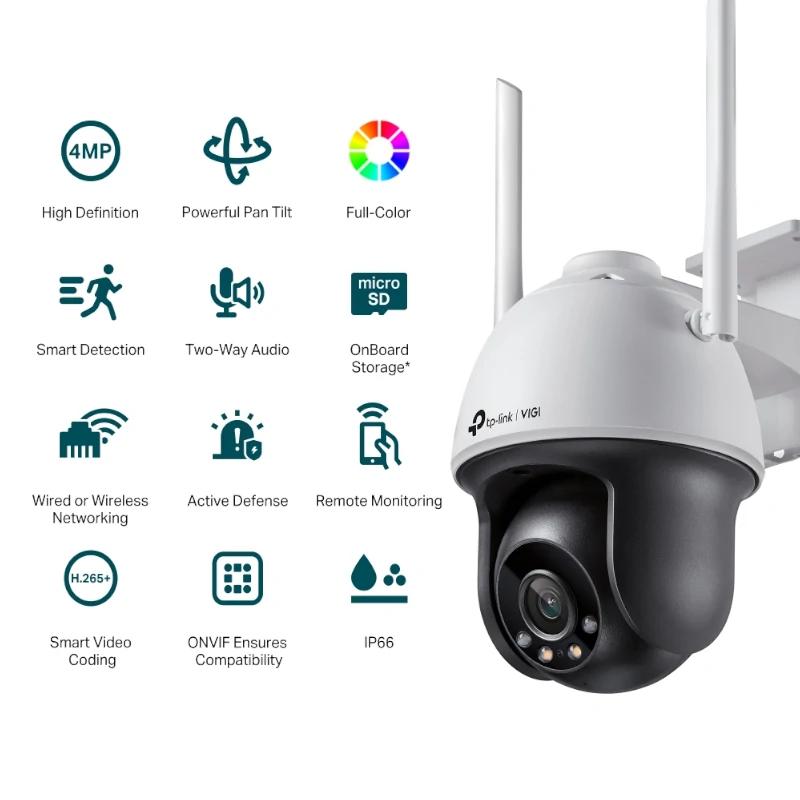

VIGI PT IP Camera C540-W 4MP Plastic FColor Wi-Fi

Discover the VIGI Cámara IP PT C540-W 4MP from TP-LINK, an advanced security solution for your home or business. With its durable plastic design and Wi-Fi technology, this camera offers high-quality images and easy installation.

• 4MP resolution for a clear and sharp vision.
• Wi-Fi connectivity for a hassle-free installation.
• PT (pan-tilt) control for wide and flexible coverage.
• Ideal for both indoors and outdoors due to its robustness.

Technical Specifications

• Super high definition of 4MP. The VIGI C540-W camera captures sharp, high-quality images at a resolution of up to 2560×1440 pixels.
• Full Color 24/7. Full-color image in total darkness thanks to the large aperture lens, high-sensitivity sensor, and integrated lighting.
• Advanced Pan&Tilt. Enhances security in key areas of the property by establishing predefined positions for quick event detection.
• Wireless Connection. Integrates antennas to ensure a stable and uninterrupted Wi-Fi connection both indoors and outdoors.
• IP66 Protection. The camera is hermetically sealed against water and dust to ensure high performance outdoors.
• Intelligent Detection. Receive notifications when someone accesses restricted areas, manipulates the camera, and when objects are removed or abandoned.
• H.265+ Video. Saves storage space and bandwidth without sacrificing video image quality. This can help reduce monitoring costs.
• Easy Control. Manage your business’s security with the VIGI app.
• Brand VIGI
• Model VIGI C540-W(4mm)
• Camera – Image Sensor: 1/3 Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0 lux with IR/white light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/Scheduled/Auto
• Digital Noise Reduction: 3D DNR
• WDR: DWDR
• Weatherproof Rating: IP66
• IR Working Distance: 30m
• Pan/Tilt Range: Pan: 0° to 350°, Tilt: 0° to 120°
• Illumination Distance: 30 m
• Lens – Lens Type: Fixed focal lens
• Focal Length: 4 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 79°
• Vertical FOV: 43°
• Diagonal FOV: 93°
• Lens Mount: M12
• DORI Distance
• Detection: 80 m
• Observation: 33 m
• Recognition: 16 m
• Identification: 8 m
• Lighting
• Infrared LEDs:
• Quantity: 2
• Range: 30m
• Wavelength: 850 nm
• White LEDs:
• Quantity: 2
• Range: 30m
• Lighting Control On/Off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevents overexposure to infrared light
• HLC adjustable via client software
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52 dB
• Image Parameter Switch
• Privacy Mask: Up to 4 masks
• ROI: 1 Region
• OSD Configuration
• Video
• Max Resolution: 2560 X 1440
• Main Stream Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Main Stream Resolution:
• 2560×1440
• 2304×1296
• 2048×1280
• 1920×1080
• Sub-Stream Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Sub-Stream Resolution:
• 640×480
• 352×288
• 320×240
• Bit Rate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main Profile
• H.265+: Compatible with Main Stream
• Main Stream Video Bit Rate: 256 Kbps to 4 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Audio Input: Built-in Microphone
• Audio Output: Built-in Speaker
• Reset Button
• Power: DC Power Port
• Internal Storage: Built-in memory card slot, supports MicroSD card up to 256 GB
• Built-in Microphone: Yes; Records everything happening within a 15-foot radius of the camera
• Built-in Speaker
• Features PTZ
• Horizontal/Vertical Range:
• Pan: 0° to 350°
• Tilt: 0° to 120°
• Horizontal/Vertical Speed:
• Pan Speed: Configurable from 1° to 55°/s; Preset Speed: 55°/s
• Tilt Speed: Configurable from 1° to 40°/s, Preset Speed 40°/s
• Manual Control Speed: Configurable from 8° to 35°/s
• Presets: 300
• Patrol Scan: 8 patrols, up to 8 presets for each patrol
• Power-off Memory: Yes; Automatic restoration to previous PTZ and lens state after power loss
• Park Action: Yes; Schedule; Patrol Scan
• 3D Positioning
• Network
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• Wireless Rate:
• 11 Mbps (802.11b)
• 54 Mbps (802.11g)
• 150 Mbps (802.11n)
• Wireless Security: WPA/WPA2-PSK
• ONVIF
• API: ONVIF
• Simultaneous Live View 3 main streams and 3 sub-streams
• Web Browser:
• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, implicit authentication
• Frequency: 2.4 GHz
• Wireless
• Standards: IEEE 802.11b/g/n
• Wi-Fi Channels:
• UN: 1-13
• US: 1-11
• Frequency: 2.4 GHz
• Wireless Transmission Power: High
• Radio Bandwidth:
• 20M: Yes
• 40M: Yes
• Wireless Rate:
• 11 Mbps (802.11b)
• 54 Mbps (802.11g)
• 150 Mbps (802.11n)
• Wireless Security: WPA/WPA2-PSK
• Wireless Mode: AP, AP Client
• Alarm and Event Management
• Smart Event
• Area Intrusion Detection
• Line Crossing Detection
• Person Detection
• Basic Event
• Motion Detection
• Video Tampering Detection
• Exception (illegal login)
• Alarm Link
• Video recording with memory card
• Push message
• Sound warning
• Flashing white light
• Output Notification: Message Push
• Power
• Power Consumption: 12V DC: Max 15.5W
• Power Supply: 12 V DC ± 5%, 5.5 mm coaxial plug
• Dimensions and Weight
• 120 × 172 × 198 mm
• 0.62 g
• Contains
• VIGI Network Camera
• Quick Start Guide
• Waterproof cable accessories
• Mounting accessories
• Power adapter
