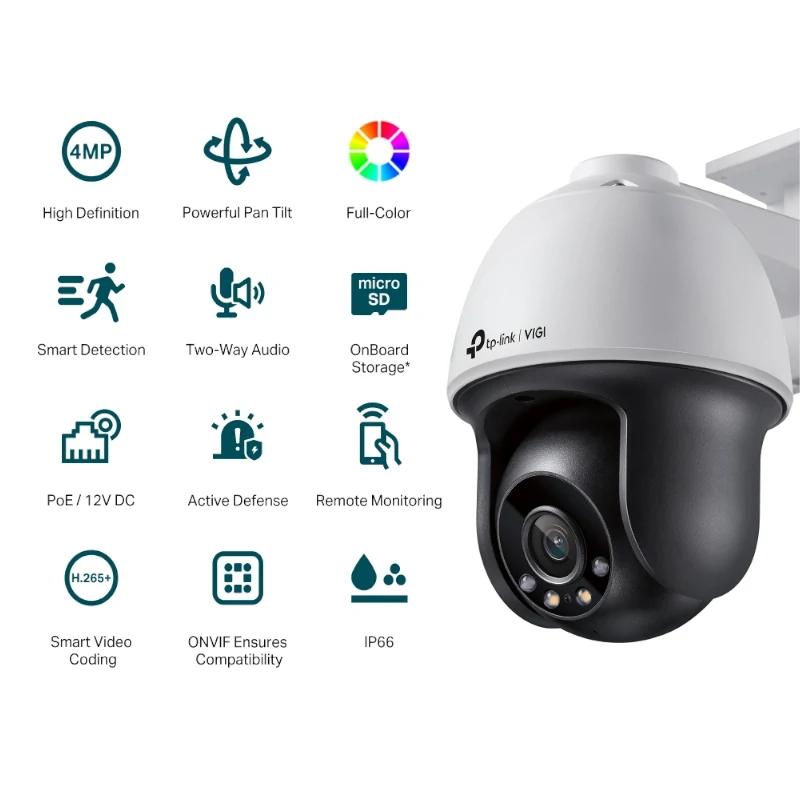

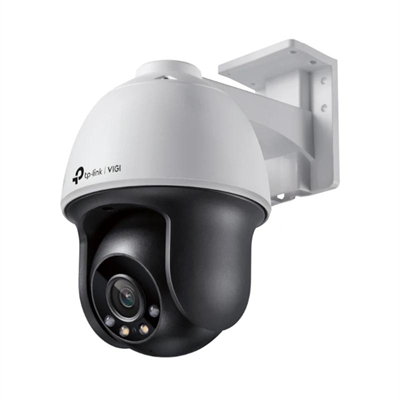

VIGI PT IP Camera C540 4MP Plastic Full-Colour 4mm

Discover the Vigi IP Chamber PT C540 of tp-link , an advanced surveillance solution that offers images in full-colored with a resolution of 4MP . Ideal to protect your home or business, this camera has a 4mm lens that provides a clear and clear vision of both day and night. Vigi.

Technical Specifications

• Super high definition of 4MP. The VIGI C540-W camera captures sharp, high-quality images at a resolution of up to 2560×1440 pixels.
• Full Color 24/7. Full-color image in total darkness thanks to the large aperture lens, high-sensitivity sensor, and integrated lighting.
• Advanced Pan&Tilt. Enhances security in key areas of the property by establishing predefined positions for quick event detection.
• IP66 protection. The camera is hermetically sealed against water and dust to ensure high performance outdoors.
• Intelligent detection. Receive notifications when someone accesses restricted areas, manipulates the camera, and when objects are removed or abandoned.
• H.265+ video. Saves storage space and bandwidth without sacrificing video image quality. This can help reduce monitoring costs.
• PoE and 12V DC power supply. Choose the method that best suits your security installation.
• Simple control. Manage your business’s security with the VIGI app.
• Brand VIGI
• Model VIGI C540(4mm)
• Camera – Image Sensor: 1/3 Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0 lux with IR/white light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/Scheduled/Auto
• Lens – Fixed focal lens type
• Focal length: 4 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 79°
• Vertical FOV: 43°
• Diagonal FOV: 93°
• Lens mount: M12
• DORI Distance
• Detection: 80 m
• Observe: 33 m
• Recognize: 16 m
• Identify: 8 m
• Lighting
• Number of infrared LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Number of white LEDs: 2
• Range: 30m
• Lighting control on/off: Automatic/Scheduled/Always on/Always off
• PTZ
• Horizontal/Vertical Range: Pan: 0° to 350°, Tilt: 0° to 120°
• Horizontal/Vertical Speed:
• Pan speed: Configurable from 1° to 55°/s;
• Preset speed: 55°/s
• Tilt speed: Configurable from 1° to 40°/s, Preset speed 40°/s
• Manual control speed: Configurable from 8° to 35°/s
• Presets: 300
• Patrol Scan: 8 patrols, up to 8 presets for each patrol
• Power-off memory: Automatic restoration to the previous PTZ and lens state after a power outage
• Park action: Schedule; Patrol scan
• 3D positioning
• Angle adjustment (manual)
• Pan range: 0° to 348°
• Tilt: 0° to 120°
• Image and Video Image
• Image settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White balance
• Prevention of infrared light overexposure
• HLC adjustable via client software
• Image enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52dB
• Image parameter switch
• Privacy mask: up to 4 masks
• ROI: 1 Region
• OSD settings
• Video
• Max. Resolution: 2560 x 1440
• Main Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Main Stream Resolution:
• 2560×1440
• 2304×1296
• 2048×1280
• 1920×1080
• Sub-Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Sub-Stream Resolution: 640×480, 352×288, 320×240
• Bitrate control: CBR, VBR
• Video compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main profile/High profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main profile
• H.265+: Compatible with Main Stream
• Main Stream video bitrate: 256 Kbps to 4 Mbps
• Sub-Stream video bitrate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M Adaptive Ethernet Port
• Audio Input: Built-in microphone
• Audio Output: Built-in speaker
• Reset button
• Power: DC power port
• Internal storage: Built-in memory card slot, compatible with MicroSD card, up to 256 GB
• Built-in microphone: records everything happening within a 15-foot radius of the camera
• Built-in speaker
• Features Network
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: ONVIF
• Simultaneous live view 3 main streams and 3 sub-streams
• Web browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, Digest authentication
• Audio
• Audio Communication: Two-way Audio
• Audio Input
• Audio Output
• Audio Compression
• Audio sampling frequency: 8KHz
• Ambient noise filtering
• Audio bitrate: 64 Kbps (G.711 law)
• Alarm
• Detection:
• Area intrusion detection
• Line crossing detection,
• Person detection
• Basic Event
• Motion detection
• Video tampering detection
• Exception (illegal login)
• Alarm linkage
• Video recording with memory card
• Push message
• Sound warning
• Flashing white light
• Output notification: push message
• Power
• Power supply:
• 12V DC ± 5%
• 5.5 mm coaxial power plug
• PoE (802.3af/at, class 4)
• Power consumption:
• 12V DC: Max 14W
• PoE: Class 4
• Dimensions and weight
• 120 × 172 × 198 mm
• 0.62 Kg
• Contains
• VIGI network camera

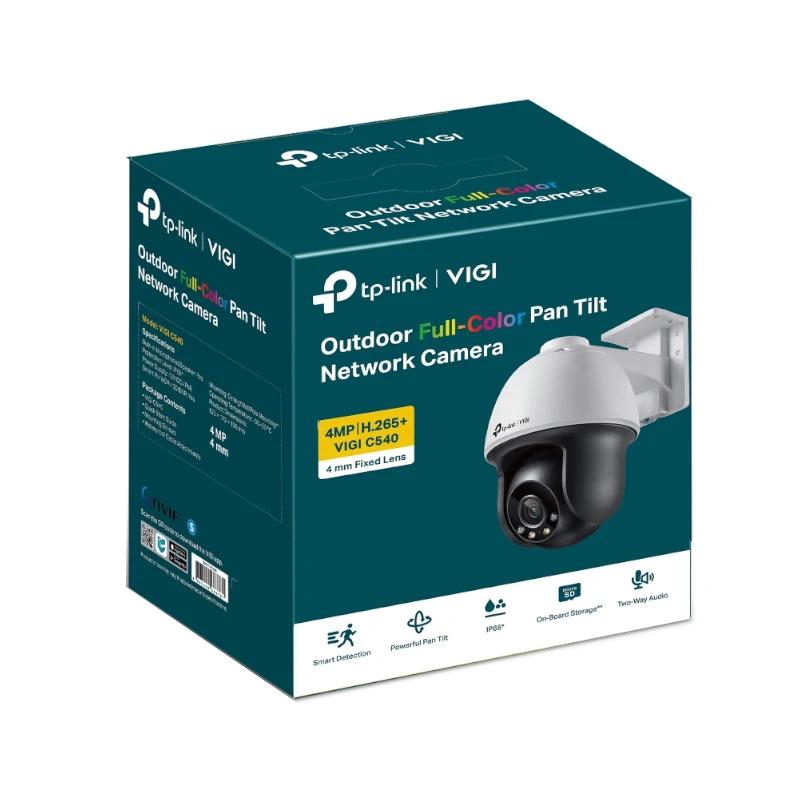

• Quick start guide
• Waterproof cable accessories
• Mounting accessories
• Revision date 07-10-2024 by RTY
