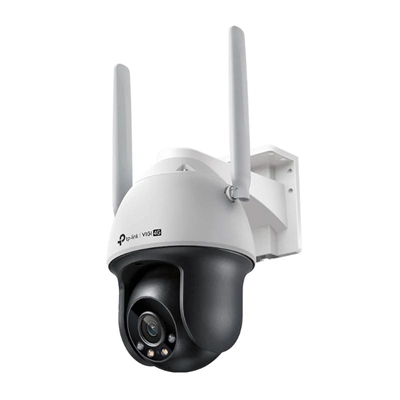

VIGI PT IP Camera C540-4G 4MP Plastic Full-Colour

Discover the Vigi IP Chamber PT C540-4G 4MP of TP-Link , an advanced surveillance solution that offers images in full-color and a 4MP resolution for exceptional clarity. Designed for outdoor, this camera guarantees security 24 hours a day, allowing you to monitor your spaces from anywhere. time, ideal for outdoor use.

Technical Specifications

• 4MP high definition: The camera comes with 4MP, more than enough pixels to capture some of the more subtle details.
• 24 hours in full color: Enjoy sharp and vibrant monitoring 24 hours a day, even in total darkness.
• 4G mobile network: Enjoy hassle-free installation and easy monitoring in places without Internet.
• 360° surveillance: Cover all corners and eliminate blind spots.
• Classification of people and vehicles: Distinguishes people and vehicles from other objects, so you receive more accurate event notifications.
• Smart detection: Actively detects anomalous events, such as intrusion in an area or line crossing, and sends you instant notifications.
• Automatic tracking: Automatically tracks people or vehicles of interest and provides uninterrupted and longer-duration video.
• Active defense: Instantly alert potential intruders with sound and light when abnormal events occur.
• Two-way audio: Thanks to compatibility with voice intercoms, have two-way conversations while viewing the recording from anywhere.
• H.265+: Compresses video size without sacrificing video quality, easing network load and saving disk space.
• IP66 waterproof: IP66 rated for stable outdoor performance.
• Remote management: Take full control of your security anytime and anywhere in the VIGI app or PC client.
• Internal storage: Supports internal storage of up to 512GB (SD card slot)*.
• Brand VIGI
• Model VIGI C540-4G(4mm)
• Camera – Image Sensor: 1/3.06” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
• Day/Night Switch: Unified/ Scheduled/ Auto
• Lens – Lens Type: Fixed focal length
• Focal Length: 4 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 80°
• Vertical FOV: 43°
• Diagonal FOV: 94°
• Lens Mount: M12*P 0.5
• DORI Distance
• Detection: 80 m
• Observe: 33 m
• Recognize: 16 m
• Identify: 8 m
• Illumination
• Infrared LED:
• Quantity: 2
• Range: 30m
• Wavelength: 850 nm
• Quantity of white LEDs: 2
• Range: 30m
• Lighting control on/off: Automatic/Scheduled/Always on/Always off
• PTZ
• Horizontal/Vertical Range: Pan: 0° to 348°, Tilt: 0° to 120°
• Horizontal/Vertical Speed
• Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s
• Tilt Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s
• Manual control speed: configurable from 8° to 35°/s
• Presets: 300
• Patrol Scan: 8 patrols, up to 8 presets for each patrol
• Power-off Memory: Automatic restoration to the previous state of the PT and lens after a power outage
• Park Action: Schedule; Patrol scan
• 3D positioning
• Angle adjustment (manual)
• Range:
• Pan: 0° to 348°
• Tilt: 0° to 120°
• Image and Video Image
• Image settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White balance
• Software client adjustable HLC
• Rotation (90°/270°)
• Image enhancement: BLC/3D DNR/HLC/SmartIR
• Wide dynamic range: 120 dB
• SNR: ≥ 52dB
• Image parameter switch
• Privacy mask: up to 4 masks
• ROI: 1 Region
• OSD settings
• Video
• Max. Resolution: 2560 X 1440
• Main Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Main Stream Resolution:
• 2560×1440
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Sub-Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Sub-Stream Resolution: 848×480, 704×576, 640×480, 640×360, 320×240
• Bitrate control: CBR, VBR
• Video compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: High profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main profile
• H.265+: Compatible with Main Stream
• Main Stream video bitrate: 256 Kbps to 3 Mbps
• Sub-Stream video bitrate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M Adaptive Ethernet Port, PoE
• Reset button
• Power: DC power port
• Internal storage: Built-in memory card slot, compatible with MicroSD card, up to 512 GB
• Built-in microphone: records everything happening within a 15-foot radius of the camera
• Built-in speaker
• Features Network
• Protocol:
• TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP
• DNS
• RTSP
• NTP
• UPnP UDP
• SSL/TLS
• ONVIF
• API: ONVIF
• Simultaneous live view: 3 main streams and 3 sub-streams
• Client: VIGI App, VIGI Security Manager, Web UI
• Web browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, implicit authentication
• 4G
• Standard: LTE-TDD/LTE-FDD/WCDMA
• SIM card type: Nano SIM
• Category: 4
• Frequency:
• LTE-FDD: B 1/3/5/7/8/20/28
• LTE-TDD: B 38/40/41
• WCDMA: B 1/5/8
• Audio
• Audio Communication: Two-way audio
• Audio input
• Audio output
• Audio compression
• Audio sampling frequency: 8KHz
• Ambient noise filtering
• Audio bitrate: 64 Kbps (G.711 law)
• Alarm
• Smart event
• Classification of people and vehicles
• Intrusion detection
• Line crossing detection
• Region entering detection
• Region exiting detection
• Abandoned object detection
• Object removal detection
• Person detection
• Vehicle detection
• Basic detection:
• Motion detection (enhanced with person and vehicle classification for more accurate alerts)
• Video tampering detection
• Exception (illegal login)
• Exit notification: Push message
• Power
• Power supply:
• 12V DC /1A
• Coaxial power plug
• Dimensions
• 120 × 182 × 201 mm (excluding antennas)
• 0.69 Kg

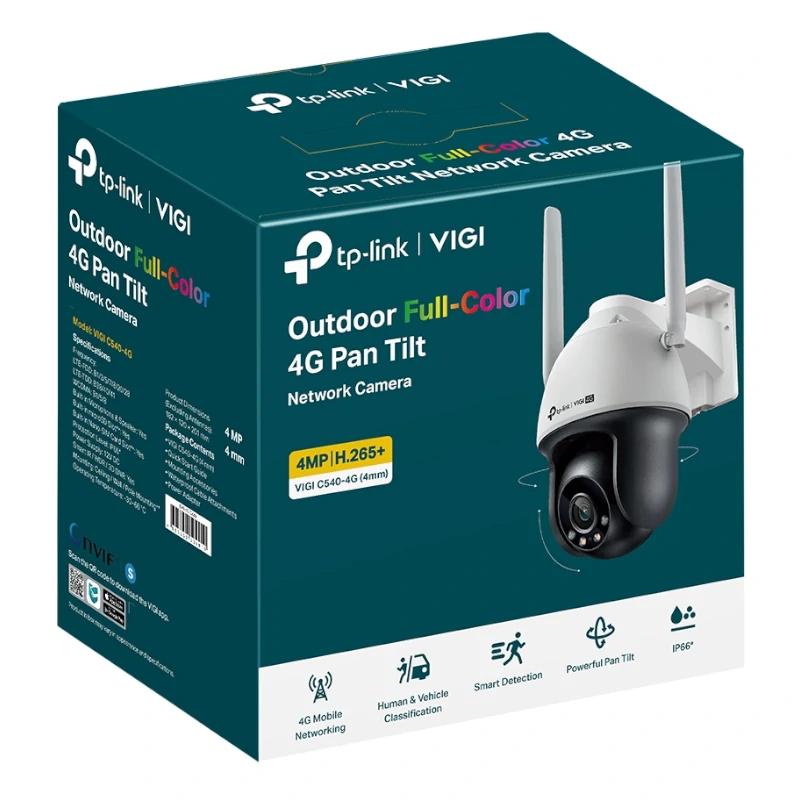

• Contains
• VIGI network camera
• Quick start guide
• Waterproof cable accessories
• Mounting accessories
• Review date 04-10-2024 by RTY
