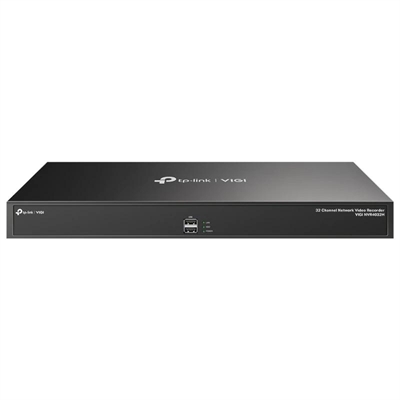

VIGI NVR4032H IP Recorder Rack 04 HDD 32 Channels

Discover the Vigi NVR4032H IP Rack Record TP-Link , an advanced solution for video surveillance management. With capacity for 32 channels and support for 4 hdd , this digital recorder offers exceptional performance and expandable storage, ideal for any security system. Ensures the protection of your facilities with state -of -the -art technology.

Technical Specifications

• Brand VIGI
• Model VIGI NVR4032H
• Video and Audio – IP video input: 32 channels
• Input bandwidth: 320 Mbps
• Output bandwidth: 320 Mbps
• HDMI output resolution: 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
• VGA output resolution: 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
• Video output mode: Simultaneous HDMI/VGA output
• Multi-view display: 1/4/6/8/9/16/25/32/36
• Decoding – Audio Compression: G.711A/G.711U/G.726
• Decoding format: H.265+/H.265/ H.264+/H.264
• Video compression: H.265+/H.265/ H.264+/H.264
• Recording resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback: 16 channels
• Capacity: 16 channels at 1080p (30 fps), 8 channels at 4MP (30 fps), 4 channels at 8MP (30 fps)
• Alarm – General Alarm:
• Motion detection
• Video tampering
• Intrusion detection
• Line crossing detection
• Anomaly Alarm
• Video loss
• Offline and IP conflict
• Disk exception
• Login
• Exception
• Fan exception
• Alarm linkage
• Recording
• White light alarm
• Buzzer
• Log
• Sound alarm

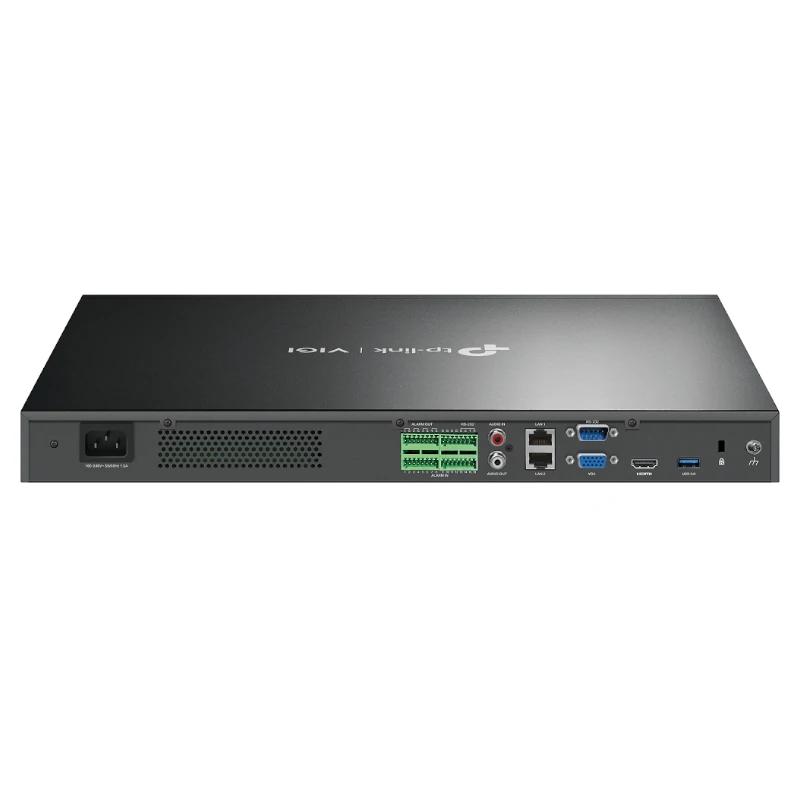

• Interfaces – Network interface: 2 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet
• USB Interface: USB interface
• Audio Interface: 1, Audio input; 1, Audio output
• Alarm In/Out: 16/4
• Serial Interface: 1, RS232
• Power: 1× AC Jack
• Reset Button: 1
• HDMI: 1
• VGA: 1
• Network Features
• Protocol: UPnP (Plug and Play), NTP (Network Timing)
• Mobile phone access: Android, iOS
• Input bandwidth: 320 Mbps
• Output bandwidth: 320 Mbps
• Web browser: Chrome (57+), Firefox (52+), Edge (91+)
• Interoperability: ONVIF, CGI
• Log Management
• Recording mode:
• Manual recording
• Scheduled recording
• Motion detection recording
• Playback mode:
• Instant playback
• Normal playback
• Tag playback
• Event playback
• Backup mode
• Normal backup
• Clip backup
• Playback function:
• Play
• Pause
• Stop
• Fast forward
• Rewind
• Frame by frame playback
• Full screen
• Videoclip
• Export clip
• Digital zoom
• Lock recording
• Audio On/Off
• Power
• External Power Supply: 100-240 VAC, 50 to 60HZ, 1.5A
• Power consumption:
• 5 W (without disk)
• 48 W (with disk)
• Dimensions and weight
• 440 × 330 × 44 mm
• 4.0 Kg
• Contains
• VIGI network video recorder
• Mouse
• Installation guide
• Power cable, hard drive power cables, hard drive data cables, and terminal blocks
• Mounting brackets, screws, and rubber feet
• Review date 07-10-2024 by RTY
