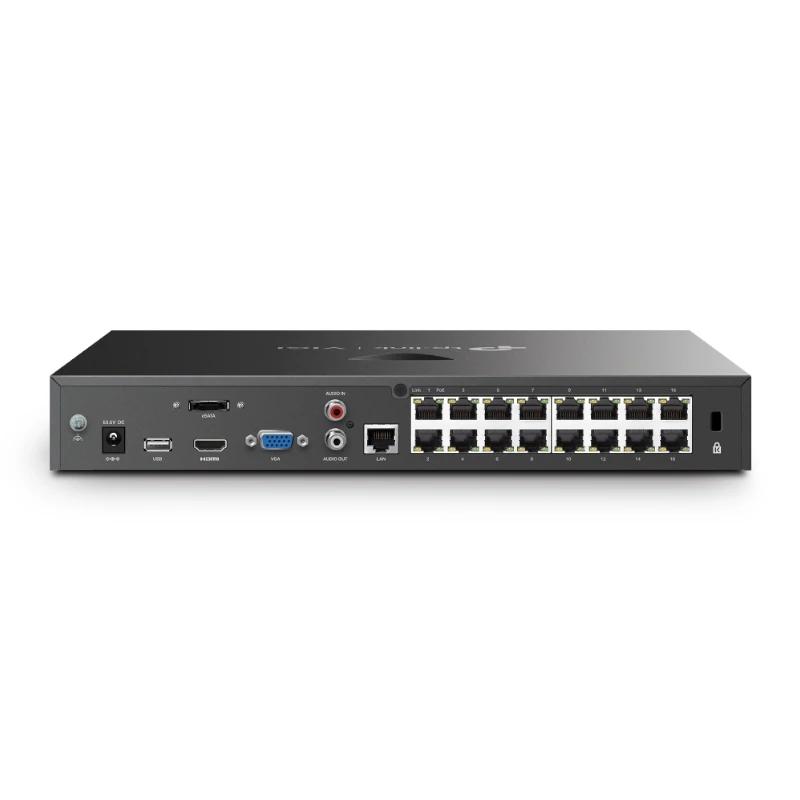

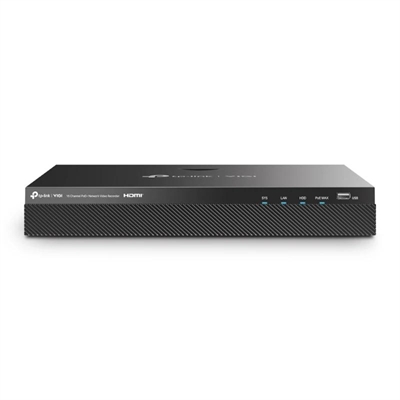

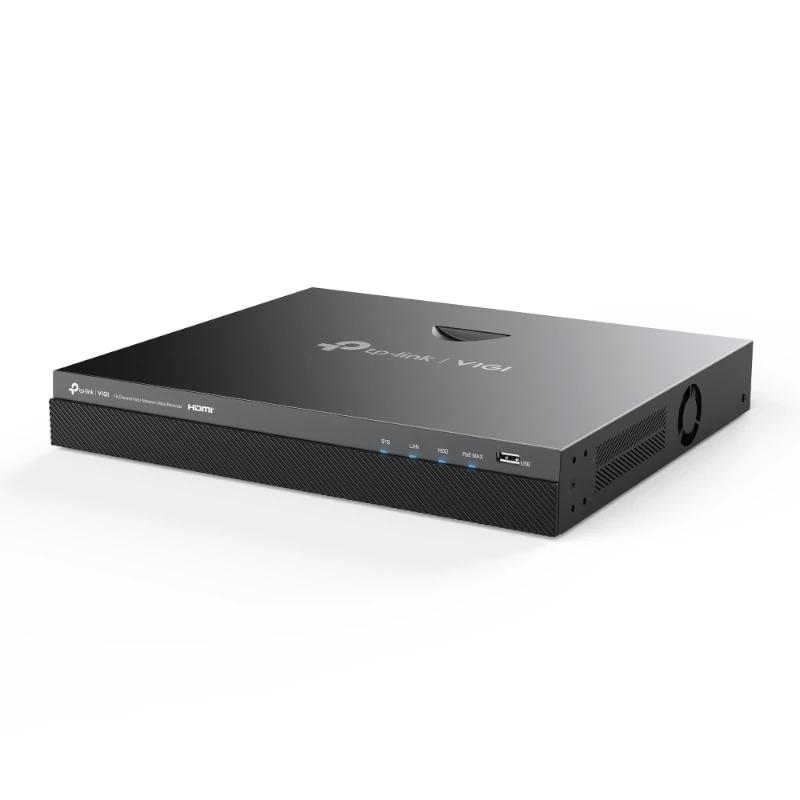

VIGI NVR2016H-16MP IP Rack Recorder 02 HDD 16 C Po

Discover the Vigi NVR2016H-16MP , a high-definition IP recorder designed to offer exceptional performance in digital surveillance. With capacity for 16 cameras , this device is ideal for businesses and homes that seek advanced security. Its Rack design allows easy integration in data centers and network cabinets, while its compatibility with two hard drives guarantees broad and safe storage.

Technical Specifications

• Brand VIGI
• Model VIGI NVR2016H-16MP
• Video and Audio – IP Video Input: 16 channels
• Input bandwidth: 80 Mbps
• Output bandwidth: 60 Mbps
• HDMI output resolution: 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
• VGA output resolution: 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
• Video output mode: Simultaneous HDMI/VGA output
• Multi-view display: 1/4/6/8/9/16
• Decoding – Audio Compression: G.711A/G.711U/G.726
• Decoding format: H.265+/H.265/ H.264+/H.264
• Video compression: H.265+/H.265/ H.264+/H.264
• Recording resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback: 16 channels
• Capacity:
• 25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
• 30fps: 4-ch @ 3MP, 2-ch @ 5MP
• Alarm – General Alarm:
• Motion detection
• Video tampering
• Line crossing detection
• Intrusion detection
• Region entering detection
• Region exiting detection
• Abandoned/removed object detection
• Vehicle detection
• Human detection
• Smart frame
• Anomaly alarm
• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
• Fan Exception
• Alarm linkage
• Recording
• White light alarm
• Buzzer
• Log
• Sound alarm
• Interfaces – Network interface: 1 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet
• USB Interface: 1 x front 2.0 port and 1 x rear 2.0 port
• Audio Interface: 1, Audio input; 1, Audio output
• Power: 1× DC Jack
• Reset Button: 1
• eSATA: 1
• HDMI: 1
• VGA: 1
• PoE
• Standards: Complies with 802.3at/af
• Interface: 1-16, self-adaptive RJ-45 10/100 Mbps Ethernet interface
• PoE budget: 140 W available for all PoE+ ports, 30 W maximum per port
• HDD Features
• SATA: 2 x SATA Interfaces
• Capacity: Up to 10 TB capacity for each hard drive
• Network
• Protocol: UPnP (Plug and Play), NTP (Network Timing)
• Mobile phone access: Android, iOS
• Web browser: Chrome (57+), Firefox (52+), Edge (91+)
• Interoperability: ONVIF, CGI
• Log Management
• Recording mode:
• Manual recording
• Scheduled recording
• Motion detection recording
• Playback mode:
• Instant playback
• Normal playback
• Tag playback
• Event playback
• Backup mode
• Normal backup
• Clip backup
• Playback function:
• Play
• Pause
• Stop
• Fast forward
• Rewind
• Frame by frame playback
• Full screen
• Videoclip
• Export clip
• Digital zoom
• Lock recording
• Audio On/Off
• Power
• External Power Supply: 53.5V DC/3.37A
• Power consumption:
• 6.2 W (without disk)
• 40 W (with disk)
• Dimensions and weight
• 330 × 285 × 45 mm
• 2.1 Kg
• Contains
• VIGI network video recorder
• Power adapter
• Hard drive screws
• Mouse
• Quick installation guide
• Review date 07-10-2024 by RTY
