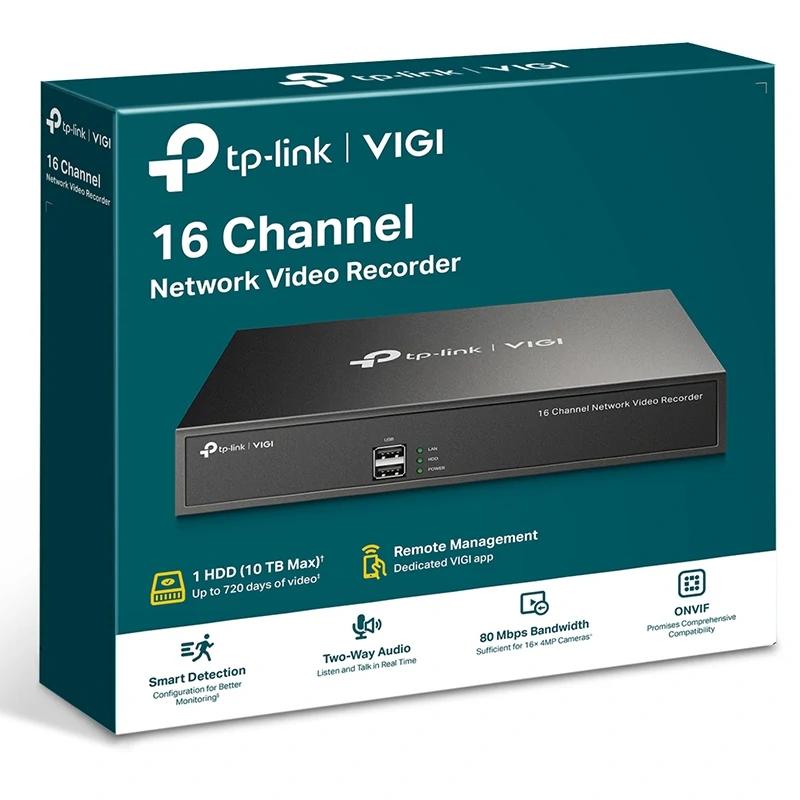

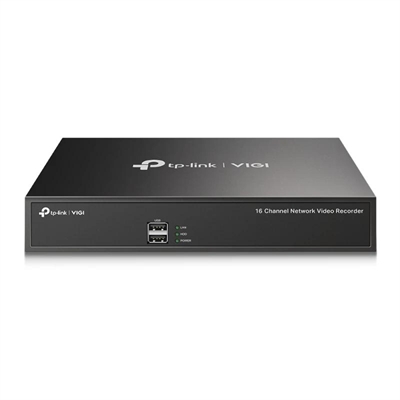

VIGI NVR1016H IP Rack Recorder 01 HDD 16 Channels

Discover the Vigi NVR1016H , a high quality IP recorder designed by TP-Link . With capacity for 16 channels and support for a hard drive (HDD), this device is ideal for video surveillance systems in commercial and residential environments. Its easy installation and management make it a perfect option for those who seek security and reliability. Immediate.

Technical Specifications

• Continuous recording 24/7. The 10TB of secure storage for connected camera videos allows for quick and easy access.
• Live Viewing of 16 channels. The sharp image definition of up to 8MP and a 16-channel display ensure you capture every detail from all angles.
• Fast Search and Playback. Easily find recordings by date, event types, and tags. Play back at variable speeds to quickly review footage.
• Remote Monitoring. The dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
• H.265+ Video. Saves storage space and bandwidth without sacrificing video image quality. This can help reduce monitoring costs.
• ONVIF Compatibility. VIGI cameras easily integrate into security systems from other brands.
• 1 HDD Interface (up to 10 TB). Store up to 10 TB (720 days of video) on a SATA hard drive, keeping your data storage secure locally.
• Two-way Audio. Allows communication through the built-in microphone and speaker in the camera while viewing the video.
• Brand VIGI
• Model VIGI NVR1016H
• Video and Audio – IP Video Input: 16 channels
• Input bandwidth: 80 Mbps
• Output bandwidth: 60 Mbps
• HDMI Output Resolution: 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output Resolution: 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode: Simultaneous HDMI/VGA Output
• Multi-view Display: 1/4/6/8/9/16
• Decoding – Audio Compression: G.711A/G.711U/G.726
• Decoding Format: H.265+/H.265/ H.264+/H.264
• Video Compression: H.265+/H.265/ H.264+/H.264
• Recording Resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Live View/Playback Resolution:
• 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/
• 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback: 16-Channel
• Capacity: 1-ch @ 8 MP, 2-ch @ 4 MP, 4-ch @ 2 MP
• Alarm – General Alarm
• Motion Detection
• Video Tampering
• Line Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Abandoned/Removed Object Detection
• Vehicle Detection
• Human Detection
• Anomaly Alarm
• Video Loss
• IP Conflict and Disconnection
• Disk Exception
• Login Exception
• Alarm Linkage
• Recording
• White Light Alarm
• Buzzer
• Log
• Sound Alarm

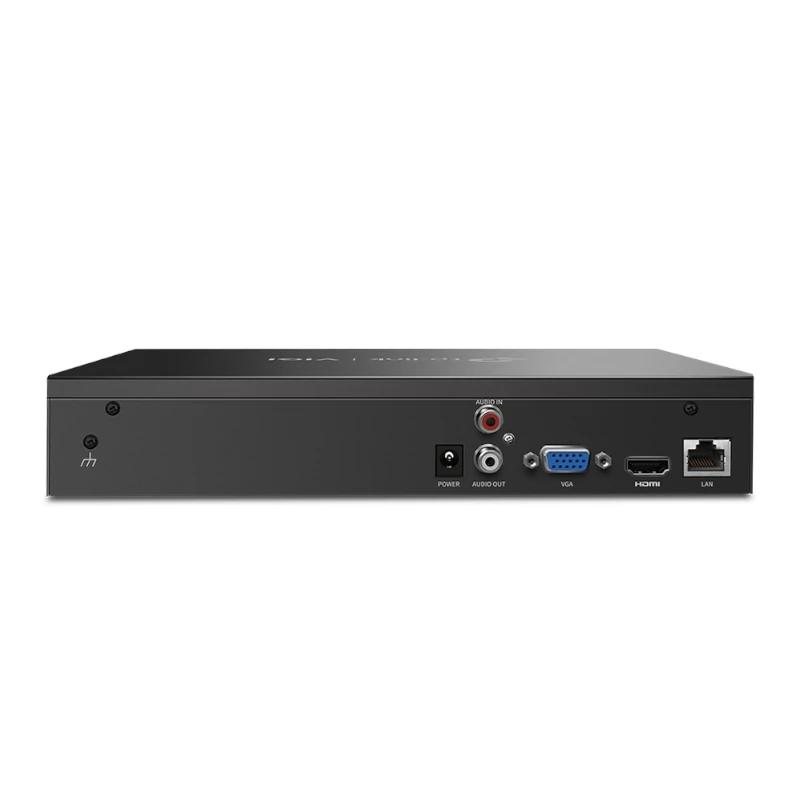

• Interfaces – Network Interface: 1 x RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• USB Interface: 2 × USB 2.0
• Audio Interface: 1, Audio In; 1, Audio Out
• Power: 1 × DC Connector
• Reset Button: 1
• HDMI: 1
• VGA: 1
• SATA: 1 SATA Interface
• Capacity: Up to 10 TB
• Network Features
• Protocol: TCP/IP, DHCP, DNS, NTP, UPnP
• Mobile Phone Access: Android, iOS
• Input Bandwidth: 80 Mbps
• Output Bandwidth: 60 Mbps
• Web Browser: Chrome (57+), Firefox (52+), Edge (91+)
• Interoperability: ONVIF, CGI
• Log Management
• Recording Mode:
• Manual Recording
• Scheduled Recording
• Motion Detection Recording
• Playback Mode:
• Instant Playback
• Normal Playback
• Tag Playback
• Event Playback
• Backup Mode:
• Periodic Backup
• Clip Backup
• Playback Function:
• Play
• Pause
• Stop
• Fast Forward
• Rewind
• Frame-by-Frame Playback
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off
• Power
• External Power Supply: 12V DC/1.5 A
• Dimensions and Weight
• 246.2 × 148.2 × 45 mm
• 0.6 Kg
• Contains
• VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Quick Installation Guide
