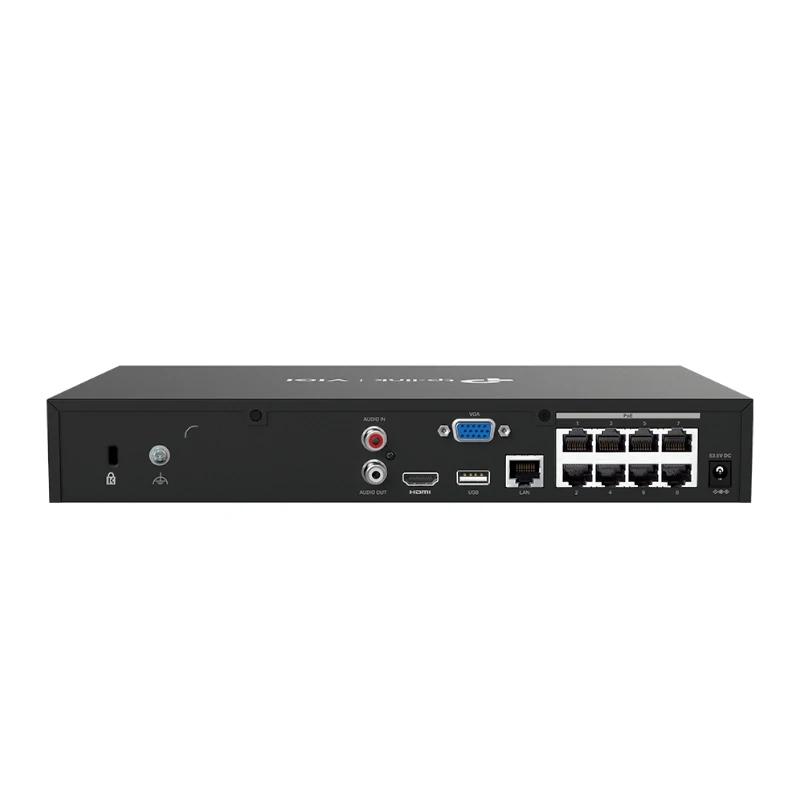

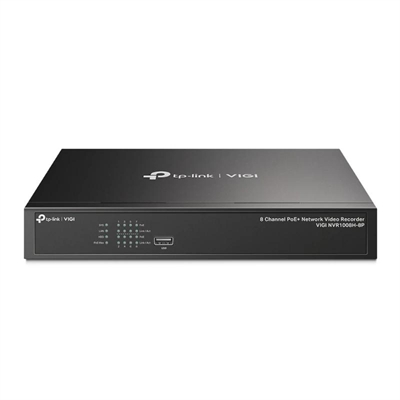

VIGI NVR1008H-8P IP Recorder Rack 01 HDD 08 C

Discover the Vigi NVR1008H-8P , an advanced TP-Link IP recorder designed to offer an efficient and high quality video surveillance solution. With the ability to connect up to 8 cameras, this device is ideal for companies and homes that seek continuous security and monitoring. high definition.

Technical Specifications

• HDMI 4K Video Output and 16MP Decoding Capability. Image definition of up to 8MP and an 8-channel display ensure capturing every detail from all angles 2.
• Easy Installation with PoE+. Easily connect and power the VIGI camera via RJ45 cable that transmits data and power, without the need for any power adapter.
• Simultaneous Playback of 8 Channels. Play the signal from up to 8 cameras at the same time. Increase playback speed and find events to review each video more easily and quickly.
• H.265+ Video. Saves storage space and bandwidth without sacrificing video image quality. This can help reduce monitoring costs.
• ONVIF Compatibility. VIGI cameras easily integrate into security systems from other brands.
• Plug & Play. VIGI cameras are automatically added to the NVR and activated immediately.
• Continuous Recording 24/7. The 10TB of secure storage for connected camera videos allows for quick and easy access.
• Simple and Remote Control. The VIGI app and VIGI security manager have been developed to monitor various cameras from anywhere, facilitating access and control.
• Flexible Installation. Choose the appropriate installation method, housing your NVR in a rack or placing it on or under a desk for added convenience.
• Two-way Audio. Allows communication through the built-in microphone and speaker in the camera while viewing the video.
• VIGI Brand
• VIGI NVR1008H-8P Model
• Decoding – Decoding format: H.265+/H.265/ H.264+/H.264
• Live/Playback resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback: 8 Channels
• Capacity: 2 channels at 8 MP, 4 channels at 4 MP, 8 channels at 2 MP
• Network – Protocol: TCP/IP, DHCP, DNS, NTP, UPnP
• Input bandwidth: 80 Mbps
• Output bandwidth: 60 Mbps
• Interfaces – Network Interface: 1 auto-adaptive RJ-45 10/100 Mbps Ethernet interface
• USB Interface: 2 USB 2.0
• HDD – SATA: 1 SATA Interface
• Capacity: Up to 10 TB
• Video/Image – Video input: 8-channel IP video input, resolution up to 8 MP
• Recording resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• HDMI output resolution: 1 Channel, Resolution: 3840×2160/30Hz,1920×1080/60Hz,1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz,1024×768/60Hz, 1280×720/60Hz
• VGA output resolution: 1 Channel, Resolution: 1920×1080/60Hz,1680×1050/60Hz,1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz,1024×768/60Hz,
• General Features – Operating temperature: -10–55 °C

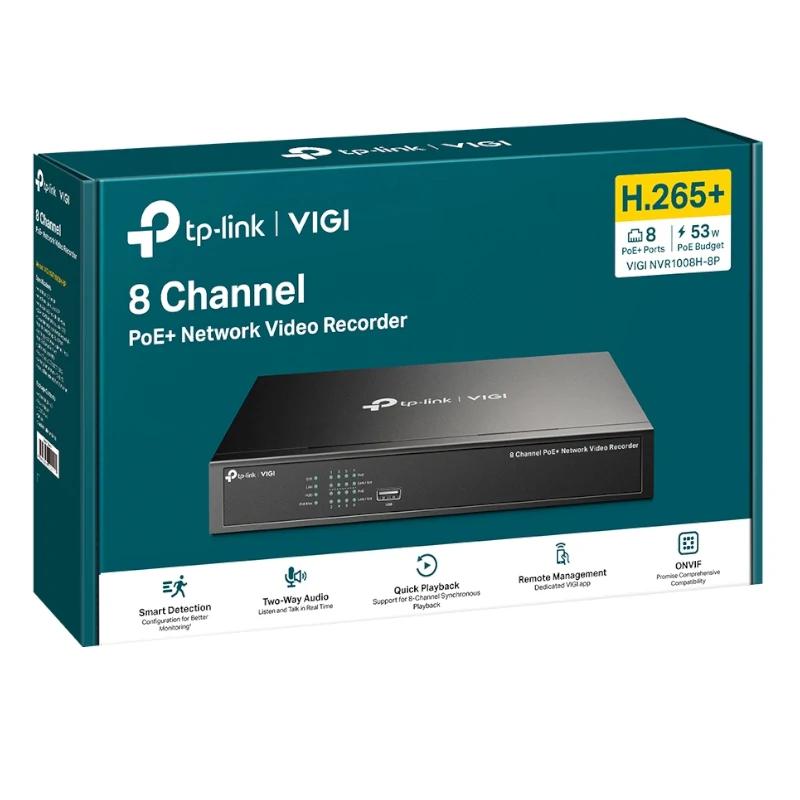

• Package Contents:
• VIGI Network Video Recorder
• Power adapter
• HDD screws
• Mouse
• Quick installation guide
• Dimensions: 294 × 180 × 44 mm
• PoE:
• Standard: 802.3af/at
• PoE Ports: Ports 1-8
• PoE Budget: 53 W
• External Power Supply: 53.5V DC/1.31 A
• Power consumption:
• 2.38 W (without disk)
• 12.94 W (with disk)
