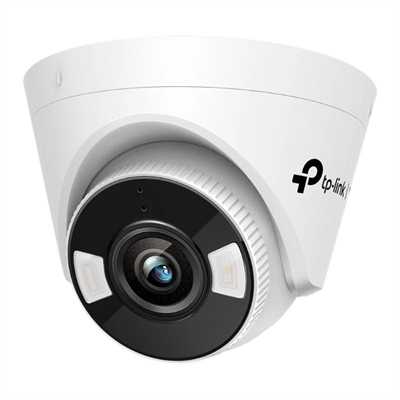

VIGI IP Turret Camera C450 5MP Plastic Full-Color

Technical Specifications

• Brand VIGI
• Model VIGI C450(2.8mm)
• Camera – Image Sensor: 1/2.7” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/ Scheduled/ Auto
• Lens – Lens Type: fixed focal length
• Focal Length: 2.8 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 109°
• Vertical FOV: 57°
• Diagonal FOV: 128°
• Lens Mount: M12*P 0.5
• DORI Distance
• Detection: 64 m
• Observation: 27 m
• Recognition: 13 m
• Identification: 6 m
• Illumination
• Number of Infrared LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Number of White LEDs: 2
• Range: 30m
• Lighting Control On/Off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevents overexposure to infrared light
• HLC adjustable via client software
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: 120 dB
• Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
• SNR: ≥ 52dB
• Image Parameter Switch
• Privacy Mask: up to 4 masks
• ROI: 1 Region
• OSD Configuration
• Video
• Max. Resolution: 2880 X 1620
• Main Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Main Stream Resolution:
• 2880×1620
• 2688×1520
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Sub-Stream Resolution: 704×576, 640×480, 352×288, 320×240
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Bit Rate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main Profile
• H.265+: Compatible with Main Stream
• Main Stream Video Bit Rate: 256 Kbps to 6 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M Adaptive Ethernet Port, PoE
• Reset Button
• Power: DC Power Port
• Internal Storage: Built-in memory card slot, compatible with MicroSD card, up to 256 GB
• Built-in Microphone: records everything happening within a 15-foot radius of the camera
• Built-in Speaker
• Features Network
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: Open Network Video Interface (Profile S)
• Simultaneous Live View 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, Web UI
• Web Browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, implicit authentication
• Audio
• Audio Communication: Two-way Audio
• Audio Input
• Audio Output
• Audio Compression
• Audio Sampling Rate: 8KHz
• Ambient Noise Filtering
• Audio Bit Rate: 64 Kbps (G.711 law)
• Alarm
• Intelligent classification of people and vehicle events
• Area intrusion detection
• Line crossing detection
• People detection
• Vehicle detection
• Region entry detection
• Region exit detection
• Abandoned object detection
• Object removal detection
• Loitering detection
• Basic Detection:
• Motion detection
• Video tampering detection
• Exception (illegal login)
• Scene change detection
• Alarm Linkage: Video recording with memory card, push message, flashing white light
• Output Notification: Push message
• Power
• Power Supply:
• 12V DC ± 5%, Max. 9 W
• 5.5 mm coaxial power plug.
• PoE: 802.3af/at, class 0, max. 10.5W
• Dimensions and Weight
• Φ123×84 mm
• 0.24 g
• Contains
• VIGI Network Camera
• Quick Start Guide
• Mounting Accessories
