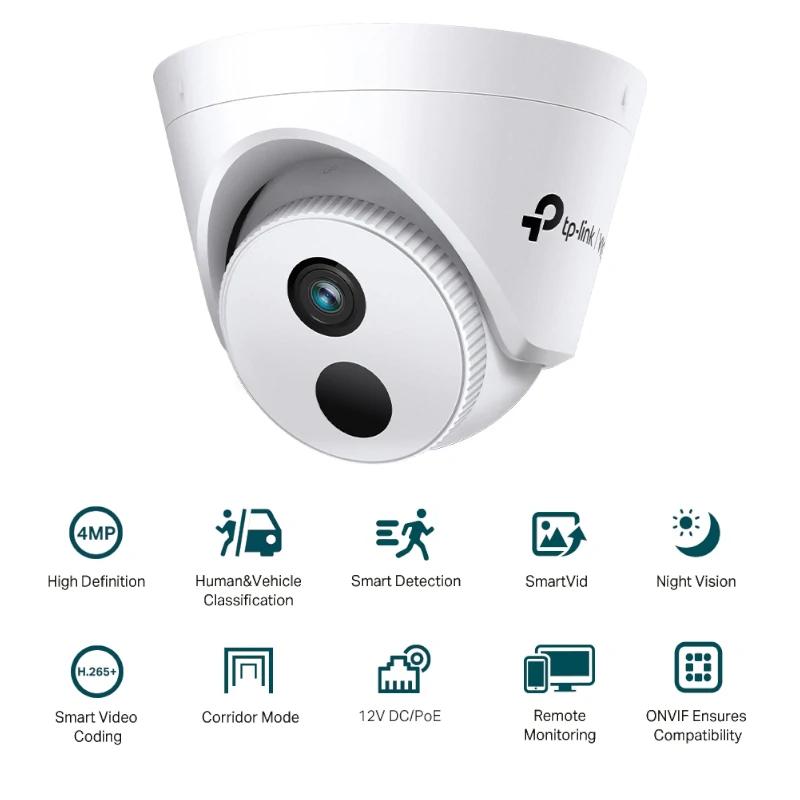

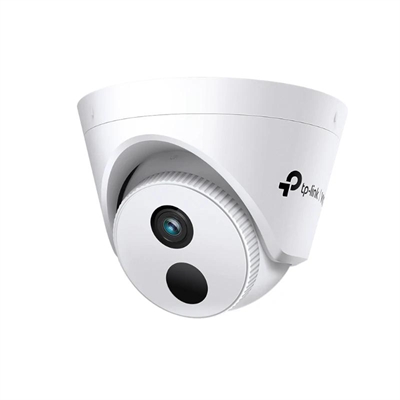

VIGI IP Turret Camera C440I 4MP Plastic IR 2.8mm

Discover the Vigi IP Chamber Turret C440i of TP-Link, an advanced safety solution with 4MP image quality and night vision thanks to its IR technology. Ideal for interior and exterior surveillance, this camera offers a wide viewing angle thanks to its 2.8mm

• Exceptional image quality with 4MP resolution.
• Efficient night vision with IR technology. Time.

Technical Specifications

• Brand VIGI
• Model VIGI C440I(2.8mm)
• Camera – Image Sensor: 1/3″ Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: Color: 0.01 Lux; 0 Lux with IR
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/Scheduled/Auto
• WDR: DWDR
• IR Working Distance: 30m
• Lens – Type: Fixed focal lens
• Focal Length: 2.8 mm
• Aperture: F2.2
• FOV:
• Horizontal FOV: 88.8°
• Vertical FOV: 48.9°
• Diagonal FOV: 106.5°
• Lens Mount: M12
• DORI Distance
• Detection: 60m
• Observation: 25 m
• Recognition: 12 m
• Identification: 6 m
• Illumination
• Number of Infrared LEDs: 1
• Range: 30m
• Wavelength: 850 nm
• Light Control On/Off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevents overexposure to infrared light
• HLC adjustable via client software
• Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: WDR
• SNR: ≥ 52dB
• Image Parameter Switch
• Privacy Mask: Up to 4 masks
• ROI: 1 Region
• OSD Configuration
• Video
• Max. Resolution: 2560 × 1440
• Main Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Main Stream Resolution:
• 2560×1440
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Sub-Stream Resolution: 640×480, 352×288, 320×240
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Bit Rate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Supported Main Stream
• H.265 Type: Main Profile
• H.265+: Supported Main Stream
• Main Stream Video Bit Rate: 256 Kbps to 4 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x Adaptive RJ45 10/100M Ethernet Port
• Power: DC Power Port
• Network Features
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: ONVIF
• Simultaneous Live View: 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication
• Network Storage: NAS (NFS, SMB/CIFS)
• Alarm
• Intelligent classification of people and vehicle events
• Area intrusion detection
• Line crossing detection
• Person detection
• Vehicle detection
• Region entry detection
• Region exit detection
• Abandoned object detection
• Removed object detection
• Basic detection:
• Motion detection
• Video tampering detection
• Exception (illegal login)
• Alarm Link: Push message
• Output Notification: Push message
• Power
• Power Supply:
• 12V DC ± 5%, Max. 5 W
• 5.5 mm coaxial power plug.
• PoE: 802.3af/at, class 0
• Dimensions and Weight
• 123 × 123 × 83 mm
• 0.19 kg
• Contains
• VIGI Network Camera
• Quick Start Guide
• Mounting Accessories
• Review Date 02-10-2024 by RTY
