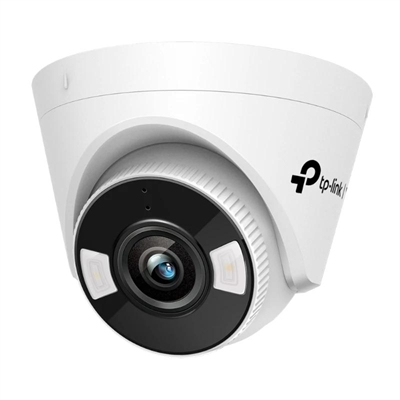

VIGI IP Turret Camera C440 4MP Plastic Full-Color

Discover the Vigi IP Chamber Turret C440 of TP-Link, an advanced surveillance solution with 4MP resolution and full-color technology that guarantees clear and clear images even in low light conditions. Ideal to protect your home or business, this camera combines modern design and upper functionality.

Technical Specifications

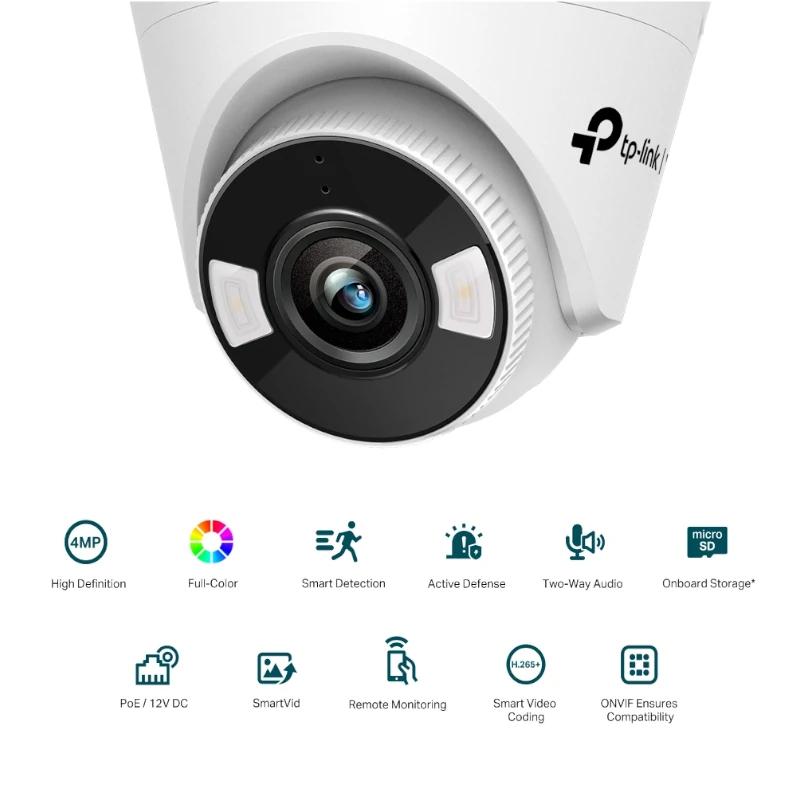

• Super high definition of 4MP. The VIGI C440 camera captures sharp, high-quality images at a resolution of up to 4MP.
• Full-color night vision. Records videos with high image quality and sharp colors even at night.
• Classification of humans and vehicles. The integrated AI algorithms analyze the image distinguishing humans and vehicles from other objects.
• Intelligent detection. Receive notifications when someone accesses restricted areas, covers the camera, and when objects are removed or left behind.
• H.265+: saves storage space and bandwidth without sacrificing video image quality. This can help reduce monitoring costs.
• PoE and 12V DC power supply: choose the method that best suits your security installation.
• Flexible management: take full control of your security through three management methods: NVR UI, VIGI app, and VIGI Security Manager.
• Brand VIGI
• Model VIGI C440(2.8mm)
• Camera – Image Sensor: 1/3 Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0 lux with IR/white light
• Mechanism: Day/Night: IR Cut Filter
• Day/Night Switch: Unified/Scheduled/Auto
• Lens – Fixed focal length lens type
• Focal length: 2.8 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 102°
• Vertical FOV: 55°
• Diagonal FOV: 122°
• Lens mount: M12
• DORI Distance
• Detection: 64 m
• Observe: 27 m
• Recognize: 13 m
• Identify: 6 m
• Illumination
• Number of infrared LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Number of white LEDs: 2
• Range: 30m
• Lighting control on/off: Automatic/Scheduled/Always on/Always off
• Image and Video Image
• Image settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White balance
• Prevents overexposure to infrared light
• HLC adjustable via client software
• Image enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52dB
• Image parameter switch
• Privacy mask: up to 4 masks
• ROI: 1 Region
• OSD configuration
• Video
• Max. Resolution: 2560 x 1440
• Main Stream frame rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Main Stream resolution:
• 2560×1440
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream frame rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Sub-Stream resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Bit rate control: CBR, VBR
• Video compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main Profile
• H.265+: Compatible with Main Stream
• Main Stream video bit rate: 256 Kbps to 4 Mbps
• Sub-Stream video bit rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M Adaptive Ethernet Port, PoE
• Reset button
• Power: DC power port
• Internal storage: Built-in memory card slot, compatible with MicroSD card, up to 512 GB
• Built-in microphone: records everything happening within a 15-foot radius of the camera
• Built-in speaker
• Features Network
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: ONVIF
• Simultaneous live view 3 main streams and 3 sub-streams
• Web browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, implicit authentication
• Audio
• Audio Communication: Two-way Audio
• Audio Input
• Audio Output
• Audio Compression
• Audio sampling rate: 8KHz
• Ambient noise filtering
• Audio bit rate: 64 Kbps (G.711 law)
• Alarm
• Smart event: Area intrusion detection, line crossing detection, person detection
• Basic event: Motion detection, video tampering detection, exception (illegal login)
• Alarm connection: Memory card Video recording, message sending, sound warning, flashing white light
• Output notification: Push message
• Power
• Power consumption:
• 12V DC: Max. 5.5 W
• PoE Class 0
• Power supply:
• 12V DC ± 5%
• 5.5 mm coaxial power plug
• PoE: 802.3af/at, class 0
• Dimensions and weight
• 123 × 83× 123 mm
• 0.25 kg
• Contains
• VIGI network camera
• Quick start guide
• Mounting accessories
