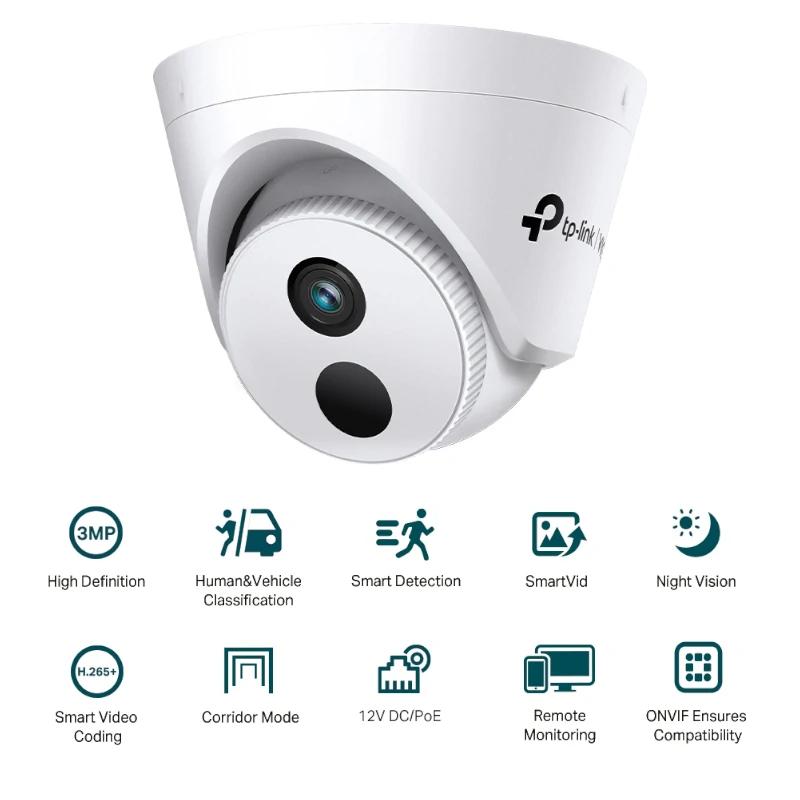

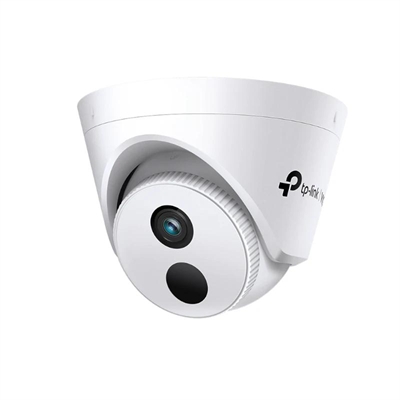

VIGI IP Turret Camera C430I 3MP Plastic IR 4mm

Discover the Vigi IP Chamber Turret C430i 3MP of tp-link , an ideal advanced security solution to protect your home or business. With a 3MP resolution and night vision, this camera offers clear and clear images both day and night. Real.

Technical Specifications

• Super high definition of 3MP. The VIGI camera captures sharp, high-quality images at a resolution of up to 2304×1296 pixels.
• Classification of people and vehicles. The integrated AI algorithms analyze the image distinguishing humans and cars from other objects.
• Intelligent detection. Receive notifications when someone accesses restricted areas, covers the camera, and when objects are removed or abandoned.
• H.265+ video. Saves storage space and bandwidth without sacrificing video image quality. This can help reduce monitoring costs.
• Intelligent image enhancement. The integrated Smart IR, WDR, 3D DNR, and Night Vision technologies process videos to improve their quality and facilitate later viewing.
• Corridor mode. Changes the aspect ratio of the image from 16:9 to 9:16 to monitor long and narrow areas.
• PoE and 12V DC power. Choose the method that best suits your security installation.
• 2.8/4 mm lens: whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open areas, the C430I comes with two different types of lenses to better suit your security needs.
• Simple Control. Manage your security system through the web user interface, NVR interface, VIGI App, or VIGI security manager.
• Brand VIGI
• Model VIGI C430I(4mm)
• Camera – Image Sensor: 1/2.8” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0.1 Lux; 0 Lux with IR/white light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/ Scheduled/ Auto
• Lens – Lens Type: Fixed focal lens
• Focal Length: 4 mm
• Aperture: F2.0
• FOV:
• Horizontal FOV: 82.5°
• Vertical FOV: 44.9°
• Diagonal FOV: 99.3°
• Lens Mount: M12
• DORI Distance
• Detection: 65 m
• Observe: 27 m
• Recognize: 13 m
• Identify: 7 m
• Illumination
• Number of infrared LEDs: 1
• Range: 30m
• Wavelength: 850 nm
• Light control on/off: Automatic/Scheduled/Always on/Always off
• Image and Video Image
• Image settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White balance
• Prevents overexposure to infrared light
• HLC adjustable via client software
• Rotation (90°/270°)
• Image enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: WDR
• SNR: ≥ 52dB
• Image parameter switch
• Privacy mask: up to 4 masks
• ROI: 1 Region
• OSD Configuration
• Video
• Max. Resolution: 2304 × 1296
• Main Stream Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• Main Stream Resolution:
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Note: If image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• Sub-Stream Resolution: 704×576,640×480, 352×288, 320×240
• Note: If image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Bit rate control: CBR, VBR
• Video compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main profile/High profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main profile
• H.265+: Compatible with Main Stream
• Main Stream video bit rate: 256 Kbps to 4 Mbps
• Sub-Stream video bit rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M Adaptive Ethernet Port, PoE
• Power: DC power port
• Network Features
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: ONVIF
• Simultaneous live view 3 main streams and 3 sub-streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, implicit authentication
• Alarm
• Intelligent classification of people and vehicle events
• Area intrusion detection
• Line crossing detection
• Person detection
• Vehicle detection
• Region entry detection
• Region exit detection
• Abandoned object detection
• Object removal detection
• Basic detection:
• Motion detection
• Video tampering detection
• Exception (illegal login)
• Alarm linkage: Push message
• Exit notification: Push message
• Power
• Power supply:
• 12V DC ± 5%
• 5.5 mm coaxial power plug
• PoE: 802.3af/at, class 0
• Power consumption:
• 12V DC: Max 5W
• PoE: Class 0
• Dimensions and weight
• 123 × 83× 123 mm
• 0.19 Kg
• Contains

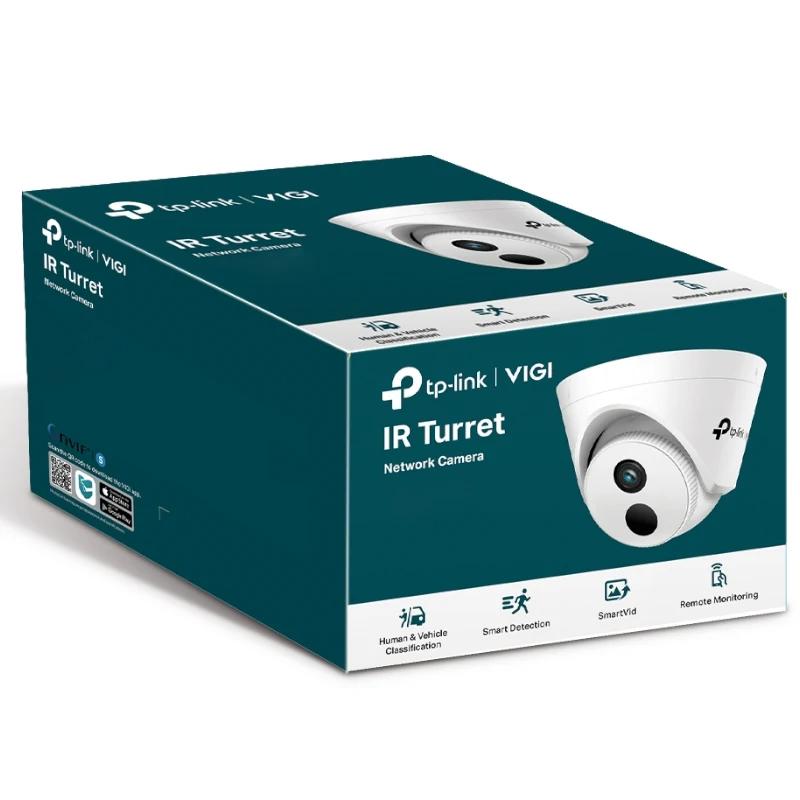

• VIGI network camera
• Quick start guide
• Mounting accessories
