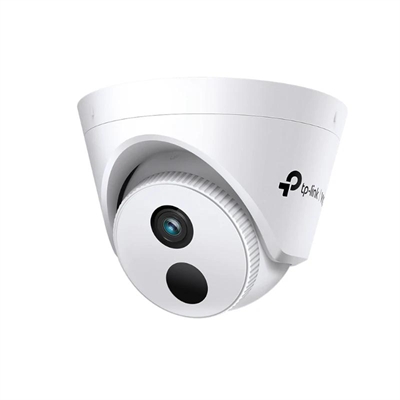

VIGI IP Turret Camera C430I 3MP Plastic IR 2.8mm

Discover the VIGI Cámara IP Turret C430I 3MP from TP-LINK, an advanced surveillance solution designed to provide you with security and peace of mind at all times. With its 2.8mm lens and IR technology, this camera delivers clear images even in low-light conditions. Ideal for both outdoor and indoor use, its plastic design ensures durability and resistance.

• 3MP resolution for clear and detailed images.
• Night vision with IR technology for 24/7 surveillance.
• Easy installation and setup via the VIGI app.
• Weather-resistant, perfect for outdoor use.

Technical Specifications

• Brand VIGI
• Model VIGI C430I(2.8mm)
• Camera – Image Sensor: 1/2.8” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0.1 Lux; 0 Lux with IR/white light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/ Scheduled/ Auto
• Lens – Lens Type: Fixed Focal Length
• Focal Length: 2.8 mm
• Aperture: F2.2
• FOV:
• Horizontal FOV: 97.8°
• Vertical FOV: 52.9°
• Diagonal FOV: 117.9°
• Lens Mount: M12
• DORI Distance
• Detection: 49 m
• Observe: 20 m
• Recognize: 10 m
• Identify: 5 m
• Illumination
• Number of Infrared LEDs: 1
• Range: 30m
• Wavelength: 850 nm
• Lighting Control On/Off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevents overexposure to infrared light
• HLC adjustable via client software
• Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: WDR
• SNR: ≥ 52dB
• Image Parameter Switch
• Privacy Mask: up to 4 masks
• ROI: 1 Region
• OSD Configuration
• Video
• Max. Resolution: 2304 × 1296
• Main Stream Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• Main Stream Resolution:
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• Sub-Stream Resolution: 704×576, 640×480, 352×288, 320×240
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Bitrate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main Profile
• H.265+: Compatible with Main Stream
• Main Stream Video Bitrate: 256 Kbps to 4 Mbps
• Sub-Stream Video Bitrate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M Adaptive Ethernet Port, PoE
• Power: DC Power Port
• Network Features
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: ONVIF
• Simultaneous Live View 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password Protection, HTTPS Encryption, IP Address Filtering, Implicit Authentication
• Alarm
• Smart Classification of People and Vehicle Events
• Area Intrusion Detection
• Line Crossing Detection
• People Detection
• Vehicle Detection
• Region Entry Detection
• Region Exit Detection
• Abandoned Object Detection
• Object Removal Detection
• Basic Detection:
• Motion Detection
• Video Tampering Detection
• Exception (Illegal Login)
• Alarm Link: Push Message
• Exit Notification: Push Message
• Power
• Power Supply:
• 12V DC ± 5%
• 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, Class 0
• Power Consumption:
• 12V DC: Max 5W
• PoE: Class 0
• Dimensions and Weight
• 123 × 83 × 123 mm
• 0.19 Kg
• Contains
• VIGI Network Camera
• Quick Start Guide
• Mounting Accessories
