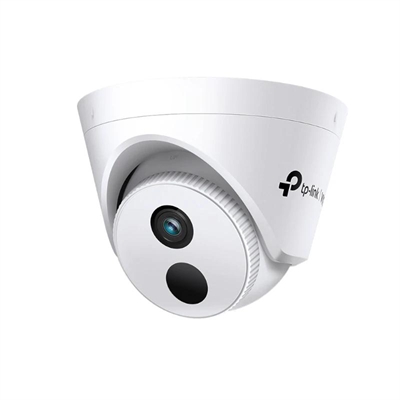

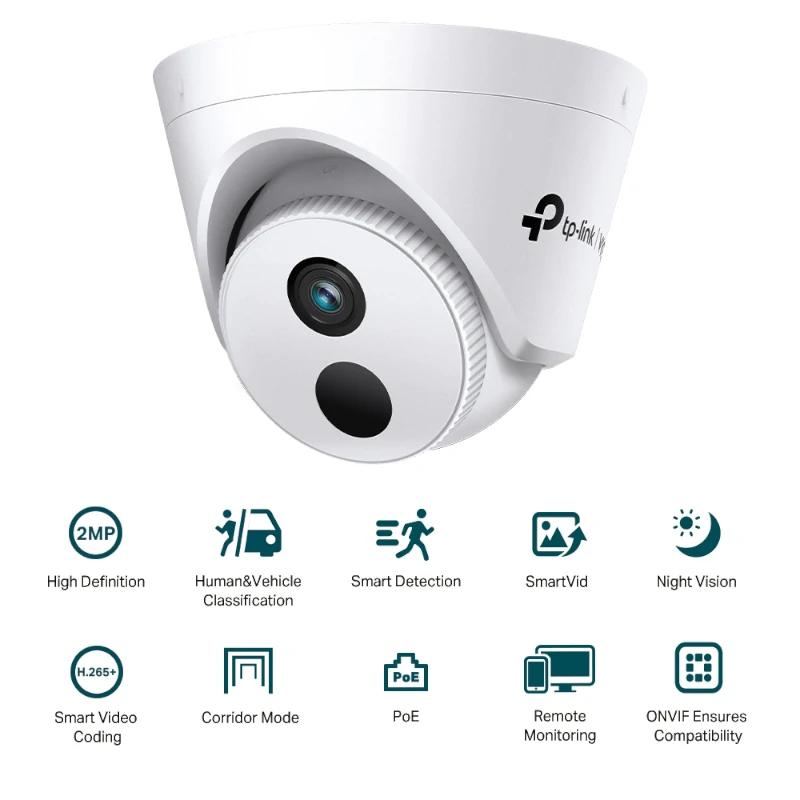

VIGI IP Turret Camera C420I 2MP Plastic IR 2.8mm

Discover the Vigi IP Chamber Turret C420I 2MP , an advanced security solution designed by TP-Link . With its infrared technology and a 2.8mm lens, this camera provides clear and clear images both day and night. Ideal for interior and exterior surveillance, the Vigi C420I is perfect to protect your home or business. day.

Technical Specifications

• Brand VIGI
• Model VIGI C420I(2.8mm)
• Camera – Image Sensor: 1/3″ Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: Color: 0.01 Lux; 0 Lux with IR
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/Scheduled/Auto
• WDR: DWDR
• IR Working Distance: 30m
• Lens – Type: Fixed focal lens
• Focal Length: 2.8 mm
• Aperture: F2.2
• FOV:
• Horizontal FOV: 88.2°
• Vertical FOV: 48.7°
• Diagonal FOV: 106.5°
• Lens Mount: M12
• DORI Distance
• Detection: 45 m
• Observation: 19 m
• Recognition: 9 m
• Identification: 5 m
• Lighting
• Number of Infrared LEDs: 1
• Range: 30m
• Wavelength: 850 nm
• Lighting Control On/Off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevents overexposure to infrared light
• HLC adjustable via client software
• Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: WDR
• SNR: ≥ 52dB
• Image Parameter Switch
• Privacy Mask: up to 4 masks
• ROI: 1 Region
• OSD Configuration
• Video
• Max. Resolution: 1920 × 1080
• Main Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Main Stream Resolution:
• 1920×1080
• 1280×960
• 1280×720
• Note: If image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Sub-Stream Resolution: 704×576, 640×480, 352×288, 320×240
• Note: If image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Bit Rate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Supported main stream
• H.265 Type: Main Profile
• H.265+: Supported main stream
• Main Stream Video Bit Rate: 256 Kbps to 4 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x Adaptive RJ45 Ethernet port 10/100M
• Network Features
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: ONVIF
• Simultaneous Live View: 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, Digest authentication
• Network Storage: NAS (NFS, SMB/CIFS)
• Alarm
• Intelligent classification of people and vehicle events
• Area intrusion detection
• Line crossing detection
• Person detection
• Vehicle detection
• Region entry detection
• Region exit detection
• Abandoned object detection
• Removed object detection
• Basic detection:
• Motion detection
• Video tampering detection
• Exception (illegal login)
• Alarm Link: Push message
• Output Notification: Push message
• Power
• Power Consumption: PoE: Class 0
• Power Supply: PoE (802.3af/at, class 0)
• Dimensions and Weight
• 123 × 83 × 123 mm
• 0.19 kg
• Contains
• VIGI Network Camera
• Quick Start Guide
• Mounting Accessories
• Review Date 02-10-2024 by RTY
