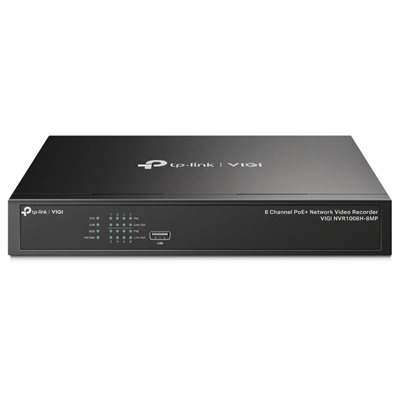

Name: VIGI IP Recorder NVR1008H-8MP Rack 01 HDD 08 C PoE
Brand: TP-LINK
SKU: IRS01088
Availability: InStock

Discover the Vigi recorder IP NVR1008H-8MP RACK 01 HDD 08 C POE TP-Link , an advanced solution for digital surveillance. This IP recorder offers exceptional video quality of up to 8MP, ideal for maintaining your home or business. device.

Technical Specifications

HDMI 4K video output and 16MP decoding capability. Image definition of up to 8MP and an 8-channel display ensure capturing every detail from all angles ‡.
Easy Installation with PoE+. Easily connect and power the VIGI camera via RJ45 cable that transmits data and power, without the need for any power adapter.
Simultaneous playback of 8 channels. Play the signal from up to 8 cameras at the same time. Increase playback speed and find events to review each video more easily and quickly.
H.265+ Video. Saves storage space and bandwidth without sacrificing video image quality. This allows you to save on monitoring costs.
ONVIF Compatibility. VIGI cameras easily integrate into security systems from other brands.
Plug & Play. VIGI cameras are automatically added to the NVR and activated immediately.
24/7 Continuous Recording. The 10TB of secure storage for videos from connected cameras allows for quick and easy access.
Simple and Remote Control. The VIGI app and VIGI security manager have been developed to monitor different cameras from anywhere, facilitating access and control.
Flexible Installation: choose the appropriate installation method simply by housing your NVR in a rack or placing it on or under a desk for added convenience.
Two-way Audio. Allows communication through the built-in microphone and speaker in the camera while viewing the video.
Brand VIGI
Model VIGI NVR1008H-8MP
Video and Audio – IP video input: 8 channels
Input bandwidth: 80 Mbps
Output bandwidth: 60 Mbps
HDMI output resolution: 1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
VGA output resolution: 1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
Video output mode: Simultaneous HDMI/VGA output
Multi-view display: 1/4/6/8
Decoding – Audio Compression: G.711A/G.711U/G.726
Decoding format: H.265+/H.265/ H.264+/H.264
Video compression: H.265+/H.265/ H.264+/H.264
Recording resolution: 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Live view/Playback resolution:
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/
DCIF/2CIF/CIF/QCIF
Synchronous playback: 8 channels
Capacity: 2 channels at 8 MP, 4 channels at 4 MP, 8 channels at 2 MP
Alarm – General Alarm
Motion detection
Video tampering
Line crossing detection
Intrusion detection
Region entering detection
Region exiting detection
Abandoned/removed object detection
Vehicle detection
Human detection
Smart frame
Anomaly Alarm
Video loss
IP conflict and disconnection
Disk exception
Login exception
Fan exception
Alarm linkage
Recording
White light alarm
Buzzer
Log
Sound alarm

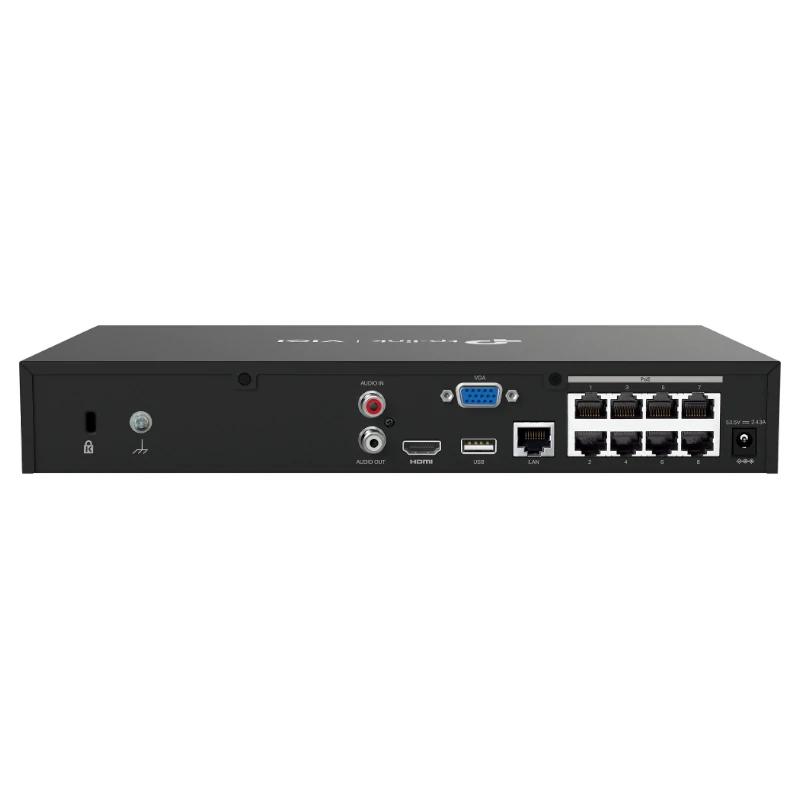

Interfaces – Network interface: 1 x RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface: 2 × USB 2.0
Audio Interface: 1, Audio In; 1, Audio Out
Power: 1 × DC connector
Reset button: 1
HDMI: 1
VGA: 1
SATA: 1 SATA Interface
Capacity: Up to 10 TB
Network Features
Protocol: TCP/IP, DHCP, DNS, NTP, UPnP
Mobile phone access: Android, iOS
Input bandwidth: 80 Mbps
Output bandwidth: 60 Mbps
Web browser: Chrome (57+), Firefox (52+), Edge (91+)
Interoperability: ONVIF, CGI
Log Management
Recording mode:
Manual recording
Scheduled recording
Motion detection recording
Playback mode:
Instant playback
Normal playback
Tag playback
Event playback
Backup mode:
Periodic backup
Clip backup
Playback function:
Play
Pause
Stop
Fast forward
Rewind
Frame-by-frame playback
Full screen
Videoclip
Export clip
Digital zoom
Lock recording
Audio On/Off
Power
External Power Supply: 53.5V DC/2.43 A
Dimensions and weight
294 × 180 × 44 mm
1.12 Kg
Contains
VIGI network video recorder
Power adapter
HDD screws
Mouse
Quick installation guide
