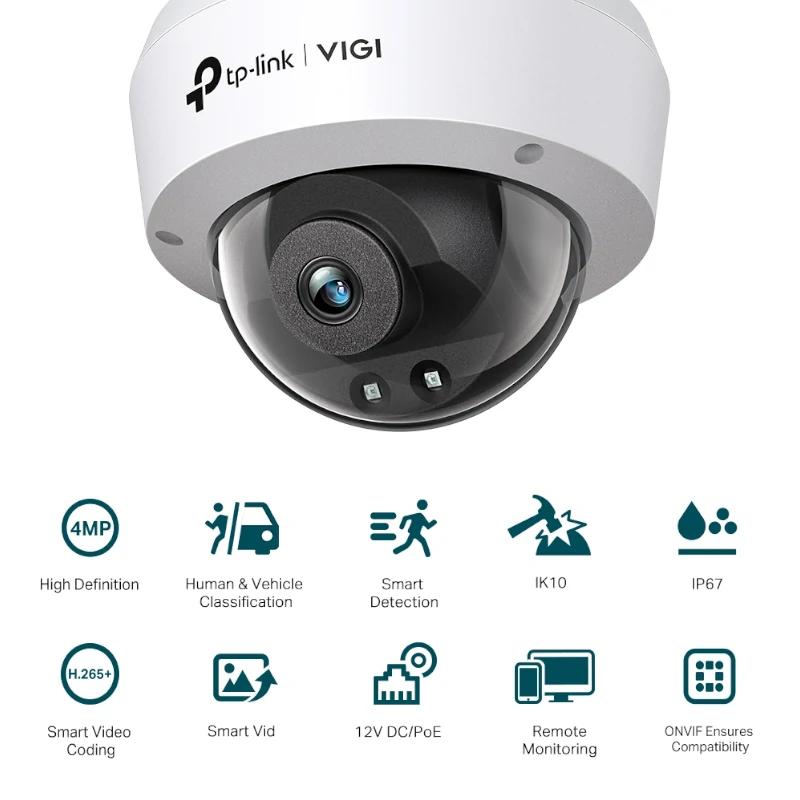

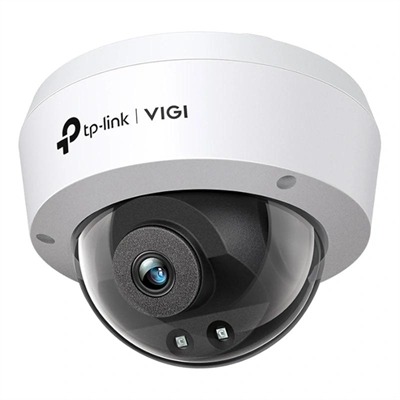

VIGI IP Dome Camera C240I 4MP Plastic IR 2.8mm

Discover the Vigi IP Domo C240I tp-link , an advanced security solution for your home or business. With a 4MP resolution and 2.8mm lens, this camera provides clear and clear images, even in low light conditions thanks to its IR technology. Ideal to monitor any space, its plastic design makes it resistant and lasting.

• 4MP resolution for high quality images.


  Technical Specifications

  • Brand VIGI
  • Model VIGI C240I(2.8mm)
  • Camera – Image Sensor: 1/3 Progressive Scan CMOS
  • Shutter Speed: 1/3 to 1/10000 s
  • Slow Shutter
  • Aperture: F1.6
  • Lenses: 2.8 mm
  • Lens Mount: M12
  • Minimum Illumination: Color: 0.005 Lux; 0 Lux with white/IR light
  • Day/Night Mechanism: IR Cut Filter
  • Day/Night Switch: Unified/Scheduled/Auto
  • Digital Noise Reduction: 3D DNR
  • WDR: DWDR
  • Weather Resistance Rating: IP67
  • Pan/Tilt Range: Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360°
  • Field of View
  • 2.8 mm:
  • Horizontal Field of View: 95.7°
  • Vertical Field of View: 51.7°
  • Diagonal Field of View: 113.0°
  • Lens – Type: Fixed Focal Lens
  • Focal Length: 2.8 mm
  • Aperture: F1.6
  • Lens Mount: M12
  • FOV
  • 2.8 mm:
  • Horizontal: 95.7°
  • Vertical: 51.7°
  • Diagonal: 113.0°
  • DORI Distance
  • 2.8 mm:
  • Detection: 64 m
  • Observe: 27 m
  • Recognize: 13 m
  • Identify: 6 m
  • Image and Video – Image Settings
  • Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
  • White Balance, prevents overexposure to infrared light, HLC adjustable via client software
  • Rotation (90°/270°)
  • Image Enhancement: BLC/3D DNR/HLC/SmartIR
  • Wide Dynamic Range: DWDR
  • SNR: ≥ 52 dB
  • Image Parameter Switch
  • Privacy Mask: Up to 4 masks
  • ROI: 1 region
  • OSD Configuration
  • Max Resolution: 4MP (2560 × 1440)
  • Video Bitrate: From 64 Kbps to 4 Mbps
  • Day/Night Switch: Day/Night/Auto/Scheduled
  • Video Streaming:
  • Main Stream
  • Sub-Stream
  • Video Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264
  • Main Stream
  • Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
  • Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
  • Sub-Stream
  • Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
  • Resolution: 640×480, 352×288, 320×240
  • Interfaces – Network Interface: 1 x RJ45 10/100M self-adaptive Ethernet port
  • Power: DC Power Port
  • Internal Storage: Built-in memory card slot, supports MicroSD card up to 256 GB
  • Built-in Microphone
  • Network Features
  • Protocol:
  • TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
  • RTSP, NTP, UPnP UDP, SSL/TLS
  • ONVIF
  • API: ONVIF
  • Simultaneous Live View: 3 Main Streams and 3 Sub-Streams
  • Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
  • Web Browser:
  • Google Chrome 57 and above
  • Firefox 52 and above
  • Safari 11 and above
  • Microsoft Edge 91 and above
  • Cloud
  • Security: Password protection, HTTPS encryption, IP address filtering, Digest authentication
  • Audio
  • Audio Input
  • Audio Compression
  • Audio Sampling Rate: 8KHz
  • Environment Noise Filtering
  • Audio Bit Rate: 64 Kbps (G.711 alaw)
  • Power
  • Power Consumption:
  • 12V DC: Max. 5.4 W
  • PoE Class 0
  • Power Supply:
  • 12 V DC ± 5%, 5.5 mm coaxial power plug
  • PoE (802.3af/at, class 0)
  • Dimensions and Weight
  • 115 × 86 × 115 mm
  • 0.28 Kg
  • Contains
  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof cable accessories
  • Mounting accessories
