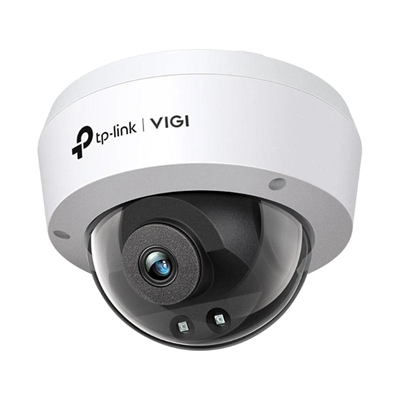

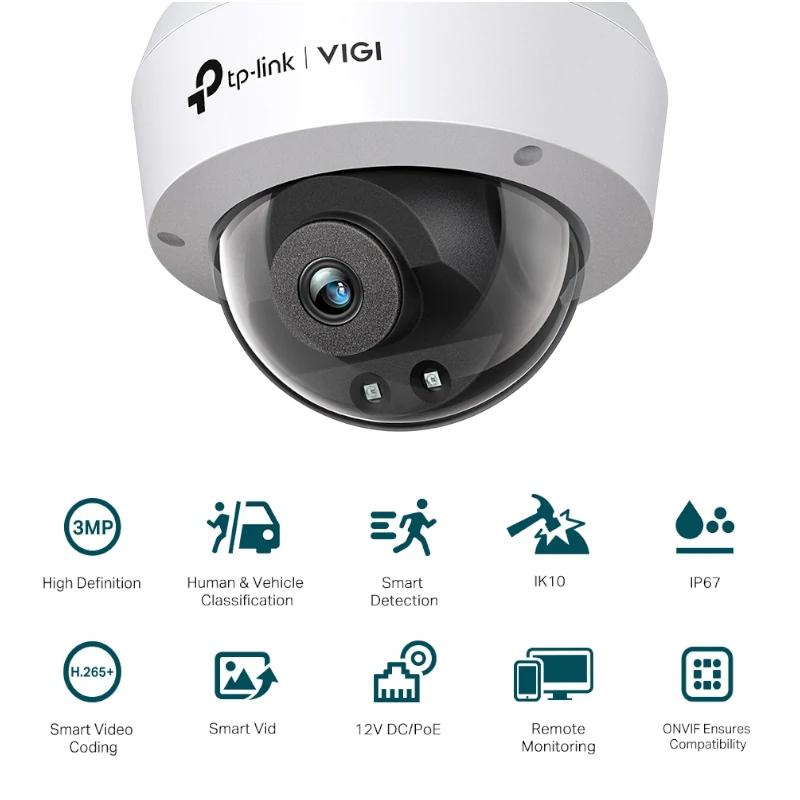

VIGI IP Dome Camera C230I 3MP Plastic IR 4mm

Discover the Vigi IP Domo C230i TP-Link, an advanced video surveillance solution that offers an image quality of 3MP and a 4mm lens for exceptional visibility. Ideal for the safety of your home or business, this camera has infrared technology for a clear and precise night vision. Compact in plastic, ideal for outdoor and interior.

Technical Specifications

• Brand VIGI
• Model VIGI C230I(4mm)
• Camera – Image Sensor: 1/2.8” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: Color: 0.01 lux; 0 Lux with IR light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/Scheduled/Auto
• Lens – Lens Type: Fixed Focal Length
• Focal Length: 4 mm
• Aperture: F2.0
• FOV:
• Horizontal FOV: 82.5°
• Vertical FOV: 44.9°
• Diagonal FOV: 99.3°
• Lens Mount: M12
• DORI Distance
• Detection: 65 m (214 ft)
• Observe: 27 m (89 ft)
• Recognize: 13 m (43 ft)
• Identify: 7 m (21 ft)
• Illumination
• Number of Infrared LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Lighting Control On/Off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevents overexposure to infrared light
• HLC adjustable via client software
• Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52 dB
• Image Parameter Switch
• Privacy Mask: Up to 4 masks
• ROI: 1 Region
• OSD Settings
• Video
• Max. Resolution: 2304 × 1296
• Main Stream Frame Rate:
• 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Main Stream Resolution:
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Sub-Stream Frame Rate:
• 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Sub-Stream Resolution: 704×576, 640×480, 352×288, 320×240
• Bitrate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main Profile
• H.265+: Compatible with Main Stream
• Main Stream Video Bitrate: 256 Kbps to 4 Mbps
• Sub-Stream Video Bitrate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Power: DC Power Port
• Network Features
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: ONVIF
• Simultaneous Live View: 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, Web UI
• Web Browser:
• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
• Cloud
• Security: Password Protection, HTTPS Encryption, IP Address Filtering, Implicit Authentication
• Alarm and Event Management
• Intelligent Classification of People and Vehicle Events
• Area Intrusion Detection
• Line Crossing Detection
• People Detection
• Vehicle Detection
• Region Entry Detection
• Region Exit Detection
• Abandoned Object Detection
• Object Removal Detection
• Basic Event Motion Detection, Video Tampering Detection, Exception (Illegal Login)
• Alarm Push Linkage Message
• Push Notification Exit Message
• Power
• Power Consumption
• 12 V DC: max. 5 W
• PoE: Class 0
• Power Supply
• 12 V DC ± 5 %, max. 5 W coaxial power plug, 5.5 mm.
• PoE: 802.3af/at, class 0, max. 5.5 watts
• Dimensions and Weight
• 115 × 86 × 115 mm
• 0.27 g
• Contains
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Accessories
• Mounting Accessories
