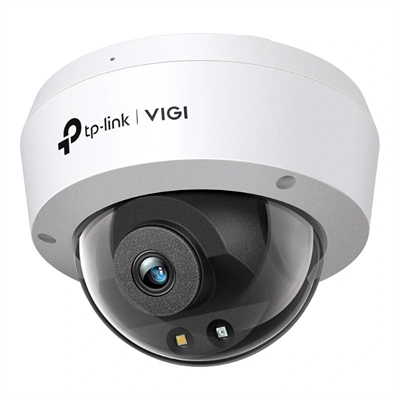

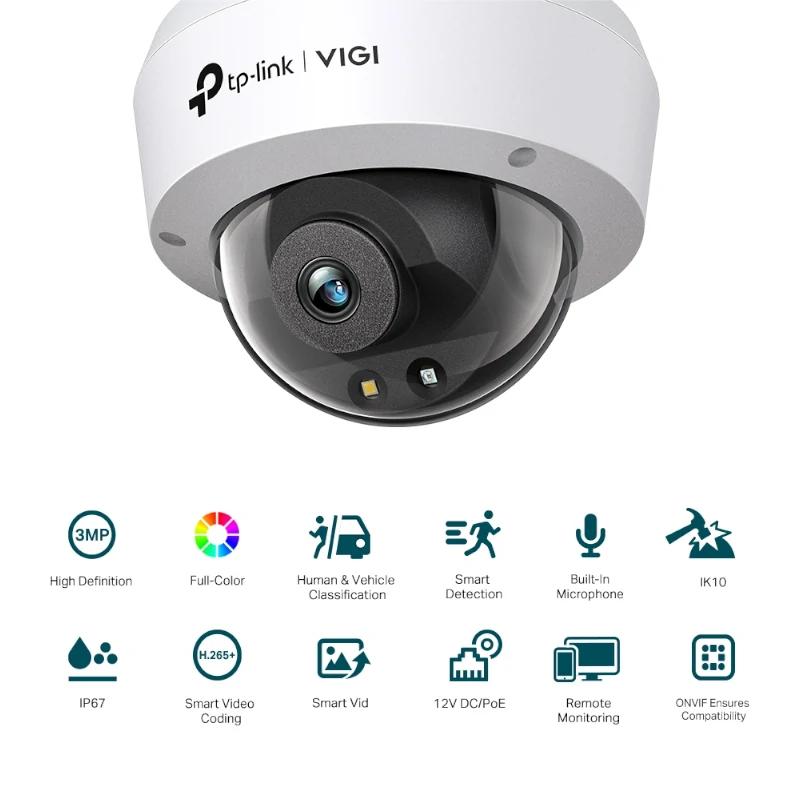

VIGI IP Dome Camera C230 3MP Plastic Full-Color 4

The VIGI Cámara IP Domo C230 3MP from TP-LINK is an advanced surveillance solution that offers full-color images and a 3MP resolution. Designed to provide a clear and detailed view, this camera is perfect for the security of your home or business.

• Clear images: Thanks to its 3MP resolution and full-color technology.
• Easy installation: Intuitive design that allows for quick setup.
• Advanced connectivity: Supports Wi-Fi and Ethernet connection for greater flexibility.
• Durability: Made of resistant plastic, ideal for outdoors.

Technical Specifications

• Brand VIGI
• Model VIGI C230(4mm)
• Camera – Image Sensor: 1/2.8″ Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: Color: 0.005 Lux; 0 Lux with white/IR light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/Scheduled/Automatic
• Digital Noise Reduction: 3D DNR
• WDR: DWDR
• Weatherproof Rating: IP67
• IR Working Distance: 30m
• Pan/Tilt Range: Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360°
• Lens – Lens Type: Fixed Focal
• Focal Length: 4 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 89.1°
• Vertical FOV: 45.1°
• Diagonal FOV: 106.9°
• Lens Mount: M12
• DORI Distance
• Detection: 70 m (230 ft)
• Observation: 29 m (96 ft)
• Recognition: 14 m (46 ft)
• Identification: 7 m (23 ft)
• Lighting
• IR LED:
• Quantity: 1
• Range: 30m
• Wavelength: 850 nm
• White LEDs:
• Quantity: 1
• Height: 30m
• Lighting Control On/Off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevents Overexposure to Infrared Light
• HLC adjustable via client software
• Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52 dB
• Image Parameter Switch
• Privacy Mask: Up to 4 Masks
• ROI: 1 Region
• OSD Configuration
• Video
• Max. Resolution: 2304 × 1296
• Main Stream Frame Rate:
• 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Main Stream Resolution:
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Sub-Stream Frame Rate:
• 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Sub-Stream Resolution:
• 704×576
• 640×480
• 352×288
• 320×240
• Bitrate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main Profile
• H.265+: Compatible with Main Stream
• Main Stream Video Bitrate: 256 Kbps to 4 Mbps
• Sub-Stream Video Bitrate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 Self-adaptive RJ45 Ethernet Port 10/100M
• DC Power Port
• Built-in Microphone
• Network Features
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: ONVIF
• Simultaneous Live View 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Cloud
• Security: Password Protection, HTTPS Encryption, IP Address Filtering, Implicit Authentication
• Alarm and Event Management
• Smart Event
• Person and Vehicle Classification
• Area Intrusion Detection
• Line Crossing Detection
• Person Detection
• Vehicle Detection
• Region Entry Detection
• Region Exit Detection
• Abandoned Object Detection
• Object Removal Detection
• Basic Event
• Motion Detection
• Video Tampering Detection
• Exception (Illegal Login)
• Output Notification: Push Message
• Alarm Link: Flashing White Light, Push Message
• Power
• Power Consumption:
• 12V DC: Max. 4.7 W
• PoE Class 0
• Power Supply:
• 12 V DC ± 5%, 5.5 mm Coaxial Power Connector
• PoE (802.3af/at, Class 0)
• Dimensions and Weight
• 115 × 115 × 86 mm
• 0.28 kg
• Contains
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Accessories
• Mounting Accessories
