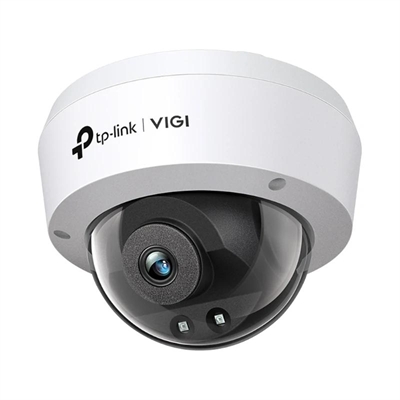

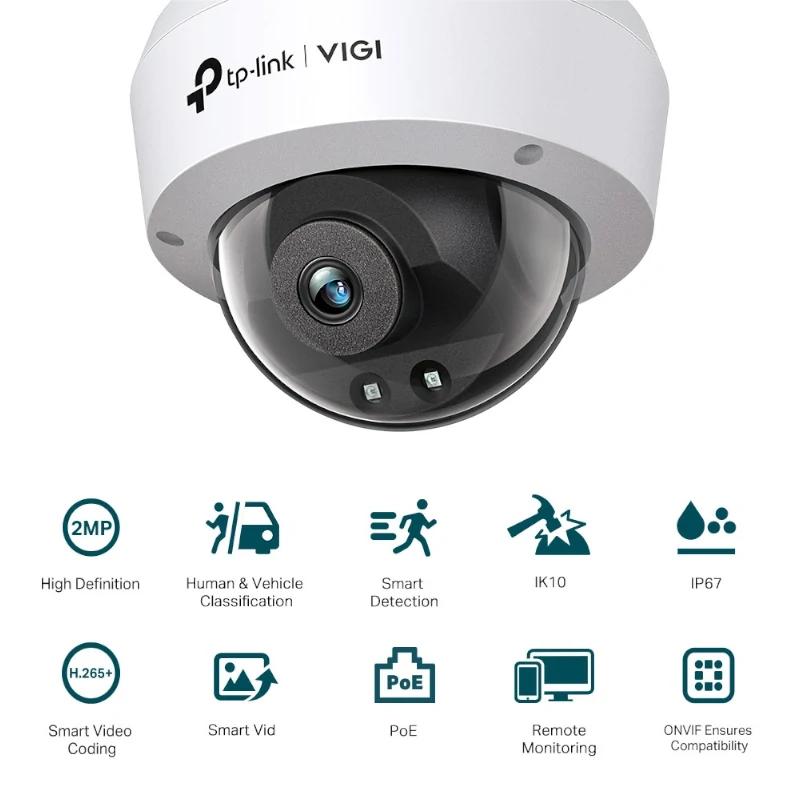

VIGI IP Dome Camera C220I 2MP Plastic IR 4mm

Discover the VIGI Cámara IP Domo C220I from TP-LINK, an advanced security solution with a resolution of 2MP and a 4mm lens. Ideal for monitoring your spaces, this camera features infrared night vision, ensuring constant and high-quality surveillance even in low-light conditions.

• 2MP resolution for clear images.
• IR night vision for 24/7 security.
• Durable and resistant plastic design.
• Easy installation and setup through the VIGI app.

Technical Specifications

• Brand VIGI
• Model VIGI C220I(4mm)
• Camera – Image Sensor: 1/3″ Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Day/Night Switch: Unified/Scheduled/Automatic
• Digital Noise Reduction: 3D DNR
• WDR: DWDR
• Weather Resistance Rating: IP67
• IR Working Distance: 30m
• Field of View
• 4 mm: 74.6°/41.3°/88.1°(H/V/D)
• Lens – Lens Type: Fixed Focal
• Focal Length: 4 mm
• Aperture: F2.0
• FOV:
• Horizontal FOV: 74.6°
• Vertical FOV: 41.3°
• Diagonal FOV: 88.1°
• Lens Mount: M12
• DORI Distance
• Detection: 60 m (198 ft)
• Observation: 25 m (83 ft)
• Recognition: 12 m (40 ft)
• Identification: 6 m (20 ft)
• Lighting
• Number of LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Lighting Control On/Off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevents Overexposure to Infrared Light
• HLC Adjustable via Client Software
• Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52 dB
• Image Parameter Switch
• Privacy Mask: Up to 4 Masks
• ROI: 1 Region
• OSD Configuration
• Video
• Max. Resolution: 1920 × 1080
• Main Stream Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Main Stream Resolution:
• 1920×1080
• 1280×960
• 1280×720
• Sub-Stream Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Sub-Stream Resolution:
• 704×576
• 640×480
• 352×288
• 320×240
• Bit Rate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Compatible with Main Stream
• H.264 Type: Main Profile/High Profile
• H.265 Type: Main Profile
• H.265+: Compatible with Main Stream
• Main Stream Video Bit Rate: 256 Kbps to 4 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 Self-adaptive RJ45 Ethernet Port 10/100M
• Network Features
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: ONVIF
• Simultaneous Live View 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR
• Web Browser: Network
• Cloud
• Security: Password Protection, HTTPS Encryption, IP Address Filtering, Implicit Authentication
• Alarm and Event Management
• Smart Event
• Person and Vehicle Classification
• Area Intrusion Detection
• Line Crossing Detection
• Person Detection
• Vehicle Detection
• Region Entry Detection
• Region Exit Detection
• Abandoned Object Detection
• Object Removal Detection
• Basic Event
• Motion Detection
• Video Tampering Detection
• Alarm Link: Push Message
• Power
• Power Consumption: PoE: Class 0
• Power Supply: PoE (802.3af/at, Class 0)
• IK10 Vandal Resistant
• Protection: IP67, IK10
• Dimensions and Weight
• 115 × 115 × 86 mm
• 0.26 g
• Contains
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Accessories
• Mounting Accessories
