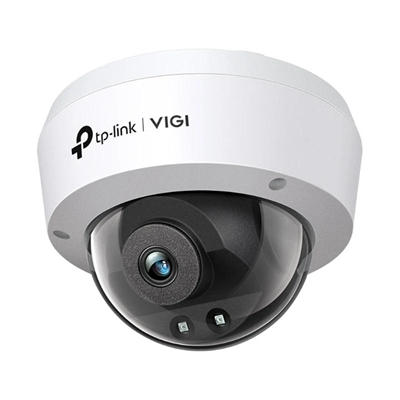

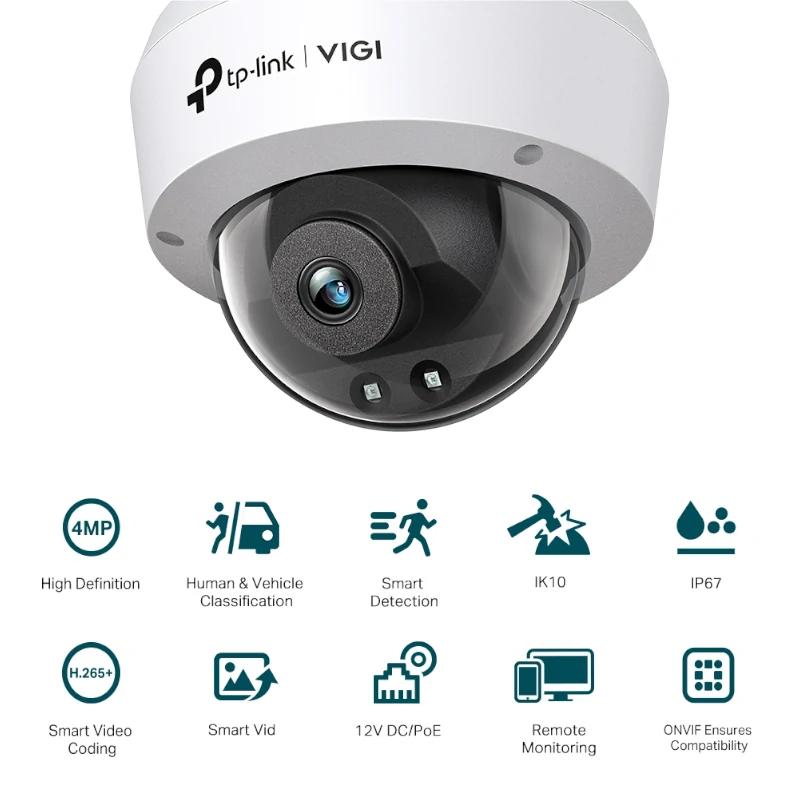

VIGI IP Camera C240I Dome 4MP Plastic IR 4mm

Discover the VIGI Cámara IP C240I Domo 4MP from TP-LINK, an advanced video surveillance solution designed to provide you with security and peace of mind. With its 4MP resolution and IR night vision, you can monitor your spaces 24 hours a day, 7 days a week.

• High resolution: Capture clear and detailed images with 4MP.
• Night vision: IR technology that allows you to see in the dark.
• Easy installation: Dome design that makes it easy to mount in various locations.
• Advanced connectivity: Compatible with monitoring applications from mobile devices.

Technical Specifications

• Brand VIGI
• Model VIGI C240I(4mm)
• Camera – Image Sensor: 1/3 Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Aperture: F1.6
• Lenses: 4 mm
• Lens Mount: M12
• Minimum Illumination: Color: 0.005 Lux; 0 Lux with white/IR light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/Scheduled/Auto
• Digital Noise Reduction: 3D DNR
• WDR: DWDR
• Weather Resistance Rating: IP67
• Pan/Tilt Range: Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360°
• Field of View
• 4 mm:
• Horizontal Field of View: 79.7º
• Vertical Field of View: 42.9º
• Diagonal Field of View: 93.9º
• Lens – Type: Fixed Focal Lens
• Focal Length: 4 mm
• Aperture: F1.6
• Lens Mount: M12
• FOV
• 4 mm:
• Horizontal: 79.7°
• Vertical: 42.9°
• Diagonal: 93.9°
• DORI Distance
• 4 mm:
• Detection: 80 m
• Observe: 33 m
• Recognize: 16 m
• Identify: 8 m
• Image and Video – Image Settings
• Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
• White Balance, prevents overexposure to infrared light, HLC adjustable via client software
• Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52 dB
• Image Parameter Switch
• Privacy Mask: Up to 4 masks
• ROI: 1 region
• OSD Configuration
• Max. Resolution: 4MP (2560 × 1440)
• Video Bitrate: From 64 Kbps to 4 Mbps
• Day/Night Switch: Day/Night/Auto/Scheduled
• Video Streaming:
• Main Stream
• Sub-Stream
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• Main Stream
• Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Resolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
• Sub-Stream
• Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Resolution: 640×480, 352×288, 320×240
• Interfaces – Network Interface: 1 x RJ45 10/100M self-adaptive Ethernet port
• Power: DC Power Port
• Internal Storage: Built-in memory card slot, supports MicroSD card up to 256 GB
• Built-in Microphone
• Network Features
• Protocol:
• TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
• RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: ONVIF
• Simultaneous Live View: 3 Main Streams and 3 Sub-Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, Digest authentication
• Audio
• Audio Input
• Audio Compression
• Audio Sampling Rate: 8KHz
• Environment Noise Filtering
• Audio Bit Rate: 64 Kbps (G.711 alaw)
• Power
• Power Consumption:
• 12V DC: Max. 5.4 W
• PoE Class 0
• Power Supply:
• 12 V DC ± 5%, 5.5 mm coaxial power plug
• PoE (802.3af/at, class 0)
• Dimensions and Weight
• 115 × 86 × 115 mm
• 0.28 Kg
• Contains
• VIGI Network Camera
• Quick Start Guide
• Waterproof cable accessories
• Mounting accessories
• Review Date 02-10-2024 by RTY
