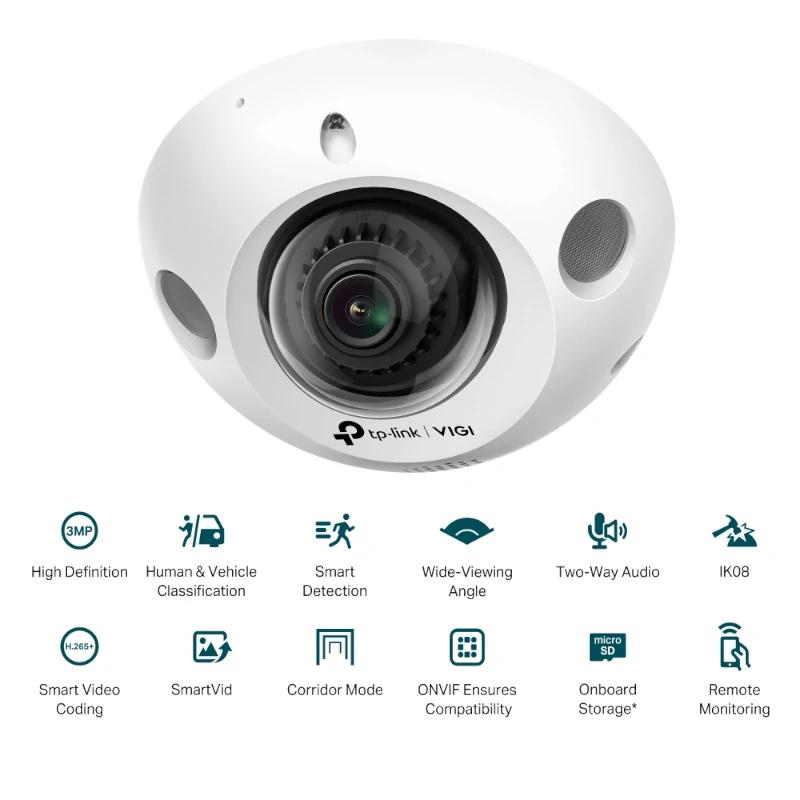

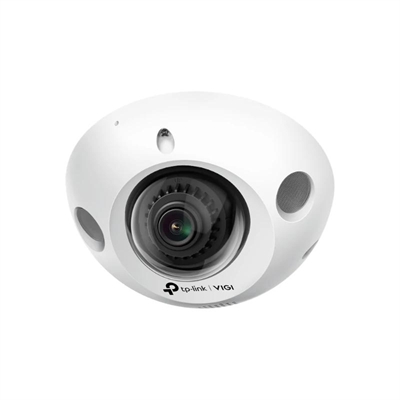

VIGI IP Camera C230I Mini Dome 3MP Plastic IR 2.8

Discover the VIGI Cámara IP C230I Mini Dome 3MP from TP-LINK, an advanced surveillance solution designed to provide you with security and peace of mind. With its compact and functional design, this camera is ideal for both indoors and outdoors.

• 3MP Resolution: Capture sharp and detailed images in high definition.
• IR Night Vision: Maintain surveillance even in low-light conditions thanks to its infrared technology.
• Easy Installation: Its mini dome design allows for simple and quick installation anywhere.

Technical Specifications

• Brand VIGI
• Model C230I Mini(2.8mm)
• Camera – Image Sensor: 1/2.8” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: Color: 0.01 lux; 0 Lux with IR light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/Scheduled/Auto
• Lens – Type Fixed Focal Lens
• Focal Length: 2.8 mm
• Aperture: F21.6
• FOV:
• Horizontal FOV: 106.9º
• Vertical FOV: 56.9°
• Diagonal FOV: 127.9°
• Lens Mount: M12
• DORI Distance
• Detection: 49 m
• Observe: 20 m
• Recognize: 10 m
• Identify: 5 m
• Lighting
• Number of Infrared LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Lighting Control On/Off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevents overexposure to infrared light
• HLC adjustable via client software
• Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52 dB
• Image Parameter Switch
• Privacy Mask: Up to 4 masks
• ROI: 1 Region
• OSD Configuration
• Video
• Max. Resolution: 2304 × 1296
• Main Stream Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Main Stream Resolution:
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Sub-Stream Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Sub-Stream Resolution: 704×576, 640×480, 352×288, 320×240
• Bit Rate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main Profile
• H.265+: Compatible with Main Stream
• Main Stream Video Bit Rate: 256 Kbps to 4 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Reset Button
• Power: DC Port
• Reset Button
• Internal Storage: Built-in memory card slot, supports MicroSD card up to 256 GB
• Built-in Microphone
• Built-in Speaker
• Audio
• Network Features
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: ONVIF
• Simultaneous Live View 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser: Open Network Video Interface (Profile S)
• Security: Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication
• Alarm and Event Management
• Intelligent:
• Person and Vehicle Classification
• Area Intrusion Detection
• Line Crossing Detection
• Person Detection
• Vehicle Detection
• Region Entry Detection
• Region Exit Detection
• Abandoned Object Detection
• Object Removal Detection
• Basic: Motion Detection, Video Tampering Detection, Exception (Illegal Login)
• Alarm Linkage: Video Recording with Memory Card, Message Sending, Sound Warning
• Push Notification Message
• Power
• Power Consumption
• 12 V DC: max. 5 W
• PoE: Class 0
• Power Supply
• 12 V DC ± 5 %
• 5.5 mm Coaxial Power Plug
• PoE (802.3af/at, class 0)
• Dimensions and Weight
• 114 × 114 × 58 mm
• 0.23 kg
• Contains
• VIGI Network Camera
• Quick Start Guide
• Mounting Accessories
• Mounting Template
