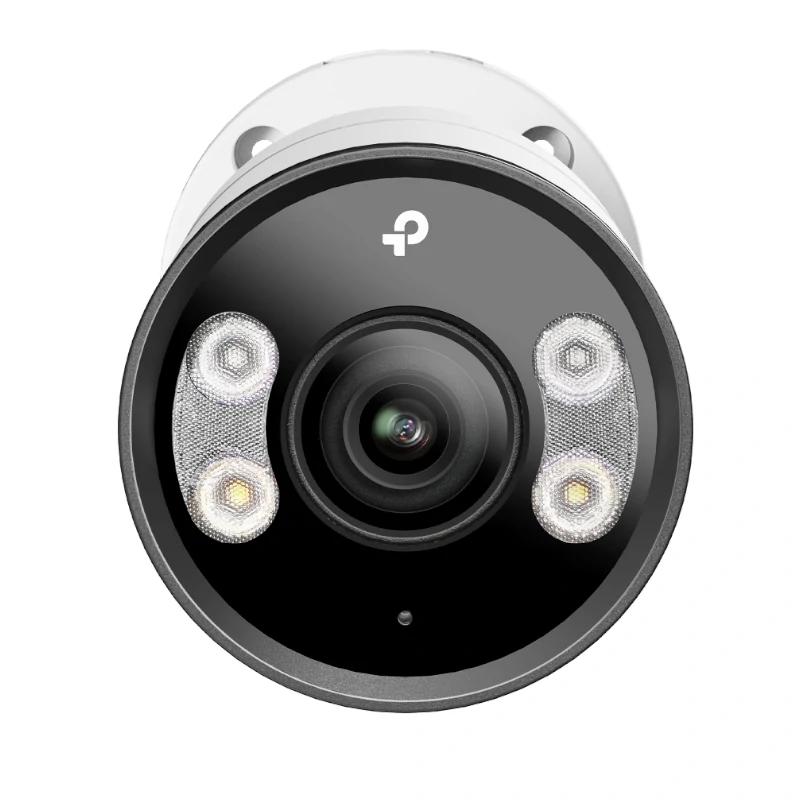

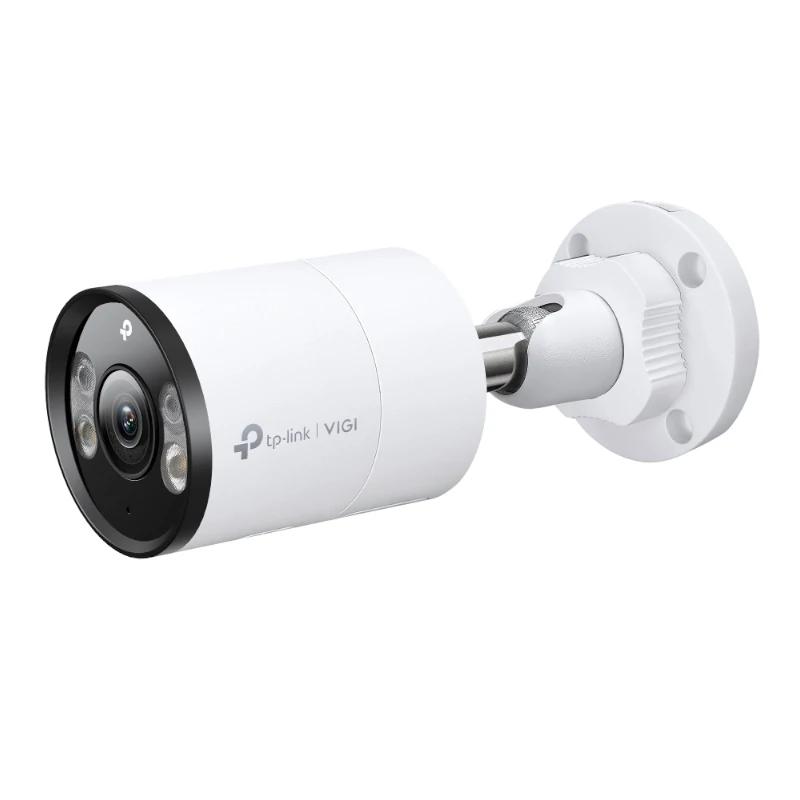

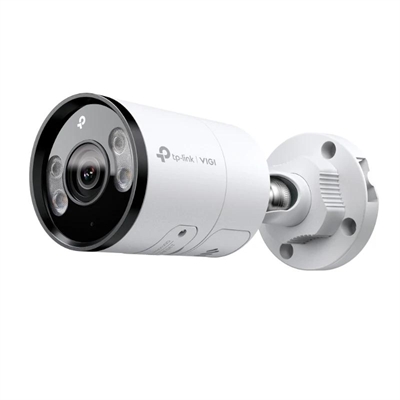

VIGI IP Bullet Camera C385 8MP Metal Full-Colour 2.

Discover the VIGI Cámara IP Bullet C385 from TP-LINK, an advanced security solution with an impressive resolution of 8MP. Designed to provide full-color images even in low-light conditions, this camera is ideal for protecting your home or business.

• Simple and fast connectivity thanks to its advanced technology.
• Weather-resistant, perfect for outdoor use.
• High-quality night vision for continuous surveillance.

Technical Specifications

• Brand VIGI
• Model VIGI C385(2.8mm)
• Camera – Image Sensor: 1/2.7” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/ Scheduled/ Auto
• Lens – Lens Type: fixed focal length
• Focal Length: 2.8 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 111.4°
• Vertical FOV: 58.8°
• Diagonal FOV: 134°
• Lens Mount: M12*P 0.5
• DORI Distance
• Detection: 85 m
• Observe: 35 m
• Recognize: 17 m
• Identify: 8 m
• Illumination
• Number of infrared LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Number of white LEDs: 2
• Range: 30m
• Lighting control on/off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevents overexposure to infrared light
• HLC adjustable via client software
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: 120 dB
• Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
• SNR: ≥ 52dB
• Image Parameter Switch
• Privacy Mask: up to 4 masks
• ROI: 1 Region
• OSD Settings
• Video
• Max. Resolution: 3840 X 2160
• Main Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Main Stream Resolution:
• 3840×2160
• 2560×1440
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Sub-Stream Resolution: 848×480, 704×576, 640×480, 640×360, 352×288, 320×240
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Bit Rate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main Profile
• H.265+: Compatible with Main Stream
• Main Stream Video Bit Rate: 256 Kbps to 6 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M Adaptive Ethernet Port, PoE
• Reset Button
• Power: DC Power Port
• Internal Storage: Built-in memory card slot, compatible with MicroSD card, up to 512 GB
• Built-in Microphone: records everything happening within a 15-foot radius of the camera
• Built-in Speaker
• Features Network
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
• ONVIF
• API: ONVIF (Profiles S/T/G)
• Simultaneous Live View 3 Main Streams and 3 Sub-Streams
• Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS?VIGI Cloud VMS
• Web Browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, implicit authentication
• Audio
• Audio Communication: Two-way Audio
• Audio Input
• Audio Output
• Audio Compression
• Audio Sampling Rate: 8KHz
• Ambient Noise Filtering
• Audio Bit Rate: 64 Kbps (G.711 law)
• Alarm
• Detection:
• Intrusion Detection
• Line Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Abandoned Object Detection
• Object Removal Detection
• Loitering Detection
• Person Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
• Basic Event
• Motion Detection (enhanced with person and vehicle classification for more accurate alerts)
• Video Tampering Detection
• Exception (illegal login)
• Alarm Linkage
• Video recording with memory card
• Push notification
• Sound warning
• Flashing white light
• Output Notification: push notification
• Power
• Power Supply:
• 12V DC ± 5%, Max. 10.5 W
• 5.5 mm coaxial power plug
• PoE: 802.3af/at, class 0, max. 11.5W
• Dimensions and Weight
• 184 × 74 × 74 mm
• 0.525 kg
• Contains
• VIGI Network Camera
• Quick Start Guide
• Waterproof cable accessories
• Mounting accessories
• Review Date 03-10-2024 by RTY
