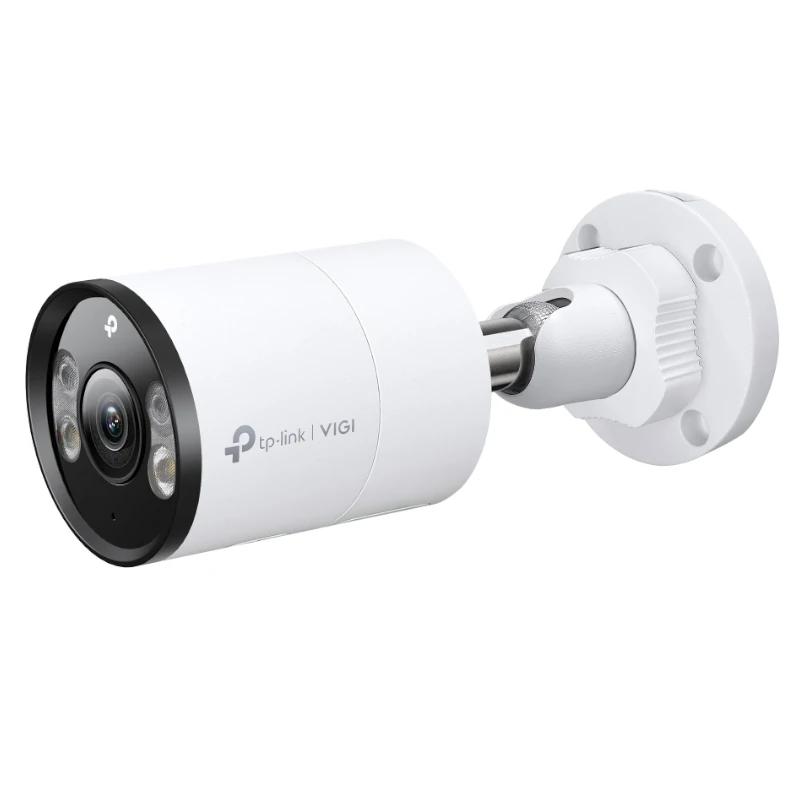

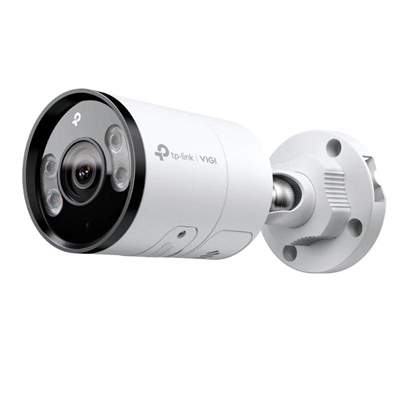

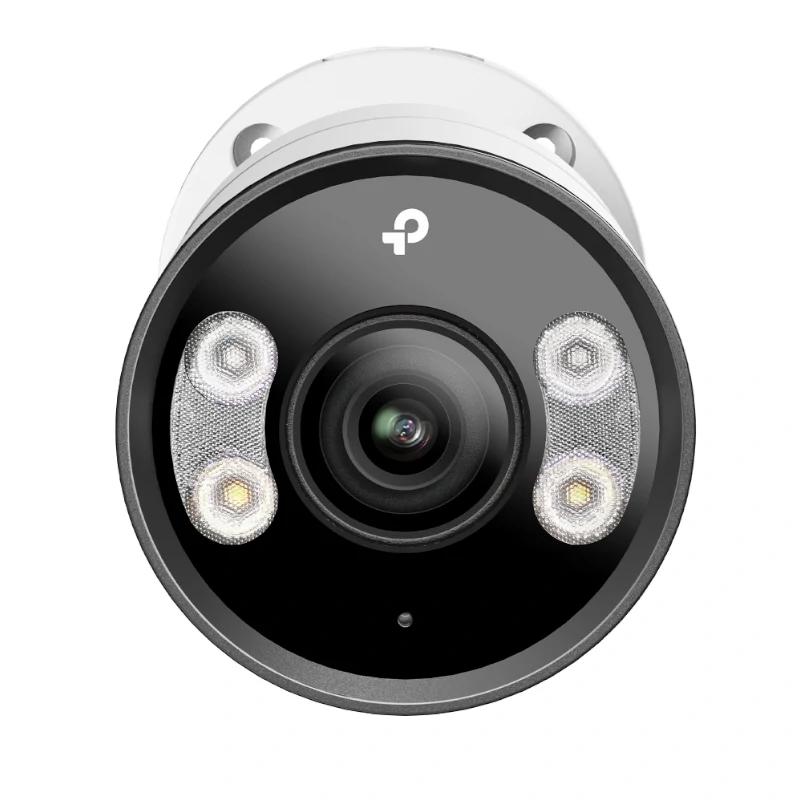

VIGI IP Bullet Camera C345 4MP Metal Full-Color 4m

Technical Specifications

• Super high definition of 4MP and 24 hours full color
• Analysis of people and vehicles
• Classification of people and vehicles
• Intelligent detection
• Intelligent video enhancement technology
• Active defense and two-way audio
• IP67 waterproof
• H.265+ compression technology
• Brand VIGI
• Model VIGI C345(4mm)
• Camera – Image Sensor: 1/2.7” progressive scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/White light
• Day/Night Mechanism: IR cut filter
• Day/Night Switch: Day/Night/Auto/Scheduling
• Lens – Type: Fixed focal lens
• Focal Length: 4 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 80.4°
• Vertical FOV: 41.8°
• Diagonal FOV: 98.7°
• Lens Mount: M12
• DORI Distance
• Detection: 80 m
• Observation: 33 m
• Recognition: 16 m
• Identification: 8 m
• Illumination
• Number of IR LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Number of infrared LEDs: 2
• Range: 30m
• Lighting control on/off: Automatic/Scheduled/Always on/Always off
• Image and Video Image
• Image settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White balance
• HLC adjustable via client software
• Image enhancement: BLC/3D DNR/HLC/SmartIR
• Wide dynamic range: 120 dB
• Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
• SNR: ≥ 52dB
• Image parameter switch
• Privacy mask: up to 4 masks
• ROI: 1 Region
• OSD settings
• Video
• Max. Resolution: 2688 x 1520
• Main Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Main Stream Resolution:
• 2688×1520
• 2560×1440
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Sub-Stream Resolution: 640×480, 352×288, 320×240
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Bitrate control: CBR, VBR
• Video compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main profile/High profile
• H.264+: Supported main stream
• H.265 Type: Main profile
• H.265+: Supported main stream
• Main Stream video bitrate: 256 Kbps to 4 Mbps
• Sub-Stream video bitrate: 64 Kbps to 512 Kbps
• Interfaces – 1 x auto-adaptive RJ45 10/100M Ethernet port, PoE
• Reset button
• Power: DC power port
• Integrated storage: Built-in memory card slot, compatible with MicroSD card, up to 512 GB
• Built-in microphone: Records everything happening within a 15-foot radius of the camera
• Built-in speaker
• Features Network
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: ONVIF
• Simultaneous live view: 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, Digest authentication
• Network Storage: NAS (NFS, SMB/CIFS)
• Alarm
• Intelligent classification of people and vehicle events
• Area intrusion detection
• Line crossing detection
• People detection
• Vehicle detection
• Region entry detection
• Region exit detection
• Abandoned object detection
• Object removal detection
• Basic detection:
• Motion detection
• Video tampering detection
• Exception (illegal login)
• Alarm linkage: Push message
• Output notification: Push message
• Power
• Power supply:
• 12V DC ± 5%, Max. 9.7 W
• 5.5 mm coaxial power plug
• PoE: 802.3af/at, class 0, max. 10.7W
• Dimensions and weight
• 184 × 74 × 74 mm
• 0.525 kg
• Contains
• VIGI network camera
• Quick start guide
• Waterproof cable accessories
• Mounting accessories
