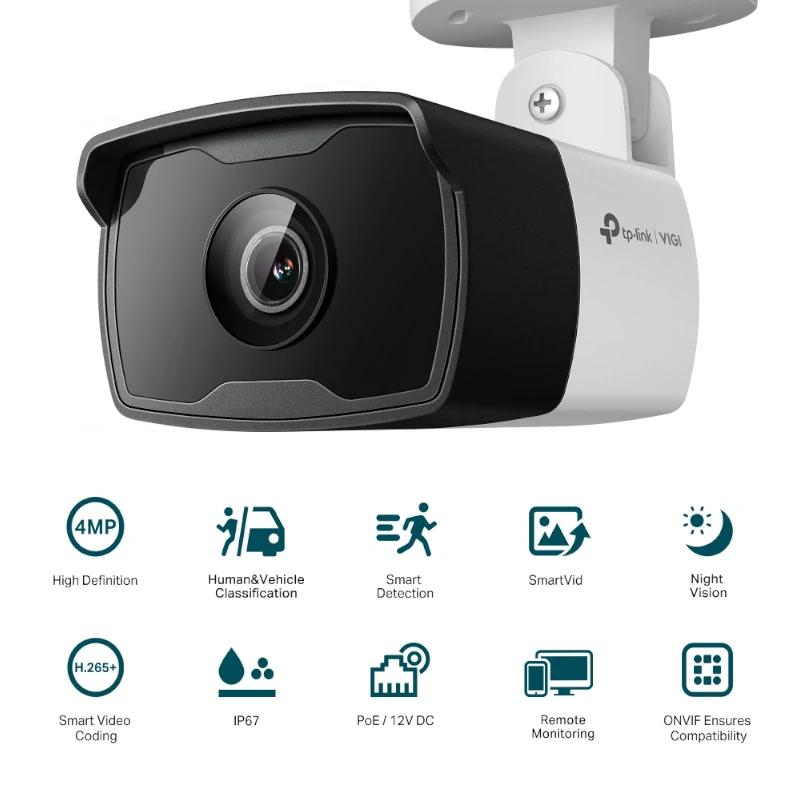

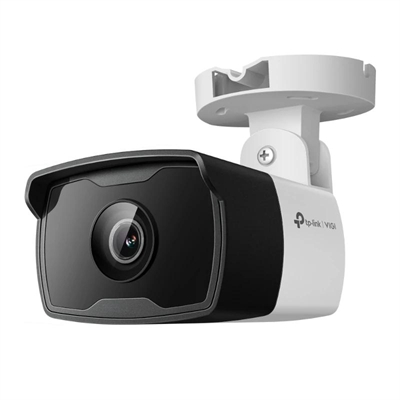

VIGI IP Bullet Camera C340I 4MP Plastic IR 4mm

Discover the Vigi IP Chamber Bullet C340i 4MP of TP-Link , an advanced surveillance solution designed to offer high quality images and real-time safety. With its 4mm lens and IR technology, this camera guarantees exceptional visibility even in low light conditions. Complications.

Technical Specifications

• Super high definition of 4MP. The VIGI C340I camera captures sharp, high-quality images at a resolution of up to 2560 × 1440 pixels.
• Human and vehicle classification. The integrated AI algorithms analyze the image distinguishing humans and vehicles from other objects.
• Intelligent detection. Receive notifications when someone accesses restricted areas, manipulates the camera, and when objects are removed or abandoned.
• Intelligent image enhancement. The integrated Smart IR, WDR, 3D DNR, and Night Vision technologies process the videos to improve their quality and facilitate later viewing.
• H.265+ video. Saves storage space and bandwidth without sacrificing video image quality. This can help reduce monitoring costs.
• IP67 water-resistant. The camera is hermetically sealed against water and dust to ensure high performance outdoors.
• PoE and 12V DC power supply. Choose the method that best suits your security installation.
• 2.8mm, 4mm, or 6mm lens. The VIGI camera is available in 3 different formats to better suit your security needs.
• Simple Control. Manage your business security in 4 different ways: web user interface, NVR user interface, VIGI App, and VIGI Security Manager.
• Brand VIGI
• Model VIGI C340I(4mm)
• Camera – Image Sensor: 1/3″ Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: Color: 0.01 Lux; 0 Lux with IR
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Day/Night/Auto/Scheduling
• Lens – Type: Fixed focal lens
• Focal Length: 4 mm
• Aperture: F2.0
• FOV:
• Horizontal FOV: 75.1°
• Vertical FOV: 41.5°
• Diagonal FOV: 88.7°
• Lens Mount: M12
• DORI Distance
• Detection: 80m
• Observe: 33 m
• Recognize: 16 m
• Identify: 8 m
• Lighting
• Number of infrared LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Lighting control on/off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White balance
• Software client adjustable HLC
• Rotation (90°/270°)
• Image enhancement: BLC/3D DNR/HLC/SmartIR
• Wide dynamic range: DWDR
• SNR: ≥ 52dB
• Image parameter switch
• Privacy mask: up to 4 masks
• ROI: 1 Region
• OSD configuration
• Video
• Max. Resolution: 2560 × 1440
• Main Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Main Stream Resolution:
• 2560×1440
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Sub-Stream Resolution: 640×480, 352×288, 320×240
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Bit rate control: CBR, VBR
• Video compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Supported main stream
• H.265 Type: Main Profile
• H.265+: Supported main stream
• Main Stream video bit rate: 256 Kbps to 4 Mbps
• Sub-Stream video bit rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x self-adaptive RJ45 10/100M Ethernet port
• Power: DC power port
• Network Features
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: ONVIF
• Simultaneous live view: 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, Digest authentication
• Network Storage: NAS (NFS, SMB/CIFS)
• Alarm
• Intelligent classification of people and vehicle events
• Area intrusion detection
• Line crossing detection
• People detection
• Vehicle detection
• Region entry detection
• Region exit detection
• Abandoned object detection
• Object removal detection
• Basic detection:
• Motion detection
• Video tampering detection
• Exception (illegal login)
• Alarm linkage: Push message
• Exit notification: Push message
• Power
• Power supply:
• 12V DC ± 5%, Max. 9 W
• 5.5 mm coaxial power plug.
• PoE: 802.3af/at, class 0, max. 10.7W
• Dimensions and weight
• 73 × 174 × 71 mm
• 0.2 kg
• Contains
• VIGI network camera
• Quick start guide
• Waterproof cable accessories
• Mounting accessories
