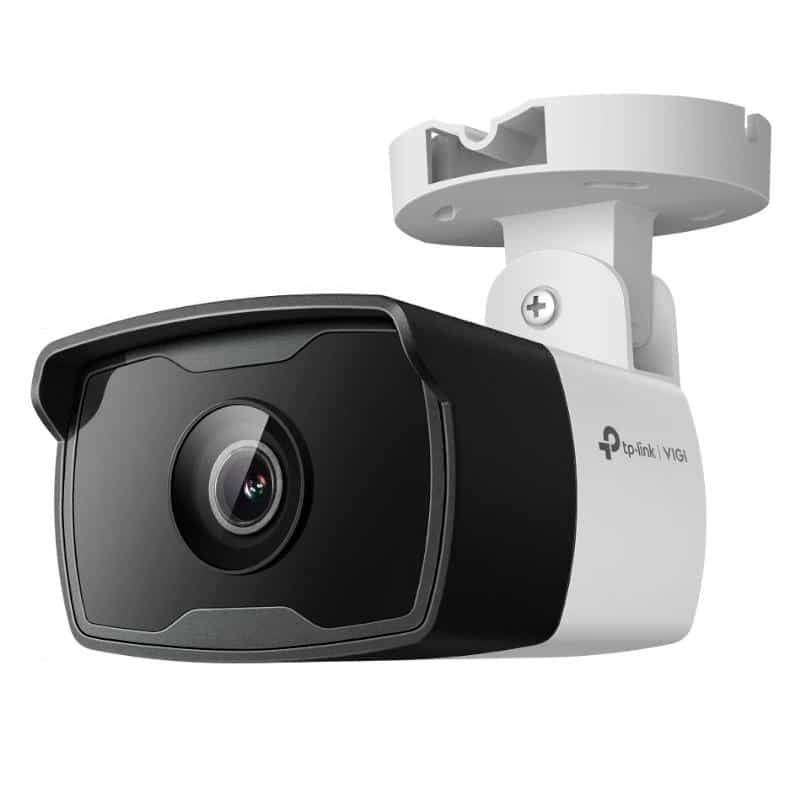

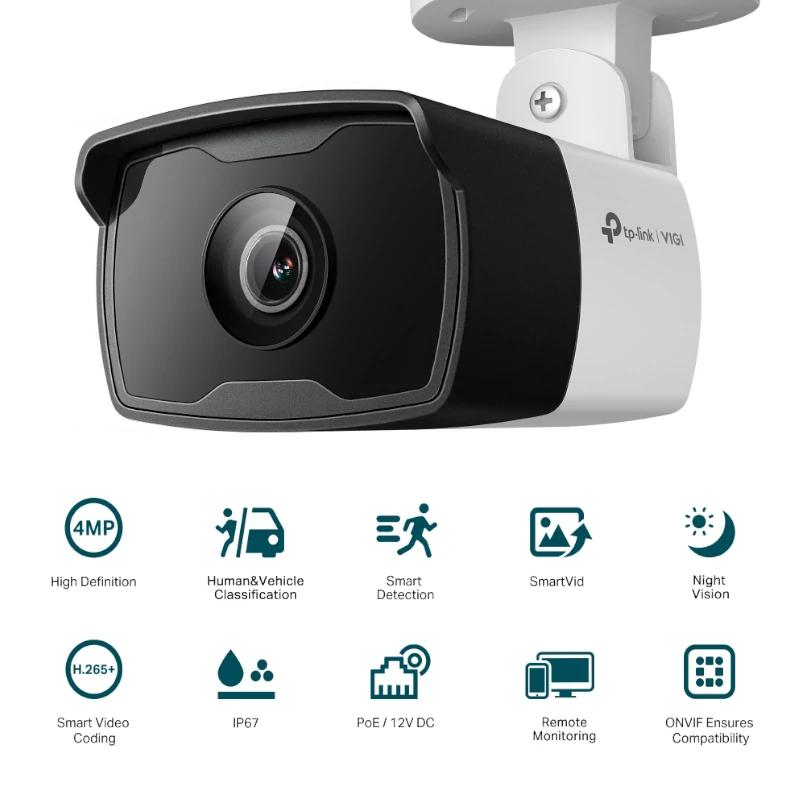

VIGI IP Bullet Camera C340I 4MP Plastic IR 2.8mm

Discover the Vigi IP Chamber Bullet C340i of TP-Link, an advanced video surveillance solution with a 4MP resolution that guarantees clear and clear images. Designed for outdoor, its plastic housing and its 2.8mm lens allow wide coverage and night vision thanks to its IR technology. IR for surveillance 24/7

Technical Specifications

• Brand VIGI
• Model VIGI C340I(2.8mm)
• Camera – Image Sensor: 1/3″ Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: Color: 0.01 Lux; 0 Lux with IR
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Day/Night/Auto/Scheduling
• Lens – Type: Fixed focal lens
• Focal Length: 2.8 mm
• Aperture: F2.2
• FOV:
• Horizontal FOV: 88.8°
• Vertical FOV: 48.9°
• Diagonal FOV: 106.5°
• Lens Mount: M12
• DORI Distance
• Detection: 60m
• Observation: 25 m
• Recognition: 12 m
• Identification: 6 m
• Lighting
• Number of infrared LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Lighting control on/off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Software adjustable HLC
• Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52dB
• Image Parameter Switch
• Privacy Mask: up to 4 masks
• ROI: 1 Region
• OSD Configuration
• Video
• Max. Resolution: 2560 × 1440
• Main Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Main Stream Resolution:
• 2560×1440
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Sub-Stream Resolution: 640×480, 352×288, 320×240
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Bit Rate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Supported Main Stream
• H.265 Type: Main Profile
• H.265+: Supported Main Stream
• Main Stream Video Bit Rate: 256 Kbps to 4 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M adaptive Ethernet port
• Power: DC power port
• Network Features
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: ONVIF
• Simultaneous Live View: 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, Digest authentication
• Network Storage: NAS (NFS, SMB/CIFS)
• Alarm
• Smart classification of people and vehicle events
• Area intrusion detection
• Line crossing detection
• People detection
• Vehicle detection
• Region entry detection
• Region exit detection
• Abandoned object detection
• Object removal detection
• Basic detection:
• Motion detection
• Video tampering detection
• Exception (illegal login)
• Alarm linkage: Push message
• Output notification: Push message
• Power
• Power Supply:
• 12V DC ± 5%, Max. 9 W
• 5.5 mm coaxial power plug.
• PoE: 802.3af/at, class 0, max. 10.7W
• Dimensions and Weight
• 73 × 174 × 71 mm
• 0.2 kg
• Contains
• VIGI network camera
• Quick start guide
• Waterproof cable accessories
• Mounting accessories
• Review Date 02-10-2024 by RTY
