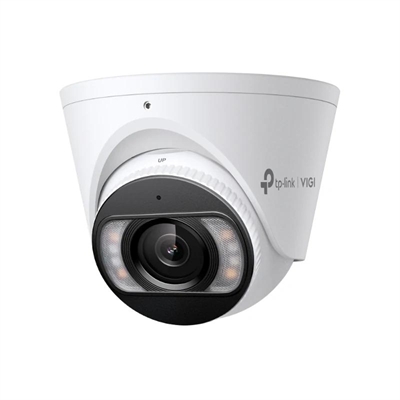

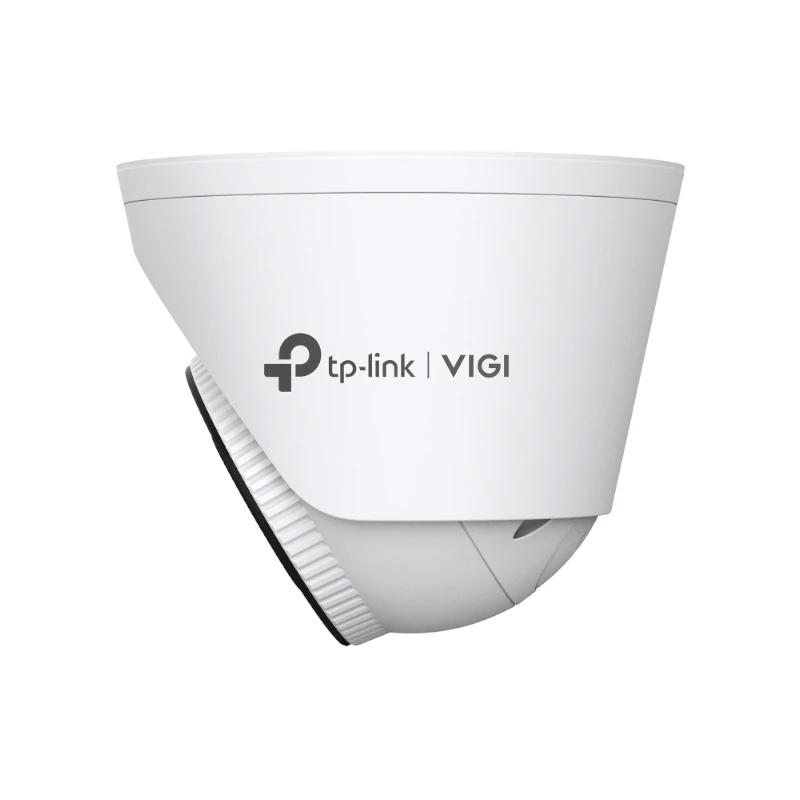

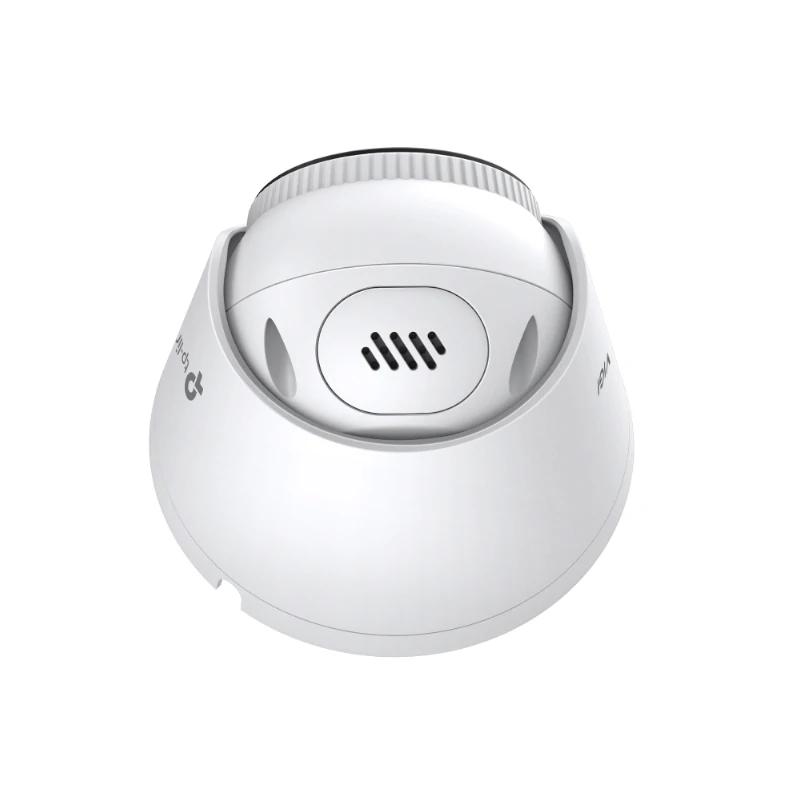

VIGI C485 8MP Metal Full-Colour 4m IP Turret Camera

Discover the Vigi IP Chamber Turret C485 8MP tp-link , an advanced surveillance solution designed to offer images in full-color even in low light conditions. With a 8MP resolution and a scope of 4 meters , this camera guarantees an effective and detailed supervision of your spaces. Ideal for homes and businesses, its metal structure provides durability and resistance.

Technical Specifications

• Brand VIGI
• Model VIGI C485(4mm)
• Camera – Image Sensor: 1/2.7” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/ Scheduled/ Auto
• Lens – Type Fixed focal lens
• Focal Length: 4 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 91.5°
• Vertical FOV: 46.1°
• Diagonal FOV: 109.6°
• Lens Mount: M12
• DORI Distance
• Detection: 85 m
• Observation: 35 m
• Recognition: 17 m
• Identification: 8 m
• Illumination
• Number of infrared LEDs: 4
• Range: 30m
• Wavelength: 850 nm
• Number of white LEDs: 4
• Range: 30m
• Lighting control on/off: Automatic/Scheduled/Always on/Always off
• Image and Video Image
• Image settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White balance
• Adjustable by Client Software
• Rotation (90°/270°)
• Image enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52dB
• Image parameter switch
• Privacy mask: up to 4 masks
• ROI: 1 Region
• OSD settings
• Video
• Max. Resolution: 3840 X 2160
• Main Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• Main Stream Resolution:
• 3840×2160
• 2560×1440
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• Sub-Stream Resolution: 704×576, 640×480, 352×288, 320×240
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Bit rate control: CBR, VBR
• Video compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main profile/High profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main profile
• H.265+: Compatible with Main Stream
• Main Stream video bit rate: 256 Kbps to 6 Mbps
• Sub-Stream video bit rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M Adaptive Ethernet Port, PoE
• Reset button
• Power: DC power port
• Internal storage: Built-in memory card slot, compatible with MicroSD card, up to 256 GB
• Built-in microphone: records everything happening within a 15-foot radius of the camera
• Built-in speaker
• Network Features
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: Open Network Video Interface (Profile S)
• Simultaneous live view 3 main streams and 3 sub-streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, Digest authentication
• Audio
• Audio Communication: Two-way Audio
• Audio Input
• Audio Output
• Audio Compression
• Audio Sampling Rate: 8KHz
• Ambient noise filtering
• Audio Bit Rate: 64 Kbps (G.711 law)
• Alarm
• Detection:
• Classification of people and vehicles
• Intrusion detection in areas
• Line crossing detection
• Person detection
• Vehicle detection
• Entry detection in regions
• Exit detection from regions
• Abandoned object detection
• Object removal detection
• Basic Event
• Motion detection (enhanced with classification of people and vehicles for more accurate alerts)
• Video tampering detection
• Exception (illegal login)
• Alarm Link
• Video recording with memory card
• Push message
• Sound warning
• Flashing white light
• Output notification: push message
• Power
• Power supply:
• 12V DC ± 5%, Max. 11.5 W
• 5.5 mm coaxial power plug
• PoE: 802.3af/at, class 0, Max. 12.5 W
• Dimensions and Weight
• 111 × 111 × 83.7 mm
• 0.48 Kg
• Contains
• VIGI network camera
• Quick start guide
• Waterproof cable accessories
• Mounting accessories
• Revision date 04-10-2024 by RTY
