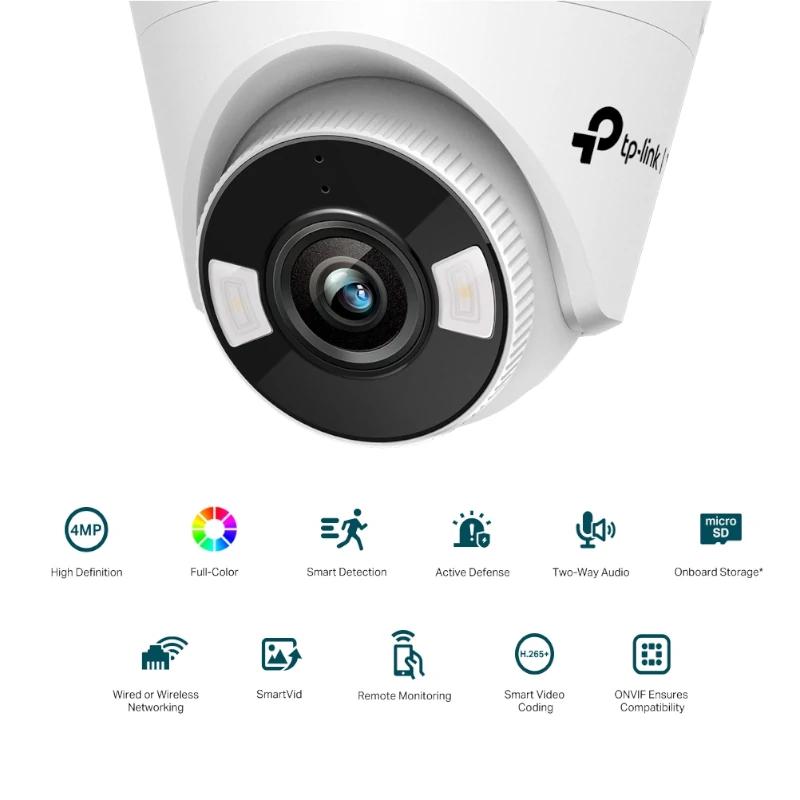

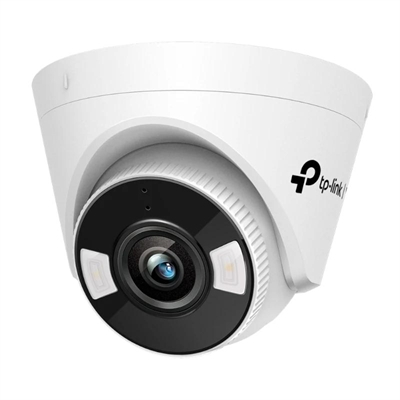

VIGI C440-W 4MP Plastic Colour IP Turret Camera

Discover the Vigi IP Chamber Turret C440-W 4MP of TP-Link, the ideal solution for the surveillance of your home or business. With its compact and functional design, this camera offers high-definition and advanced technology images to guarantee your safety. Night: 24 -hour protection, even in low light conditions.

Technical Specifications

• Brand VIGI
• Model VIGI C440-W(4mm)
• Camera – Image Sensor: 1/3” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0 lux with IR/white Light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/ Scheduled/ Auto
• Lens – Lens Type: Fixed Focal Length
• Focal Length: 4 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 80°
• Vertical FOV: 43.2°
• Diagonal FOV: 94.2°
• Lens Mount: M12
• DORI Distance
• Detection: 80 m
• Observe: 33 m
• Recognize: 16 m
• Identify: 8 m
• Illumination
• Number of Infrared LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Number of White LEDs: 2
• Range: 30m
• Lighting Control On/Off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Avoid Overexposure to Infrared Light
• Adjustable HLC via Client Software
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52dB
• Image Parameter Switch
• Privacy Mask: up to 4 masks
• ROI: 1 Region
• OSD Configuration
• Video
• Max. Resolution: 2560 x 1440
• Main Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Main Stream Resolution:
• 2560×1440
• 2304×1296
• 2048×1280
• 1920×1080
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Sub-Stream Resolution: 640×480, 352×288, 320×240
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Bit Rate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main Profile
• H.265+: Compatible with Main Stream
• Main Stream Video Bit Rate: 256 Kbps to 3 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x Adaptive RJ45 Ethernet Port 10/100M
• Audio Input: Built-in Microphone
• Audio Output: Built-in Speaker
• Reset Button
• Power: DC Power Port
• Button: Reset Button
• Internal Storage: Integrated memory card slot, supports MicroSD card up to 256 GB
• Built-in Microphone: Records Anything Going on within a 15-ft Radius of the Camera
• Built-in Speaker
• Network Features
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: Open Network Video Interface (Profile S)
• Simultaneous Live View 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password Protection, HTTPS Encryption, IP Address Filtering, Digest Authentication
• Network Storage: NAS (NFS, SMB/CIFS)
• Wireless
• Wi-Fi Channels: 1-13
• Frequency: 2.4 GHz
• Wireless Transmission Power: High
• Radio Bandwidth
• 20M
• 40Ms
• Wireless Rate:
• 11Mbps(802.11b)
• 54Mbps(802.11g)
• 150/300Mbps(802.11n)
• Wireless Security: PWPA/WPA2-PSK
• Wireless Mode: AP, AP Client
• Audio
• Audio Communication: Two-Way Audio
• Audio Input
• Audio Output
• Audio Compression
• Audio Sampling Rate: 8KHz
• Ambient Noise Filtering
• Audio Bit Rate: 64 Kbps (G.711 law)
• Alarm
• Smart Event:
• Zone Intrusion Detection
• Line Crossing Detection
• Person Detection
• Basic Event:
• Motion Detection
• Video Tampering Detection
• Exception (Illegal Login)
• Output Notification: Push Message
• Power
• Power Consumption: 12V DC: Max. 7W
• Power Supply: 12 V DC ± 5%, 5.5 mm coaxial plug
• Dimensions and Weight
• 123 × 123 × 84 mm
• 0.24 Kg

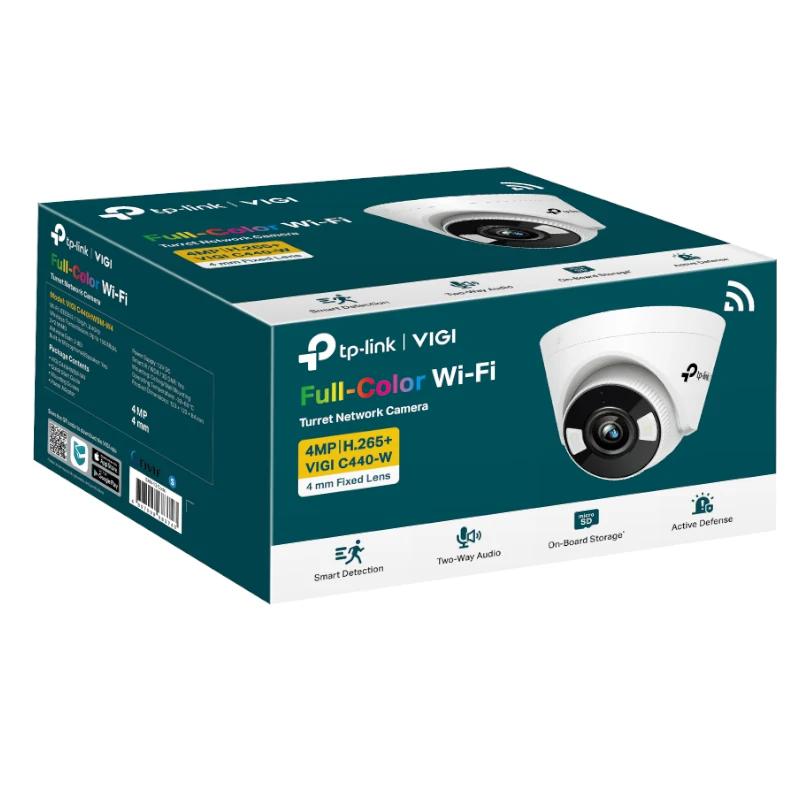

• Contains
• VIGI Network Camera
• Quick Start Guide
• Power Adapter
• Mounting Accessories
