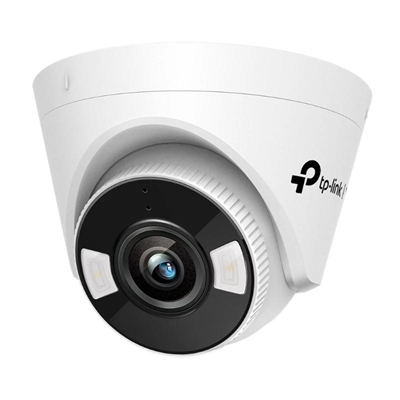

Name: VIGI C430 3MP Full-Colour Plastic Turret IP Camera
Brand: TP-LINK
SKU: IRS01021
Availability: OutOfStock

Discover the VIGI Cámara IP Turret C430 3MP from TP-LINK, an advanced surveillance solution that offers full-color images and a 3MP resolution for clear and detailed viewing. Ideal for any environment, this camera perfectly adapts to your security needs.

3MP resolution for clear and detailed images.
Full-color vision for better identification of objects and people.
Turret design that easily integrates into any space.
IP connectivity for easy installation and remote access.

Technical Specifications

Brand VIGI
Model VIGI C430(4mm)
Camera – Image Sensor: 1/2.8” Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter
Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Unified/ Scheduled/ Auto
Digital Noise Reduction: 3D DNR
WDR: DWDR
IR Working Distance: 30m
Lens – Lens Type: Fixed focal length
Focal Length: 4 mm
Aperture: F1.6
FOV:
Horizontal FOV: 89.1°
Vertical FOV: 45.1°
Diagonal FOV: 106.9°
Lens Mount: M12
DORI Distance
Detection: 70 m
Observation: 29 m
Recognition: 14 m
Identification: 7 m
Lighting
Number of Infrared LEDs: 2
Range: 30m
Wavelength: 850 nm
Number of White LEDs: 2
Range: 30m
Lighting Control On/Off: Automatic/Scheduled/Always On/Always Off
Image and Video Image
Image Settings:
Mirror
Brightness
Contrast
Saturation
Sharpness
Exposure
WDR
White Balance
Prevents overexposure to infrared light
Software adjustable HLC
Rotation (90°/270°)
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range: WDR
SNR: ≥ 52dB
Image Parameter Switch
Privacy Mask: up to 4 masks
ROI: 1 Region
OSD Configuration
Video
Max. Resolution: 2304 × 1296
Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
Main Stream Resolution:
2304×1296
2048×1280
1920×1080
1280×720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
Sub-Stream Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
Sub-Stream Resolution: 704×576, 640×480, 352×288, 320×240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
Bitrate Control: CBR, VBR
Video Compression:
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type: Main Profile/High Profile
H.264+: Compatible with Main Stream
H.265 Type: Main Profile
H.265+: Compatible with Main Stream
Main Stream Video Bitrate: 256 Kbps to 4 Mbps
Sub-Stream Video Bitrate: 64 Kbps to 512 Kbps
Interfaces – Network Interface: 1 x RJ45 10/100M Adaptive Ethernet Port, PoE
Power: DC Power Port
Built-in Microphone:
Network Features
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF
API: ONVIF
Simultaneous Live View 3 Main Streams and 3 Sub Streams
Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser:
Google Chrome 57 and above
Firefox 52 and above
Safari 11 and above
Microsoft Edge 91 and above
Cloud
Security: Password protection, HTTPS encryption, IP address filtering, implicit authentication
Audio
Audio Communication: Two-way Audio
Audio Input
Audio Output
Audio Compression
Audio Sampling Rate: 8KHz
Ambient Noise Filtering
Audio Bitrate: 64 Kbps (G.711 law)
Alarm
Smart Classification of People and Vehicle Events
Area Intrusion Detection
Line Crossing Detection
People Detection
Vehicle Detection
Region Entry Detection
Region Exit Detection
Abandoned Object Detection
Object Removal Detection
Basic Detection:
Motion Detection
Video Tampering Detection
Exception (illegal login)
Scene Change Detection
Alarm Connection: Flashing white light, push message
Output Notification: Push message
Power
Power Supply:
12V DC ± 5%, Max. 9 W
5.5 mm coaxial power plug.
PoE (802.3af/at, class 0)
Power Consumption:
12V DC: Max 4.2W
PoE: Class 0
Dimensions and Weight
123 × 83 × 123 mm
0.21 Kg
Contains
VIGI Network Camera
Quick Start Guide
Mounting Accessories
Review Date 04-10-2024 by RTY
