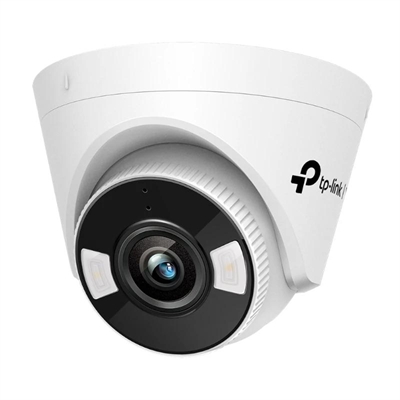

VIGI C430 3MP Full-Colour IP Turret Camera 2.

Discover the Vigi IP Turret Chamber C430 3MP Plast Full-Color 2 of TP-Link, an advanced surveillance solution that combines exceptional image quality and cutting-edge technology. Ideal for the safety of your home or business, this camera guarantees a clear vision even in low light conditions. weather: designed to withstand adverse climatic conditions.

Technical Specifications

• Brand VIGI
• Model VIGI C430(2.8mm)
• Camera – Image Sensor: 1/2.8” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/ Scheduled/ Auto
• Digital Noise Reduction: 3D DNR
• WDR: DWDR
• IR Working Distance: 30m
• Lens – Lens Type: Fixed focal length
• Focal Length: 2.8 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 107.5°
• Vertical FOV: 57.2°
• Diagonal FOV: 128.7°
• Lens Mount: M12
• DORI Distance
• Detection: 52 m
• Observation: 22 m
• Recognition: 10 m
• Identification: 5 m
• Lighting
• Number of Infrared LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Number of White LEDs: 2
• Range: 30m
• Lighting Control On/Off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevents overexposure to infrared light
• HLC adjustable via client software
• Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: WDR
• SNR: ≥ 52dB
• Image Parameter Switch
• Privacy Mask: up to 4 masks
• ROI: 1 Region
• OSD Configuration
• Video
• Max. Resolution: 2304 × 1296
• Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Main Stream Resolution:
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream Frame Rate: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• Sub-Stream Resolution: 704×576, 640×480, 352×288, 320×240
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Bit Rate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main Profile
• H.265+: Compatible with Main Stream
• Main Stream Video Bit Rate: 256 Kbps to 4 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M Adaptive Ethernet Port, PoE
• Power: DC power port
• Built-in Microphone:
• Network Features
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: ONVIF
• Simultaneous Live View 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, implicit authentication
• Audio
• Audio Communication: Two-way Audio
• Audio Input
• Audio Output
• Audio Compression
• Audio Sampling Rate: 8KHz
• Ambient Noise Filtering
• Audio Bit Rate: 64 Kbps (G.711 law)
• Alarm
• Intelligent classification of people and vehicle events
• Area intrusion detection
• Line crossing detection
• People detection
• Vehicle detection
• Region entry detection
• Region exit detection
• Abandoned object detection
• Object removal detection
• Basic Detection:
• Motion detection
• Video tampering detection
• Exception (illegal login)
• Scene change detection
• Alarm Connection: Flashing white light, push message
• Output Notification: Push message
• Power
• Power Supply:
• 12V DC ± 5%, Max. 9 W
• 5.5 mm coaxial power connector.
• PoE (802.3af/at, class 0)
• Power Consumption:
• 12V DC: Max 4.2W
• PoE: Class 0
• Dimensions and Weight
• 123 × 83 × 123 mm
• 0.21 Kg
• Contains
• VIGI Network Camera
• Quick Start Guide
• Mounting Accessories
