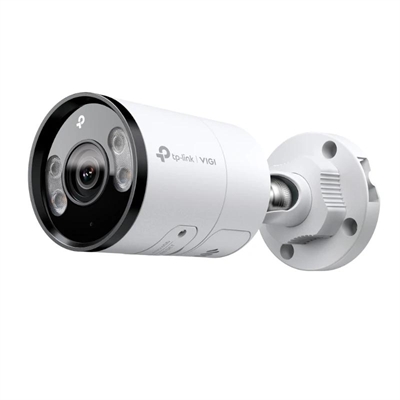

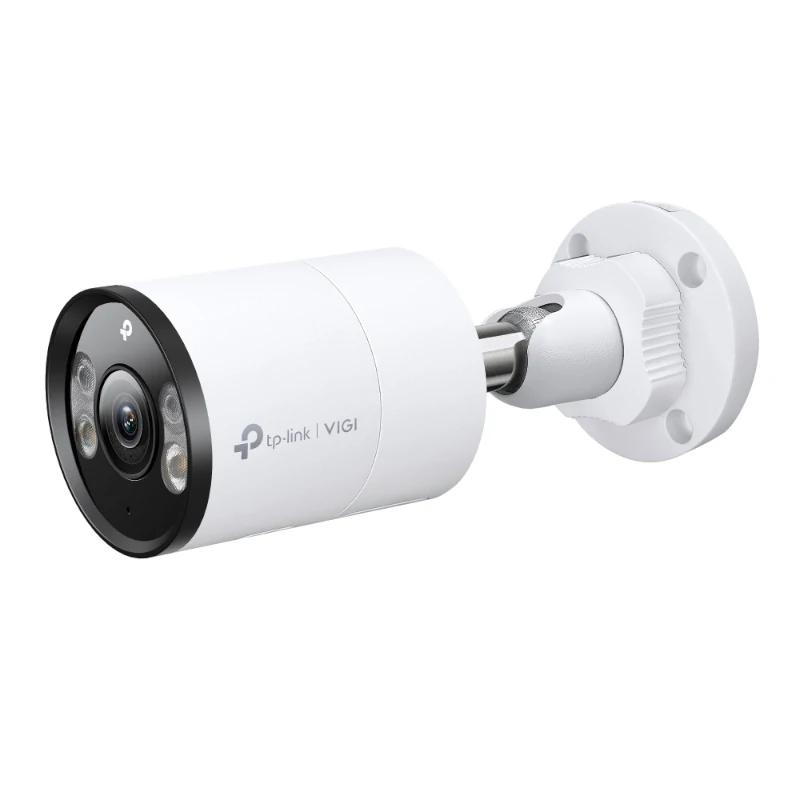

VIGI C355 5MP Metal Full-Colour Bullet IP Camera 4m

The Vigi IP Chamber Bullet C355 of TP-Link is an advanced surveillance solution with a 5MP resolution that guarantees clear and detailed images. Thanks to its metal design and vision capabilities full-color even in low light conditions, it is ideal for any environment. With a vision distance of up to 4 meters , this camera is perfect to protect your home or business.

Technical Specifications

• Brand VIGI
• Model VIGI C355(4mm)
• Camera – Image Sensor: 1/2.7” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/ Scheduled/ Auto
• Lens – Lens Type: Fixed focal length
• Focal Length: 4 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 88°
• Vertical FOV: 46°
• Diagonal FOV: 105.4°
• Lens Mount: M12*P 0.5
• DORI Distance
• Detection: 80m
• Observation: 33 m
• Recognition: 16 m
• Identification: 8 m

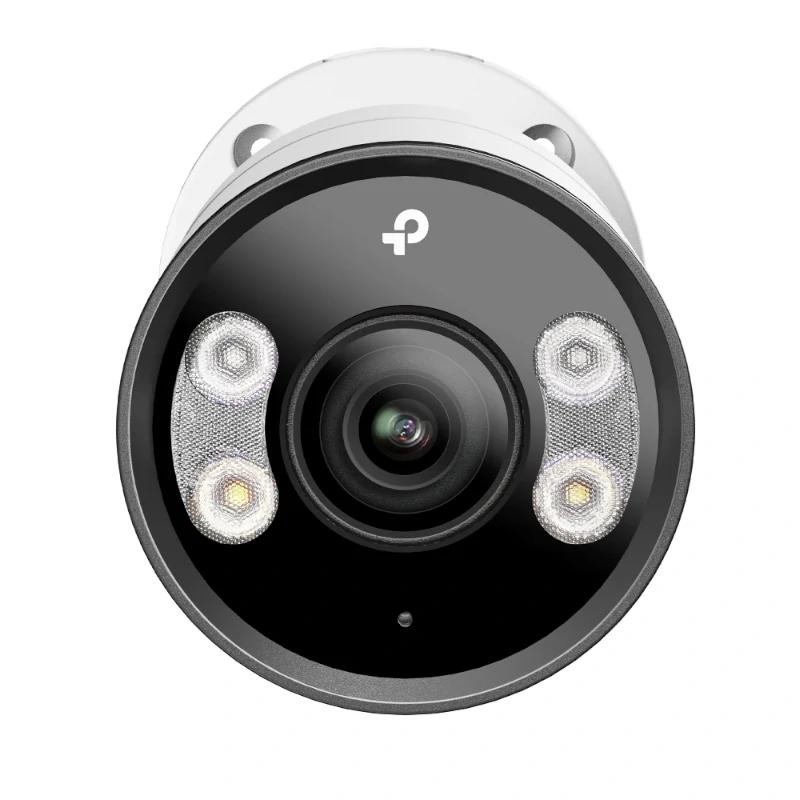

• Lighting
• Number of infrared LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Number of white LEDs: 2
• Range: 30m
• Lighting control on/off: Automatic/Scheduled/Always on/Always off
• Image and Video Image
• Image settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White balance
• Prevents overexposure to infrared light
• HLC adjustable via client software
• Image enhancement: BLC/3D DNR/HLC/SmartIR
• Wide dynamic range: 120 dB
• Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
• SNR: ≥ 52dB
• Image parameter switch
• Privacy mask: up to 4 masks
• ROI: 1 Region
• OSD settings
• Video
• Max. Resolution: 2880 X 1620
• Main Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Main Stream Resolution:
• 2880×1620
• 2688×1520
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Note: If image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Sub-Stream Resolution: 704×576, 640×480, 352×288, 320×240
• Note: If image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Bit rate control: CBR, VBR
• Video compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main Profile
• H.265+: Compatible with Main Stream
• Main Stream Video Bit Rate: 256 Kbps to 6 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M Adaptive Ethernet Port, PoE
• Reset button
• Power: DC power port
• Internal storage: Built-in memory card slot, compatible with MicroSD card, up to 256 GB
• Built-in microphone: records everything happening within a 15-foot radius of the camera
• Built-in speaker
• Features Network
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: Open Network Video Interface (Profile S)
• Simultaneous live view 3 main streams and 3 substreams
• Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS
• Web browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, implicit authentication
• Audio
• Audio Communication: Two-way audio
• Audio input
• Audio output
• Audio compression
• Audio sampling rate: 8KHz
• Ambient noise filtering
• Audio bit rate: 64 Kbps (G.711 law)
• Alarm
• Intelligent classification of people and vehicle events
• Area intrusion detection
• Line crossing detection
• Person detection
• Vehicle detection
• Region entry detection
• Region exit detection
• Abandoned object detection
• Object removal detection
• Loitering detection
• Basic detection:
• Motion detection
• Video tampering detection
• Exception (illegal login)
• Scene change detection
• Alarm linkage: Video recording with memory card, push message, flashing white light
• Output notification: Push message
• Power
• Power supply:
• 12V DC ± 5%, Max. 9 W
• 5.5 mm coaxial power plug.
• PoE: 802.3af/at, class 0, max. 10.7W
• Dimensions and weight
• 74 × 184 × 74 mm
• 0.525 kg
• Contains
• VIGI network camera
• Quick start guide
• Waterproof cable accessories
• Mounting accessories
