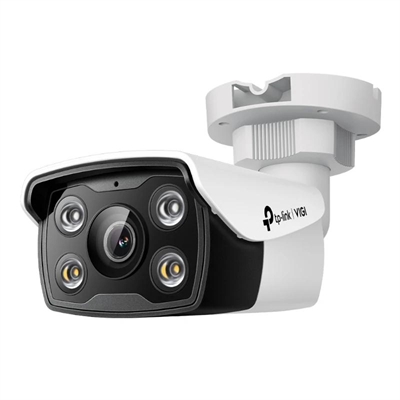

VIGI C350 5MP Full-Colour Plastic Bullet IP Camera

Technical Specifications

• Super high definition of 5MP and 24 hours full color
• Analysis of people and vehicles
• Classification of people and vehicles
• Intelligent detection
• Intelligent video enhancement technology
• Active defense and two-way audio
• IP67 waterproof
• H.265+ compression technology
• Brand VIGI
• Model VIGI C350(6mm)
• Camera – Image Sensor: 1/2.7” Progressive Scan CMOS
• Shutter speed: 1/3 to 1/10000 s
• Slow shutter
• Minimum illumination: 0.005 lux; 0 Lux with IR/white light
• Day/night mechanism: Infrared cut filter
• Day/night switch: Unified/Scheduled/Auto
• Lens – Fixed focal lens type
• Focal length 6 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 56°
• Vertical FOV: 30.5°
• Diagonal FOV: 66°
• Lens mount: M12*P 0.5
• DORI Distance
• Detection: 120 m
• Observe: 50 m
• Recognize: 24 m
• Identify: 12 m
• Illumination
• Number of infrared LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Number of White LEDs: 2
• Range: 30m
• Lighting control on/off: Automatic/Scheduled/Always on/Always off
• Image and Video Image
• Image settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White balance
• Avoid overexposure to infrared light
• HLC adjustable via client software
• Image enhancement: BLC/3D DNR/HLC/SmartIR
• Wide dynamic range: 120 dB
• SNR: ≥ 52 dB
• Image parameter switch
• Privacy mask: Up to 4 masks
• ROI: 1 Region
• OSD settings
• Video
• Max. Resolution: 2880 X 1620
• Main Stream frame rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Main Stream resolution:
• 2880×1620
• 2688×1520
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Sub-Stream frame rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Sub-Stream resolution:
• 704×576
• 640×480
• 352×288
• 320×240
• Bitrate control: CBR, VBR
• Video compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 type: High profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main profile
• H.265+: Compatible with Main Stream
• Main Stream video bitrate: 256 Kbps to 4 Mbps
• Sub-Stream video bitrate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x self-adaptive RJ45 Ethernet port 10/100M, PoE
• Reset button
• Power: DC power port
• Internal storage: Built-in memory card slot, compatible with MicroSD card, up to 256 GB
• Built-in microphone: Yes; Records everything happening within a 15-foot radius of the camera
• Built-in speaker
• Features Network
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: Open Network Video Interface (Profile S)
• Simultaneous live view 3 main streams and 3 substreams
• Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS
• Web browser:
• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, implicit authentication
• Alarm and Event Management
• Smart event
• Classification of people and vehicles
• Intrusion detection
• Line crossing detection
• Region entering detection
• Region exiting detection
• Abandoned object detection
• Object removal detection
• Loitering detection
• Smart frame
• People detection
• Vehicle detection
• Basic event
• Motion detection
• Video tampering detection
• Exception (illegal login)
• Scene change detection
• Alarm linkage
• Video recording on memory card
• Sending messages
• Audible warning
• Flashing white light
• Output notification: Push message
• Power
• Power supply
• 12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 10.7 W
• Dimensions and weight
• 74 × 184 × 74 mm
• 0.525 Kg
• Contains
• VIGI network camera
• Quick start guide
• Waterproof cable accessories
• Mounting accessories
• Review date 04-10-2024 by RTY
