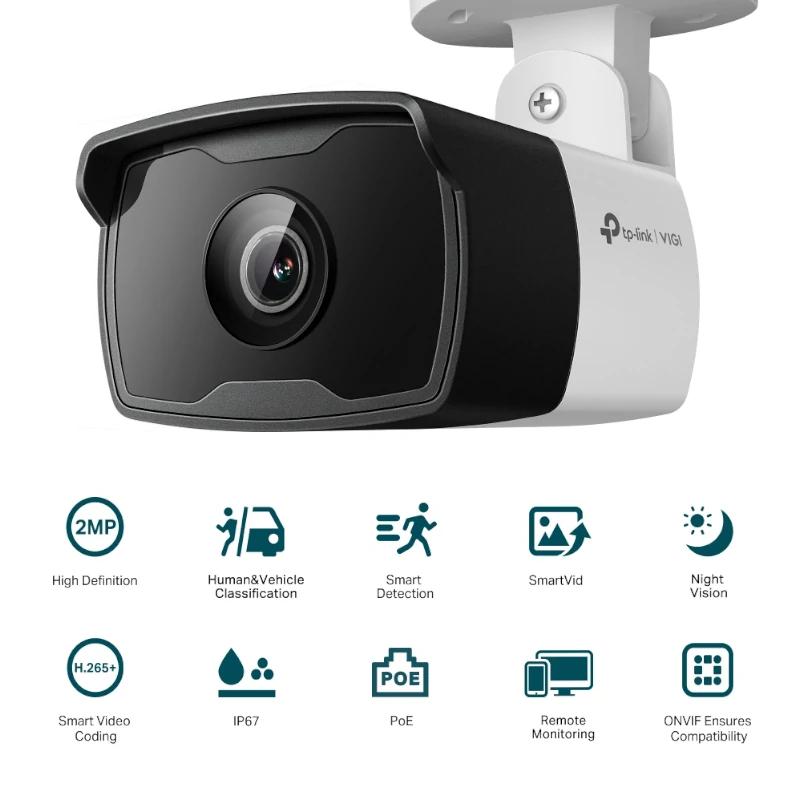

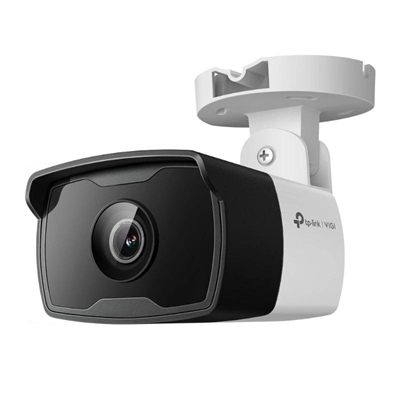

VIGI C320I 2MP Bullet IP Camera Plastic IR 6mm

Discover the Vigi IP Chamber Bullet C320i of tp-link , an advanced surveillance solution that guarantees security and tranquility in your home or business. With a 2mp resolution and a 6mm lens, this camera provides crisp and clear images both day and night thanks to its IR technology. Durability.

Technical Specifications

• High definition of 2MP. The VIGI C320I camera captures sharp, high-quality images at a resolution of up to 1920×1080 pixels.
• Human and vehicle classification. The integrated AI algorithms analyze the image distinguishing humans and vehicles from other objects.
• Smart detection. Receive notifications when someone accesses restricted areas, covers the camera, and when objects are removed or abandoned.
• Intelligent image enhancement. The integrated technologies Smart IR, WDR, 3D DNR, and Night Vision process the videos to improve their quality and facilitate later viewing.
• H.265+ video. Saves storage space and bandwidth without sacrificing video image quality. This allows you to save on monitoring costs.
• IP67 water-resistant. The camera is hermetically sealed against water and dust to ensure high performance outdoors.
• Easy PoE installation. Easily connect and power the VIGI camera via an RJ45 cable that transmits data and power, without the need for any power adapter.
• 2.8mm, 4mm, or 6mm lens. The VIGI camera is available in 3 different formats to better suit your security needs.
• Simple control. Manage your business’s security through 3 methods: NVR UI, the VIGI App, and VIGI Security Manager.
• Brand VIGI
• Model VIGI C320I(6mm)
• Camera – Image Sensor: 1/3 Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: Color: 0.01 Lux; 0 Lux with IR
• Day/Night Mechanism: Infrared Cut Filter
• Day/Night Switch: Day/Night/Auto/Scheduling
• Lens – Lens Type: Fixed Focal Lens
• Focal Length: 6 mm
• Aperture: F2.0
• FOV:
• Horizontal FOV: 47.7°
• Vertical FOV: 26.5°
• Diagonal FOV: 56°
• Lens Mount: M12
• DORI Distance
• Detection: 91 m
• Observation: 38 m
• Recognition: 18 m
• Identification: 9 m
• Lighting
• Number of Infrared LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Lighting Control On/Off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52 dB
• Image Parameter Switch
• Privacy Mask: Up to 4 masks
• ROI: 1 Region
• OSD Configuration
• Video
• Max Resolution: 1920 × 1080
• Main Stream Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Main Stream Resolution:
• 1920×1080
• 1280×960
• 1280×720
• Sub-Stream Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Sub-Stream Resolution:
• 704×576
• 640×480
• 352×288
• 320×240
• Bit Rate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: High Profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main Profile
• H.265+: Compatible with Main Stream
• Main Stream Video Bit Rate: 256 Kbps to 4 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M self-adaptive Ethernet port, PoE
• Power: DC power input port
• Network Features
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: Open Network Video Interface (Profile S)
• Simultaneous Live View: 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS
• Web Browser:
• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, implicit authentication
• Alarm and Event Management
• Smart Event
• Person and vehicle classification
• Intrusion detection
• Line crossing detection
• Region entering detection
• Region exiting detection
• Abandoned object detection
• Object removal detection
• Loitering detection
• Smart frame
• Person detection
• Vehicle detection
• Basic Event
• Motion detection
• Video tampering detection
• Exception (illegal login)
• Scene change detection
• Alarm Link
• Video recording on memory card
• Message sending
• Audible warning
• Flashing white light
• Output Notification: Push message
• Power
• Power Supply
• 12 V DC ± 5%, 5.5 mm coaxial power connector
• PoE (802.3af/at, class 0)
• Power Consumption
• Maximum: 5 W
• Typical (Day Mode): 1.32 W
• Typical (Night Mode with IR LED): 2.68 W
• Dimensions and Weight
• 73× 174 × 71 mm
• 0.2 Kg
• Contains
• VIGI network camera
• Quick start guide
• Waterproof cable accessories
• Mounting accessories
