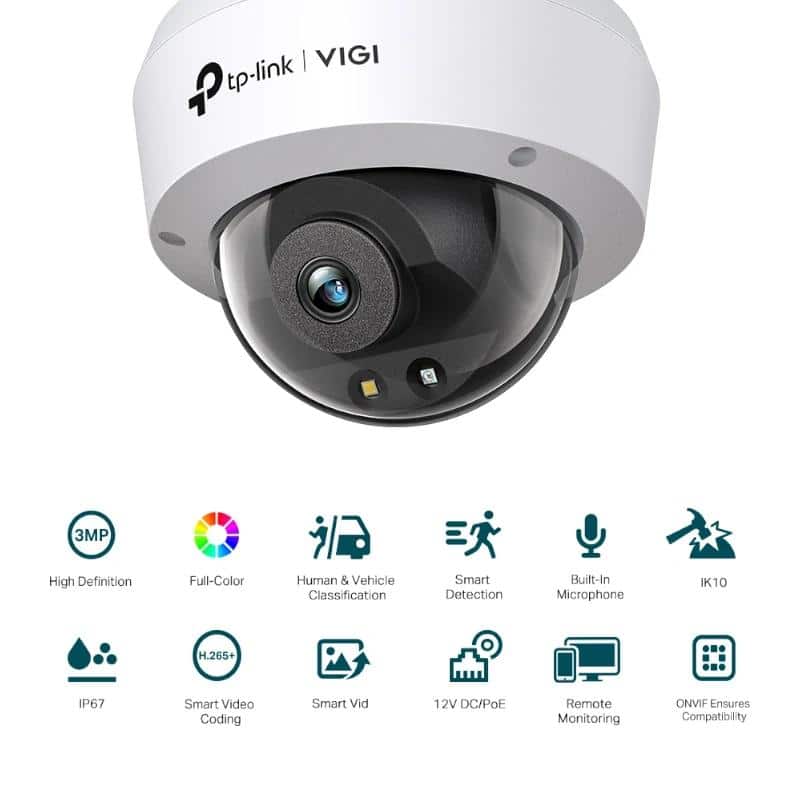

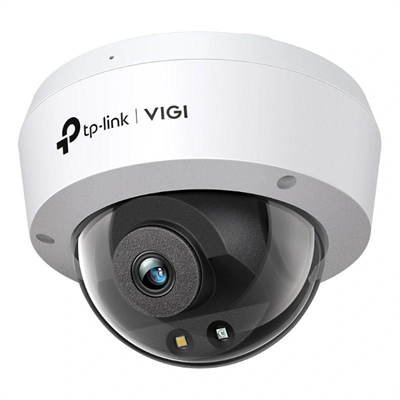

VIGI C230 3MP Full-Colour Dome IP Camera Plastic 2

Discover the VIGI Cámara IP Domo C230 3MP from TP-LINK, the perfect solution for monitoring your home or business. With its elegant and functional design, this camera offers full-color images for clear and precise viewing, even in low-light conditions.

• 3MP resolution for sharp and precise details.
• Color night vision for 24/7 security.
• Easy connectivity thanks to its plug-and-play design.
• Durable construction made of plastic for increased durability.

Technical Specifications

• Brand VIGI
• Model VIGI C230(2.8mm)
• Camera – Image Sensor: 1/2.8 progressive scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: Color: 0.005 Lux; 0 Lux with white/IR light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: unified/scheduled/automatic
• Digital Noise Reduction: 3D DNR
• WDR: DWDR
• Weatherproof Rating: IP67
• IR Working Distance: 30m
• Pan/Tilt Range: Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
• Lens – Lens Type: fixed focal
• Focal Length: 2.8 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 107.5°
• Vertical FOV: 57.2°
• Diagonal FOV: 128.7°
• Lens Mount: M12
• DORI Distance
• Detection: 52 m
• Observe: 22 m
• Recognize: 10 m
• Identify: 5 m
• Lighting
• IR LED:
• Quantity: 1
• Range: 30m
• Wavelength: 850 nm
• White LEDs:
• Quantity: 1
• Height: 30m
• Lighting Control On/Off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevents overexposure to infrared light
• HLC adjustable via client software
• Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52 dB
• Image Parameter Switch
• Privacy Mask: Up to 4 masks
• ROI: 1 region
• OSD Configuration
• Video
• Max. Resolution: 2304 × 1296
• Main Stream Frame Rate:
• 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Main Stream Resolution:
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Sub-Stream Frame Rate:
• 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Sub-Stream Resolution:
• 704×576
• 640×480
• 352×288
• 320×240
• Bit Rate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main Profile
• H.265+: Compatible with Main Stream
• Main Stream Video Bit Rate: 256 Kbps to 4 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 self-adaptive RJ45 10/100M Ethernet port
• DC Power Port
• Built-in Microphone
• Network Features
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: ONVIF
• Simultaneous Live View 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, implicit authentication
• Alarm and Event Management
• Smart Event
• Person and vehicle classification
• Area intrusion detection
• Line crossing detection
• Person detection
• Vehicle detection
• Region entry detection
• Region exit detection
• Abandoned object detection
• Object removal detection
• Basic Event
• Motion detection
• Video tampering detection
• Exception (illegal login)
• Output Notification: Push message
• Alarm Link: Flashing white light, push message
• Power
• Power Consumption:
• 12V DC: Max. 4.7 W
• PoE Class 0
• Power Supply:
• 12 V DC ± 5%, 5.5 mm coaxial power connector
• PoE (802.3af/at, class 0)
• Dimensions and Weight
• 115 × 115 × 86 mm
• 0.28 g
• Contains

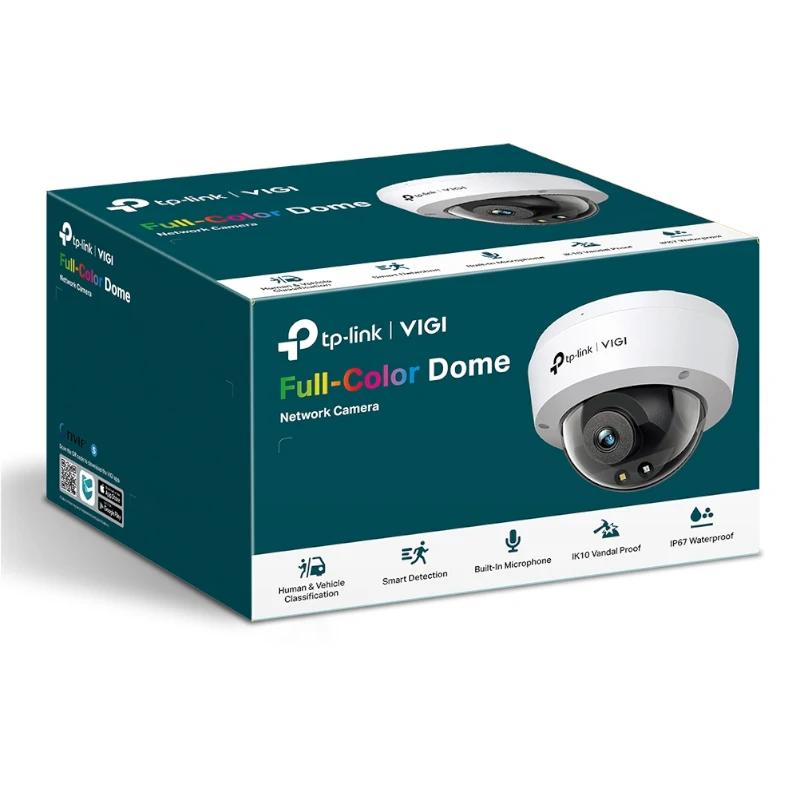

• VIGI Network Camera
• Quick Start Guide
• Waterproof cable accessories
• Mounting accessories
