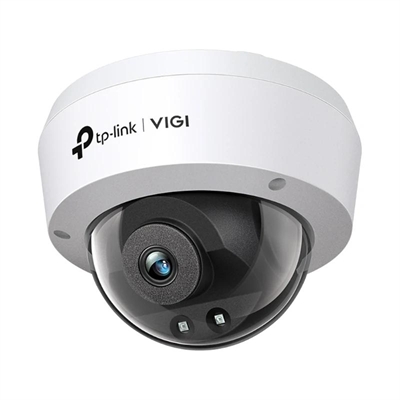

VIGI C220I 2MP IR Dome IP Camera Plastic 2.8mm

The Vigi IP Domo C220I 2MP tp-link is ideal for the surveillance of your home or business. With a 2MP resolution and a 2.8mm lens, it offers clear and clear images, even in low light conditions thanks to its IR technology. This device is easy to install and has a robust plastic housing, which makes it resistant and lasting.

Technical Specifications

• Brand VIGI
• Model VIGI C220I(2.8mm)
• Camera – Image Sensor: 1/3″ progressive scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Day/Night Switch: unified/scheduled/automatic
• Digital Noise Reduction: 3D DNR
• WDR: DWDR
• Weatherproof Rating: IP67
• IR Working Distance: 30m
• Field of View
• 2.8 mm: 88.2°/48.7°/106.5°(H/V/D)
• Lens – Lens Type: fixed focal
• Focal Length: 2.8 mm
• Aperture: F2.2
• FOV:
• Horizontal FOV: 88.2°
• Vertical FOV: 48.7°
• Diagonal FOV: 106.5°
• Lens Mount: M12
• DORI Distance
• Detection: 45 m (149 ft)
• Observation: 19 m (62 ft)
• Recognition: 9 m (30 ft)
• Identification: 5 m (15 ft)
• Lighting
• Number of LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Lighting Control On/Off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevents overexposure to infrared light
• HLC adjustable via client software
• Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52 dB
• Image Parameter Switch
• Privacy Mask: Up to 4 masks
• ROI: 1 region
• OSD Configuration
• Video
• Max. Resolution: 1920 × 1080
• Main Stream Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Main Stream Resolution:
• 1920×1080
• 1280×960
• 1280×720
• Sub-Stream Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Sub-Stream Resolution:
• 704×576
• 640×480
• 352×288
• 320×240
• Bit Rate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Compatible with Main Stream
• H.264 Type: Main Profile/High Profile
• H.265 Type: Main Profile
• H.265+: Compatible with Main Stream
• Main Stream Video Bit Rate: 256 Kbps to 4 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 self-adaptive RJ45 10/100M Ethernet port
• Network Features
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: ONVIF
• Simultaneous Live View 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR
• Web Browser: Network
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, implicit authentication
• Alarm and Event Management
• Smart Event
• Person and vehicle classification
• Area intrusion detection
• Line crossing detection
• Person detection
• Vehicle detection
• Region entry detection
• Region exit detection
• Abandoned object detection
• Object removal detection
• Basic Event
• Motion detection
• Video tampering detection
• Alarm Link: Push message
• Power
• Power Consumption: PoE: Class 0
• Power Supply: PoE (802.3af/at, class 0)
• IK10 vandal-resistant
• Protection: IP67, IK10
• Dimensions and Weight
• 115 × 115 × 86 mm
• 0.26 g
• Contains
• VIGI Network Camera
• Quick Start Guide
• Waterproof cable accessories
• Mounting accessories
