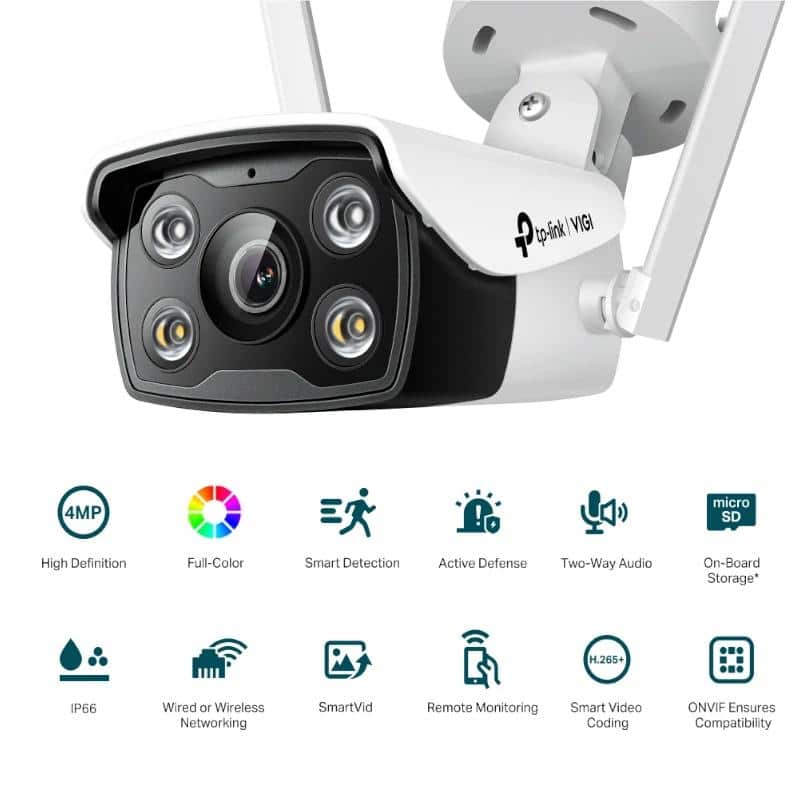

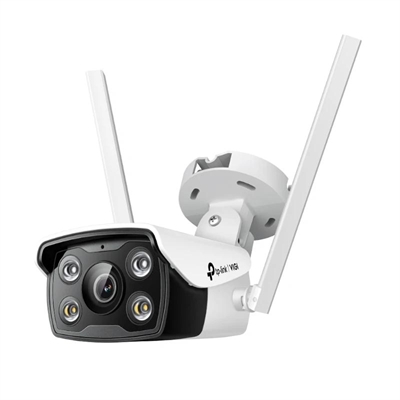

VIGI Bullet IP Camera C340-W 4MP Plastic FColor 4

Technical Specifications

• Brand VIGI
• Model VIGI C340-W(4mm)
• Camera – Image Sensor: 1/3” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Day/Night/Auto/Programmable Switching
• Lens – Lens Type: Fixed focal length
• Focal Length: 4 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 79°
• Vertical FOV: 43°
• Diagonal FOV: 93°
• Lens Mount: M12
• DORI Distance
• Detection: 80 m
• Observation: 33 m
• Recognition: 16 m
• Identification: 8 m
• Illumination
• Number of Infrared LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Number of White LEDs: 2
• Range: 30m
• Lighting Control On/Off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Adjustable via Client Software
• Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52dB
• Image Parameter Switch
• Privacy Mask: Up to 4 masks
• ROI: 1 Region
• OSD Configuration
• Video
• Max. Resolution: 2560 x 1440
• Main Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Main Stream Resolution:
• 2560×1440
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Sub-Stream Resolution: 640×480, 352×288, 320×240
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Bit Rate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main Profile
• H.265+: Compatible with Main Stream
• Main Stream Video Bit Rate: 256 Kbps to 4 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Standards: IEEE 802.11b/g/n
• Wi-Fi Channels:
• UN: 1-13
• US: 1-11
• Frequency: 2.4 GHz
• Wireless Transmission Power: High
• Radio Bandwidth
• 20M
• 40M
• Wireless Rate:
• 11Mbps(802.11b)
• 54Mbps(802.11g)
• 150Mbps(802.11n)
• Wireless Security: WPA/WPA2-PSK
• Wireless Mode: AP, AP Client
• Features Network
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: Open Network Video Interface (Profile S)
• Simultaneous Live View 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, Digest authentication
• Network Storage: NAS (NFS, SMB/CIFS)
• Audio
• Audio Communication: Two-Way Audio
• Audio Input
• Audio Output
• Audio Compression
• Audio Sampling Rate: 8KHz
• Ambient Noise Filtering
• Audio Bit Rate: 64 Kbps (G.711 law)
• Alarm
• Smart Event:
• Zone Intrusion Detection
• Line Crossing Detection
• Person Detection
• Basic Event:
• Motion Detection
• Video Tampering Detection
• Exception (illegal login)
• Alarm Linkage: Video recording with memory card, message push, audible alert, flashing white light
• Output Notification: Push Message
• Power
• Power Supply:
• 12V DC ± 5%
• 5.5 mm coaxial power connector
• Power Consumption:
• Maximum: 8.5 W
• Typical (Day Mode): 2.14 W
• Typical (Night Mode with IR LED): 3.66 W
• Typical (Night Mode with White LED): 3.84 W
• Dimensions and Weight
• 80 × 173 × 71 mm (without antennas)
• 0.31 Kg
• Contains
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Accessories
• Power Adapter
• Mounting Accessories
