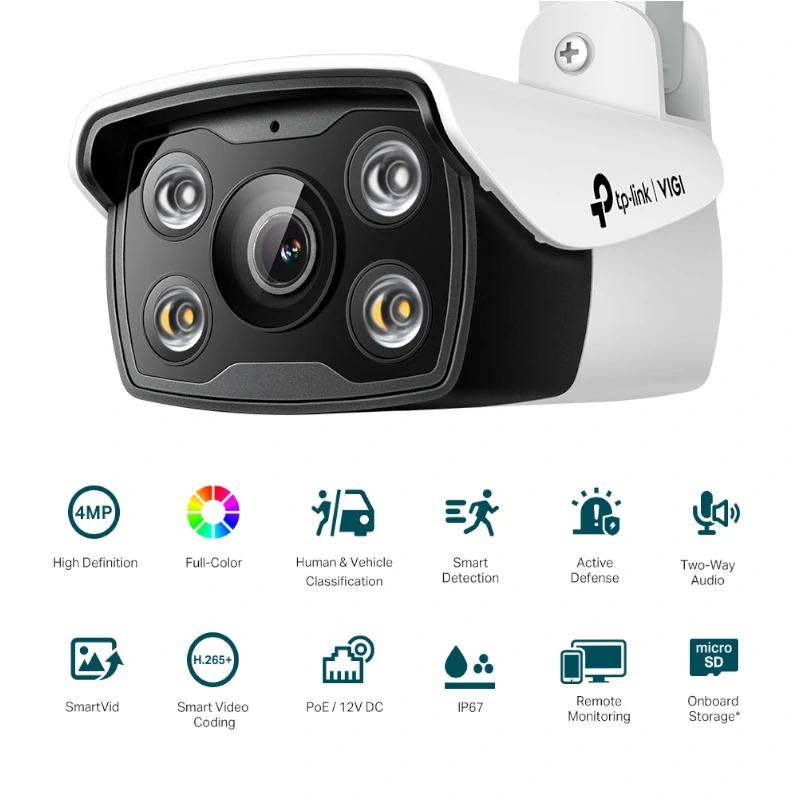

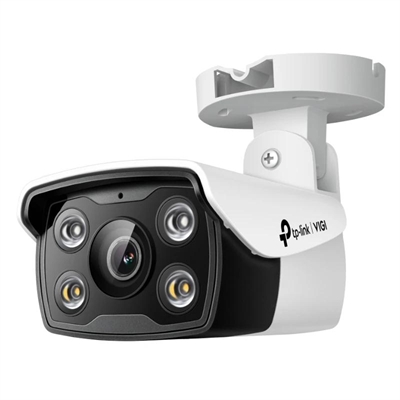

VIGI Bullet IP Camera C340 4MP Plastic Full-Colour

Discover the Vigi IP Chamber Bullet C340 4MP of tp-link , an advanced security solution designed to offer high-resolution images. With its full-colored technology, this camera guarantees effective surveillance both day and night. Ideal for exteriors, its plastic construction makes it resistant to various climatic conditions.

• 4MP resolution for crisp.


  Technical Specifications

  • Brand VIGI
  • Model VIGI C340(2.8mm)
  • Camera – Image Sensor: 1/3″ Progressive Scan CMOS
  • Shutter Speed: 1/3 to 1/10000 s
  • Slow Shutter
  • Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
  • Day/Night Mechanism: IR Cut Filter
  • Day/Night Switch: Unified/ Scheduled/ Auto
  • Lens – Type Fixed focal lens
  • Focal Length: 2.8 mm
  • Aperture: F1.6
  • FOV:
  • Horizontal FOV: 96.1°
  • Vertical FOV: 52°
  • Diagonal FOV: 113.6°
  • Lens Mount: M12
  • DORI Distance
  • Detection: 64 m
  • Observe: 27 m
  • Recognize: 13 m
  • Identify: 6 m
  • Illumination
  • Number of infrared LEDs: 2
  • Range: 30m
  • Wavelength: 850 nm
  • Number of white LEDs: 2
  • Range: 30m
  • Lighting control on/off: Automatic/Scheduled/Always on/Always off
  • Image and Video Image
  • Image Settings:
  • Mirror
  • Brightness
  • Contrast
  • Saturation
  • Sharpness
  • Exposure
  • WDR
  • White Balance
  • Adjustable via Client Software
  • Rotation (90°/270°)
  • Image Enhancement: BLC/3D DNR/HLC/SmartIR
  • Wide Dynamic Range: DWDR
  • SNR: ≥ 52dB
  • Image Parameter Switch
  • Privacy Mask: up to 4 masks
  • ROI: 1 Region
  • OSD Configuration
  • Video
  • Max. Resolution: 2560 x 1440
  • Main Stream Frame Rate:
  • 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
  • 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
  • Main Stream Resolution:
  • 2560×1440
  • 2304×1296
  • 2048×1280
  • 1920×1080
  • 1280×720
  • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
  • Sub-Stream Frame Rate:
  • 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
  • 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
  • Sub-Stream Resolution: 640×480, 352×288, 320×240
  • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
  • Bit Rate Control: CBR, VBR
  • Video Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264
  • H.264 Type: Main Profile/High Profile
  • H.264+: Compatible with Main Stream
  • H.265 Type: Main Profile
  • H.265+: Compatible with Main Stream
  • Main Stream Video Bit Rate: 256 Kbps to 4 Mbps
  • Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
  • Interfaces – Network Interface: 1 x RJ45 10/100M Adaptive Ethernet Port, PoE
  • Reset Button
  • Power: DC power port
  • Internal Storage: Built-in memory card slot, compatible with MicroSD card, up to 256 GB
  • Built-in Microphone: records everything happening within a 15-foot radius of the camera
  • Built-in Speaker
  • Network Features
  • Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
  • ONVIF
  • API: Open Network Video Interface (Profile S)
  • Simultaneous Live View 3 main streams and 3 sub-streams
  • Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
  • Web Browser:
  • Google Chrome 57 and above
  • Firefox 52 and above
  • Safari 11 and above
  • Microsoft Edge 91 and above
  • Cloud
  • Security: Password protection, HTTPS encryption, IP address filtering, Digest authentication
  • Network Storage: NAS (NFS, SMB/CIFS)
  • Audio
  • Audio Communication: Two-way Audio
  • Audio Input
  • Audio Output
  • Audio Compression
  • Audio Sampling Rate: 8KHz
  • Environmental Noise Filtering
  • Audio Bit Rate: 64 Kbps (G.711 law)
  • Alarm
  • Detection:
  • Classification of people and vehicles
  • Intrusion detection in areas
  • Line crossing detection
  • People detection
  • Vehicle detection
  • Entry detection in regions
  • Exit detection from regions
  • Abandoned object detection
  • Object removal detection
  • Basic Event
  • Motion detection (enhanced with classification of people and vehicles for more accurate alerts)
  • Video tampering detection
  • Exception (illegal login)
  • Alarm Link
  • Video recording with memory card
  • Push message
  • Sound warning
  • Flashing white light
  • Output Notification: push message
  • Power
  • Power Supply:
  • 12V DC ± 5%, Max. 10.5 W
  • 5.5 mm coaxial power plug
  • PoE (802.3af/at, class 0)
  • Power Consumption:
  • Maximum: 7 W
  • Typical (Day Mode): 1.5 W
  • Typical (Night Mode with IR LED): 3.4 W
  • Typical (Night Mode with White LED): 3.0 W
  • Dimensions and Weight
  • 78 × 174 × 70 mm
  • 0.28 Kg
  • Contains
  • VIGI network camera
  • Quick start guide
  • Waterproof cable accessories
  • Mounting accessories
