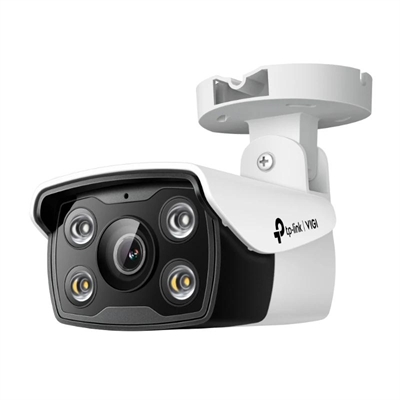

VIGI Bullet IP Camera C340 4MP Plastic Full-Colour

Discover the VIGI Cámara IP Bullet C340 4MP from TP-LINK, an advanced security solution for your home or business. With its robust plastic design and Full-Color technology, this camera provides sharp and clear images even in low-light conditions.

• 4MP Resolution: Captures exceptional details for effective surveillance.
• Color Vision: Enjoy vibrant color images both day and night.
• Easy Installation: Easy to mount and set up, ideal for any user.
• Secure Connectivity: Keep your data protected with advanced security protocols.

Technical Specifications

• Brand VIGI
• Model VIGI C340(6mm)
• Camera – Image Sensor: 1/3″ Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/Scheduled/Auto
• Lens – Lens Type: Fixed focal lens
• Focal Length: 6 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 49.3°
• Vertical FOV: 26.8°
• Diagonal FOV: 57.4°
• Lens Mount: M12
• DORI Distance
• Detection: 128 m
• Observation: 53 m
• Recognition: 26 m
• Identification: 13 m
• Illumination
• Number of Infrared LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Number of White LEDs: 2
• Range: 30m
• Light Control On/Off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Adjustable via Client Software
• Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52dB
• Image Parameter Switch
• Privacy Mask: up to 4 masks
• ROI: 1 Region
• OSD Settings
• Video
• Max. Resolution: 2560 x 1440
• Main Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Main Stream Resolution:
• 2560×1440
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Note: If image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Sub-Stream Resolution: 640×480, 352×288, 320×240
• Note: If image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Bit Rate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main Profile
• H.265+: Compatible with Main Stream
• Main Stream Video Bit Rate: 256 Kbps to 4 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x 10/100M Adaptive RJ45 Ethernet Port, PoE
• Reset Button
• Power: DC Power Port
• Internal Storage: Built-in memory card slot, compatible with MicroSD card, up to 256 GB
• Built-in Microphone: records everything happening within a 15-foot radius of the camera
• Built-in Speaker
• Features Network
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: Open Network Video Interface (Profile S)
• Simultaneous Live View: 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, Digest authentication
• Network Storage: NAS (NFS, SMB/CIFS)
• Audio
• Audio Communication: Two-way Audio
• Audio Input
• Audio Output
• Audio Compression
• Audio Sampling Rate: 8KHz
• Ambient Noise Filtering
• Audio Bit Rate: 64 Kbps (G.711 law)
• Alarm
• Detection:
• Classification of people and vehicles
• Intrusion detection in areas
• Line crossing detection
• People detection
• Vehicle detection
• Entry detection in regions
• Exit detection from regions
• Abandoned object detection
• Object removal detection
• Basic Event
• Motion detection (enhanced with classification of people and vehicles for more accurate alerts)
• Video tampering detection
• Exception (illegal login)
• Alarm Link
• Video recording with memory card
• Push message
• Sound warning
• Flashing white light
• Output Notification: push message
• Power
• Power Supply:
• 12V DC ± 5%, Max. 10.5 W
• 5.5 mm coaxial power plug
• PoE (802.3af/at, class 0)
• Power Consumption:
• Maximum: 7 W
• Typical (Day Mode): 1.5 W
• Typical (Night Mode with IR LED): 3.4 W
• Typical (Night Mode with White LED): 3.0 W
• Dimensions and Weight
• 78 × 174 × 70 mm
• 0.28 Kg
• Contains
• VIGI Network Camera
• Quick Start Guide
• Waterproof cable accessories
• Mounting accessories
