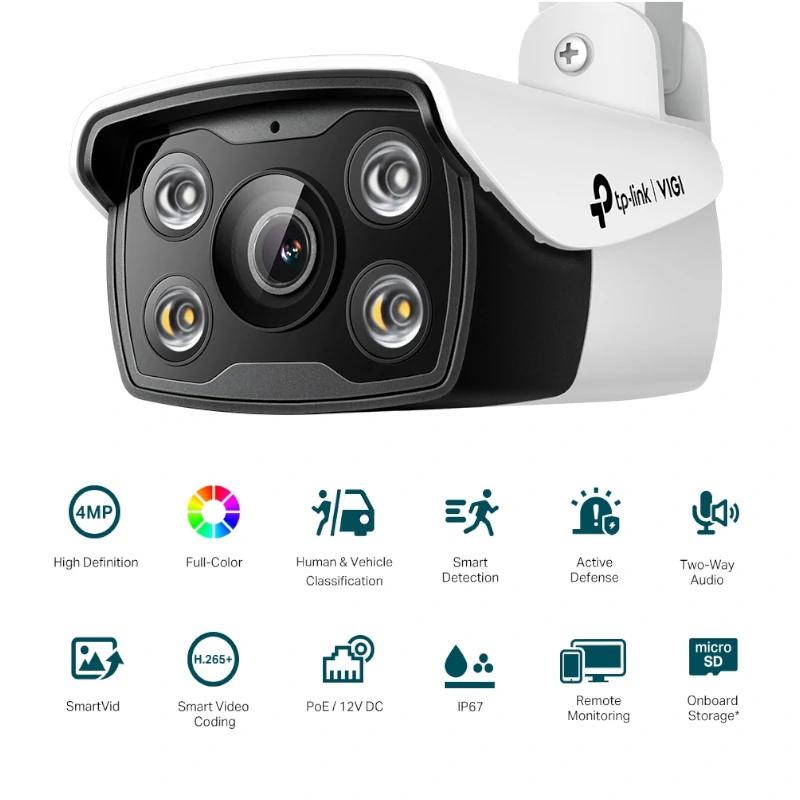

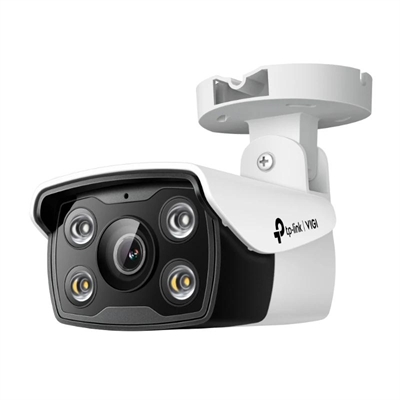

VIGI Bullet IP Camera C340 4MP Plastic Full-Colour

Discover the Vigi IP Chamber Bullet C340 of TP-Link , an advanced surveillance solution with a 4MP resolution that guarantees clear and clear images at any time of the day. Its plastic design and full-color technology offer excellent image quality, even in low light conditions.

ideal for the safety of your home or business, this camera is easy to install and use, allowing you exterior.

Technical Specifications

• Brand VIGI
• Model VIGI C340(4mm)
• Camera – Image Sensor: 1/3″ Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/Scheduled/Auto
• Lens – Lens Type: Fixed focal length
• Focal Length: 4 mm
• Aperture: F1.6
• FOV:
• Horizontal FOV: 80°
• Vertical FOV: 43.2°
• Diagonal FOV: 94.2°
• Lens Mount: M12
• DORI Distance
• Detection: 80 m
• Observe: 33 m
• Recognize: 16 m
• Identify: 8 m
• Lighting
• Number of Infrared LEDs: 2
• Range: 30m
• Wavelength: 850 nm
• Number of White LEDs: 2
• Range: 30m
• Lighting Control On/Off: Automatic/Scheduled/Always On/Always Off
• Image and Video Image
• Image Settings:
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Adjustable by Client Software
• Rotation (90°/270°)
• Image Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52dB
• Image Parameter Switch
• Privacy Mask: up to 4 masks
• ROI: 1 Region
• OSD Configuration
• Video
• Max. Resolution: 2560 x 1440
• Frame Rate Main Stream:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Main Stream Resolution:
• 2560×1440
• 2304×1296
• 2048×1280
• 1920×1080
• 1280×720
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Sub-Stream Frame Rate:
• 50 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
• 60 Hz: 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps, 30 fps
• Sub-Stream Resolution: 640×480, 352×288, 320×240
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20 fps.
• Bit Rate Control: CBR, VBR
• Video Compression:
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Compatible with Main Stream
• H.265 Type: Main Profile
• H.265+: Compatible with Main Stream
• Main Stream Video Bit Rate: 256 Kbps to 4 Mbps
• Sub-Stream Video Bit Rate: 64 Kbps to 512 Kbps
• Interfaces – Network Interface: 1 x RJ45 10/100M Adaptive Ethernet Port, PoE
• Reset Button
• Power: DC Power Port
• Internal Storage: Built-in memory card slot, compatible with MicroSD card, up to 256 GB
• Built-in Microphone: records everything happening within a 15-foot radius of the camera
• Built-in Speaker
• Features Network
• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• API: Open Network Video Interface (Profile S)
• Simultaneous Live View 3 Main Streams and 3 Sub Streams
• Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser:
• Google Chrome 57 and above
• Firefox 52 and above
• Safari 11 and above
• Microsoft Edge 91 and above
• Cloud
• Security: Password protection, HTTPS encryption, IP address filtering, Digest authentication
• Network Storage: NAS (NFS, SMB/CIFS)
• Audio
• Audio Communication: Two-way Audio
• Audio Input
• Audio Output
• Audio Compression
• Audio Sampling Rate: 8KHz
• Environmental Noise Filtering
• Audio Bit Rate: 64 Kbps (G.711 law)
• Alarm
• Detection:
• Person and vehicle classification
• Intrusion detection in areas
• Line crossing detection
• Person detection
• Vehicle detection
• Entry detection in regions
• Exit detection from regions
• Abandoned object detection
• Object removal detection
• Basic Event
• Motion detection (enhanced with person and vehicle classification for more accurate alerts)
• Video tampering detection
• Exception (illegal login)
• Alarm Link
• Video recording with memory card
• Push message
• Sound warning
• Flashing white light
• Output Notification: push message
• Power
• Power Supply:
• 12V DC ± 5%, Max. 10.5 W
• 5.5 mm coaxial power plug
• PoE (802.3af/at, class 0)
• Power Consumption:
• Max: 7 W
• Typical (Day Mode): 1.5 W
• Typical (Night Mode with IR LED): 3.4 W
• Typical (Night Mode with White LED): 3.0 W
• Dimensions and Weight
• 78 × 174 × 70 mm
• 0.28 Kg

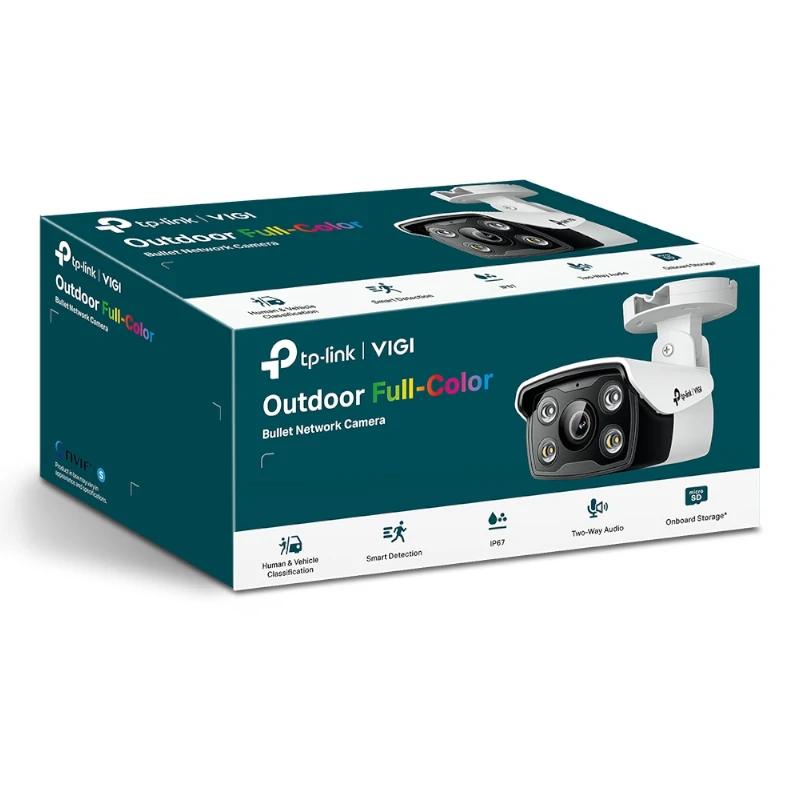

• Contains
• VIGI Network Camera
• Quick Start Guide
• Waterproof cable accessories
• Mounting accessories
• Review Date 04-10-2024 by RTY
