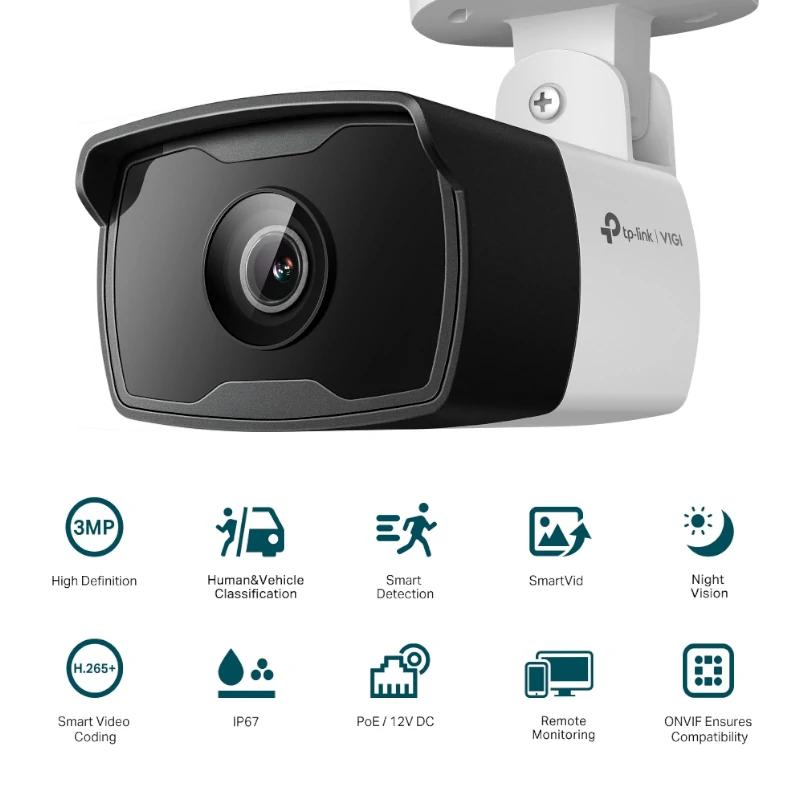

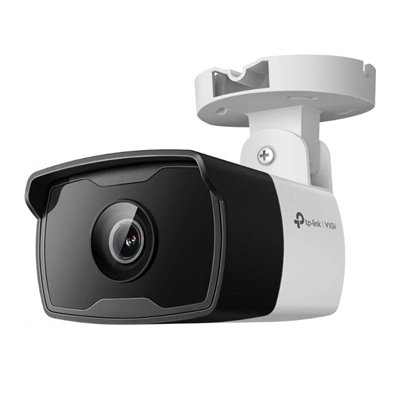

VIGI Bullet IP Camera C330I 3MP Plastic IR 2.8mm

Discover the Vigi IP Chamber Bullet C330i 3MP of TP-Link, designed to offer you high quality surveillance with its 3MP resolution and 2.8mm lens. This outdoor camera has infrared technology, allowing a clear vision even in low light conditions.

• 3MP resolution for crisp.


  Technical Specifications

  • Super high definition of 3MP. The VIGI C330I camera captures sharp, high-quality images at a resolution of up to 2304×1296 pixels.
  • Human and vehicle classification. The integrated AI algorithms analyze the image distinguishing humans and vehicles from other objects.
  • Intelligent detection. Receive notifications when someone accesses restricted areas, covers the camera, and when objects are removed or abandoned.
  • Intelligent image enhancement. The integrated technologies Smart IR, WDR, 3D DNR, and Night Vision process the videos to improve their quality and facilitate later viewing.
  • H.265+ video. Saves storage space and bandwidth without sacrificing video image quality. This can help reduce monitoring costs.
  • IP67 water-resistant. The camera is hermetically sealed against water and dust to ensure high performance outdoors.
  • PoE and 12V DC power supply. Choose the method that best fits your security installation.
  • 2.8mm, 4mm, or 6mm lens. The VIGI camera is available in 3 different formats to better suit your security needs.
  • Simple Control. Manage your business’s security through 3 methods: NVR UI, the VIGI App, and VIGI Security Manager.
  • Brand VIGI
  • Model VIGI C330I(2.8mm)
  • Camera – Image Sensor: 1/2.8” Progressive Scan CMOS
  • Shutter Speed: 1/3 to 1/10000 s
  • Slow Shutter
  • Minimum Illumination: Color: 0.01 lux; 0 Lux with IR light
  • Day/Night Mechanism: IR Cut Filter
  • Day/Night Switch: Unified/Scheduled/Auto
  • Lens – Fixed focal length lens type
  • Focal Length 2.8 mm
  • Aperture: F2.2
  • FOV:
  • Horizontal FOV: 97.8°
  • Vertical FOV: 52.9°
  • Diagonal FOV: 117.3°
  • Lens Mount: M12
  • DORI Distance
  • Detection: 49 m
  • Observation: 20 m
  • Recognition: 10 m
  • Identification: 5 m
  • Illumination
  • Number of infrared LEDs: 2
  • Range: 30m
  • Wavelength: 850 nm
  • Lighting control on/off: Automatic/Scheduled/Always On/Always Off
  • Image and Video Image
  • Image settings:
  • Mirror
  • Brightness
  • Contrast
  • Saturation
  • Sharpness
  • Exposure
  • WDR
  • White balance
  • Prevents overexposure to infrared light
  • HLC adjustable via client software
  • Rotation (90°/270°)
  • Image enhancement: BLC/3D DNR/HLC/SmartIR
  • Wide dynamic range: DWDR
  • SNR: ≥ 52 dB
  • Image parameter switch
  • Privacy mask: Up to 4 masks
  • ROI: 1 Region
  • OSD settings
  • Video
  • Max. Resolution: 2304 × 1296
  • Main Stream Frame Rate:
  • 1 fps, 5 fps, 10 fps, 15 fps, 20 fps, 25 fps
  • Main Stream Resolution:
  • 2304×1296
  • 2048×1280
  • 1920×1080
  • 1280×720
  • Sub-Stream Frame Rate:
  • 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • Sub-Stream Resolution: 704×576, 640×480, 352×288, 320×240
  • Bitrate Control: CBR, VBR
  • Video Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264
  • H.264 Type: Main Profile/High Profile
  • H.264+: Compatible with Main Stream
  • H.264 Type: Main Profile/High Profile
  • H.265 Type: Main Profile
  • H.265+: Compatible with Main Stream
  • Main Stream Video Bitrate: 256 Kbps to 4 Mbps
  • Sub-Stream Video Bitrate: 64 Kbps to 512 Kbps
  • Interfaces – Network Interface: 1 x RJ45 10/100M Self-Adaptive Ethernet Port, PoE
  • Power: DC power port
  • Network Features
  • Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
  • ONVIF
  • API: ONVIF
  • Simultaneous live view 3 main streams and 3 sub-streams
  • Client: VIGI App, VIGI Security Manager, Web UI
  • Web browser:
  • Google Chrome® 57 and above
  • Firefox® 52 and above
  • Safari® 11 and above
  • Microsoft® Edge 91 and above
  • Cloud
  • Security: Password protection, HTTPS encryption, IP address filtering, implicit authentication
  • Network storage: NAS (NFS, SMB/CIFS)
  • Alarm and Event Management
  • Intelligent classification of people and vehicle events
  • Area intrusion detection
  • Line crossing detection
  • People detection
  • Vehicle detection
  • Region entry detection
  • Region exit detection
  • Abandoned object detection
  • Object removal detection
  • Basic event motion detection, video tampering detection, exception (illegal login)
  • Alarm push binding message
  • Push exit notification message
  • Power
  • Maximum power consumption: 5 W
  • (Day Mode): 1.32 W
  • (Night mode with IR LED): 2.68 W
  • Power supply 12 V DC ± 5 %, max. 5 W coaxial power plug and 5.5 mm.
  • PoE: 802.3af/at, class 0, max. 5.5 watts
  • Dimensions and weight
  • 73× 174 × 71 mm
  • 0.21 g
  • Contains
  • VIGI network camera
  • Quick start guide
  • Waterproof cable accessories
  • Mounting accessories
