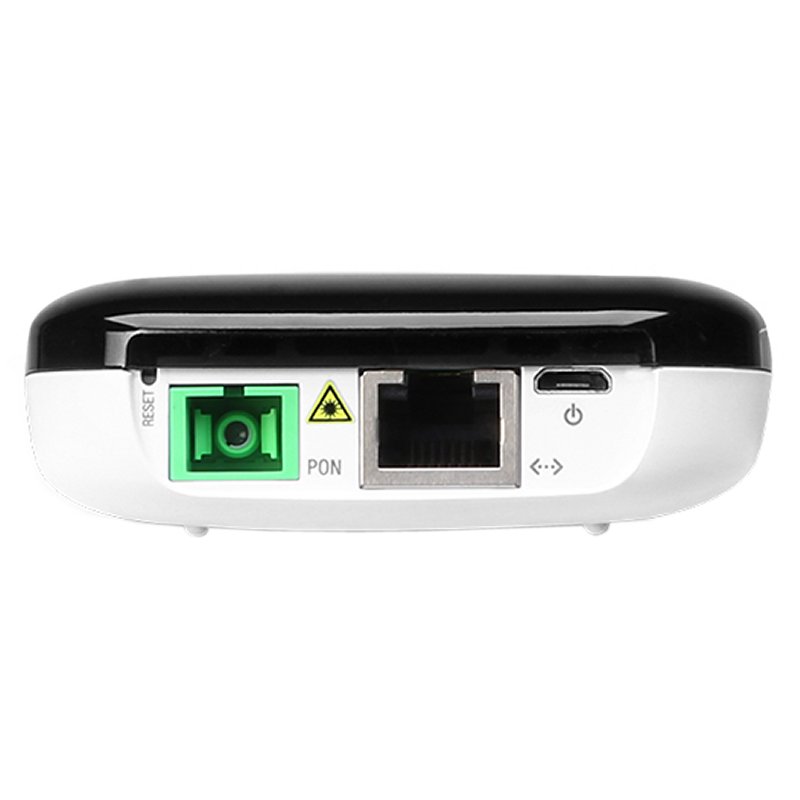

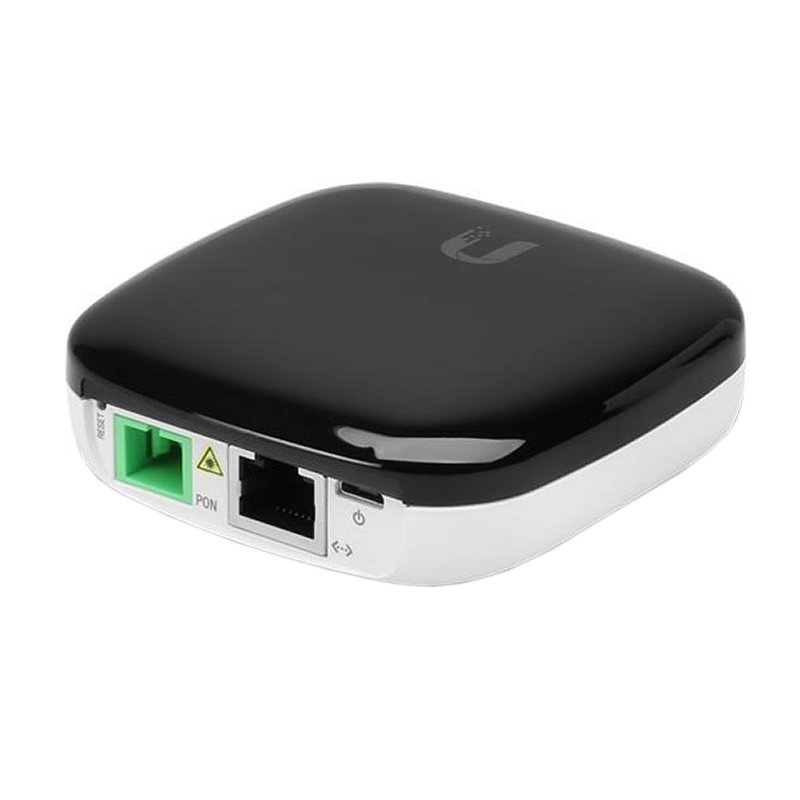

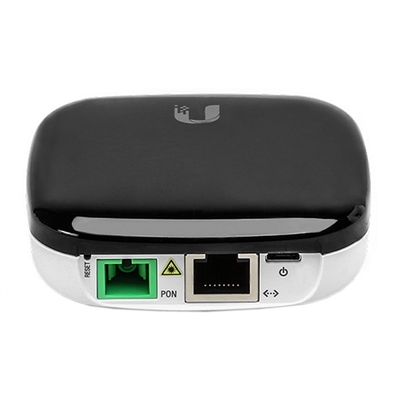

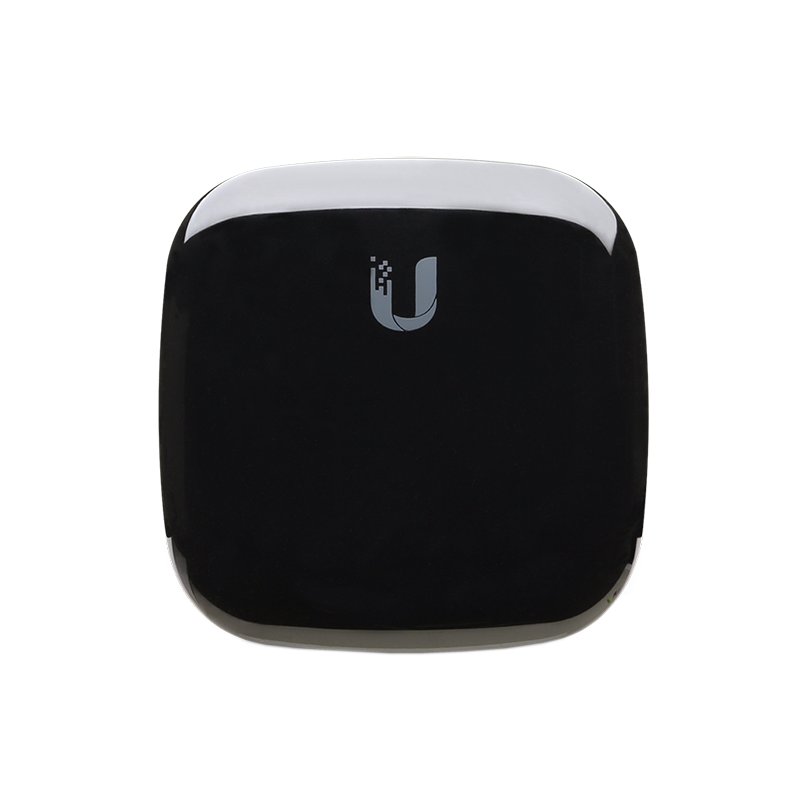

Ubiquiti UFiber UF-Loco 1xGPON 1xGB

Discover the Ubiquiti UFiber UF-Loco 1xGPON 1xGB, a high-quality network solution ideal for those seeking performance and reliability. This UBIQUITI device is designed to provide a fast and stable connection in wired network environments, ensuring a superior user experience.

• GPON connection for high-speed Internet access.
• 1Gbps interface, ideal for applications that require high bandwidth.
• Compact and efficient design, perfect for installations in small spaces.
• Compatibility with Ubiquiti equipment, ensuring simple integration into your network.

Technical Specifications

• The UF-LOCO is a robust, high-performance, low-power GPON CPE for end-user environments.
• It is designed to work in conjunction with Ubiquiti’s OLT headend (model UF-OLT), so that each SFP module installed in the OLT (see available modules at this link) supports up to 128 UF-LOCO clients.
• Brand UBIQUITI
• Model UF-LOCO
• Network Features
• Ethernet LAN, data transfer speed: 10,100,1000Mbit/s
• Data transfer speed: 2.488Gbit/s
• Management Features
• Reset button: Yes
• Ports and Interfaces
• Ethernet LAN (RJ-45) number of ports: 1
• Weight and Dimensions
• Dimensions (W x D x H): 76.5 x 76.5 x 26.4 mm
• Weight: 77 g
• Power Control
• Power consumption: 3.5W
• Power over Ethernet (PoE): Yes
• Input current: 1A
• Input voltage: 24V
• Environmental Conditions
• Operating temperature range: -10 – 45°C
• Relative humidity range for operation: 10 – 90%
• Technical Details
• Built-in processor: Yes
• Number of installed processors: 1
• Processor frequency: 240 MHz
• Memory and processor: MIPS32
• Indication
• LED indicators: Network, Power, Signal strength
• Power LED: Yes
• Regulatory Approvals
• Certification: CE, FCC, IC
• Review Date 05-10-2018 by AVN
