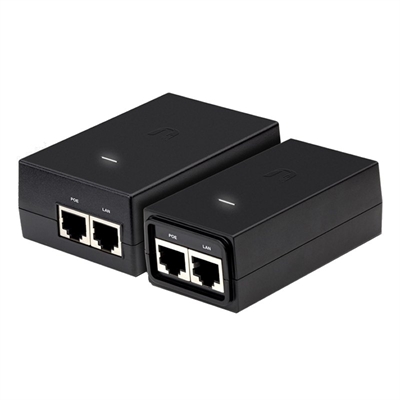

Ubiquiti PoE Injector POE-50-60W 50VDC 1.2A

Discover the ubiquiti injector Poe Poe-50-60W , an essential device for the feeding of your network equipment. With a power of 50vdc and 1.2a , this Poe injector is ideal to ensure optimal performance in your Wi -Fi network devices.

• Compatible with multiple Ubiquiti devices. Use.
• Improves connectivity and reduces cable disorder.

Technical Specifications

• Spare PoE feeder for Ubiquiti AirFiber. PoE (50V, 1.2A) with EU power cable.
• Brand Ubiquiti
• Model POE-50-60W
• Specifications
• Dimensions: 100.95 x 60 x 33 mm
• Weight: 192 g
• Gigabit LAN port
• Output voltage: 50VDC @ 1.2A
• Input voltage: 90-260VAC @ 47-63 Hz
• Input current:
• 1.3A @ 120VAC, 0.75A @ 240VAC
• Efficiency 85+%
• Switching frequency: 65kHz
• Line regulation: +-1%
• Load regulation +-3%
• 4-Pair power:
• Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
• Operating temperature: 0 to 40ºC
• Storage temperature: -30 to 70ºC
• Operating humidity:
• 35 to 95 Non-condensing
• AC connector: IEC-320 C6
• Compliance:
• IEC 60950-1:2005+A1
• UL60950-1
• EN55022:2010
• EN55024:2010
• FCC Class B
• Technical brochure https://dl.ubnt.com/datasheets/poe/PoE_Adapters_DS.pdf
• Revision Date 10-03-2016 by MSB
