Ubiquiti AirMax Sector AM-5G16-120 5GHz 16dBi

Improve your wireless network with the Ubiquiti Airmax Sector AM-5G16-120 , a powerful 5GHz sector with 16DBI gain. This device is ideal for creating high -range and high capacity networks, guaranteeing a stable and fast connection. Ideal for exteriors and adverse climatic conditions.

Technical Specifications

• Sectorial Antenna AM-5G16-120 2×2 MIMO for Base Station, 5 GHz, 17 dBi
• Sector Coverage
• The AirMax Sector Antenna is a 2×2 Dual Polarity MIMO Sector antenna designed to integrate seamlessly with RocketM radios (RocketM sold separately). It combines the RocketM radio with the range of the AirMax Sector antenna to create a powerful base station. This versatile combination provides flexible and convenient network architectures.
• Uses AIRMAX Technology
• Unlike standard Wi-Fi protocol, which uses time division (TDMA), the AirMax protocol allows each client to send and receive data through pre-designated time slots scheduled by an intelligent AP controller.
• This “time window” method eliminates hidden node collisions and maximizes air time efficiency. It provides many orders of magnitude improvements in latency performance, throughput, and scalability compared to all other outdoor systems in its class.
• Smart QoS
• Voice/video is prioritized for seamless transmission.
• Scalability
• High capacity and scalability.
• Long Distance
• High-speed capability
• Brand Ubiquiti
• Model AM-5G16-120
• Features
• Frequency band: 5 GHz
• Antenna type: Sectorial
• Antenna gain (max.): 16 dBi
• Voltage Standing Wave Ratio (VSWR): 1.5:1
• Polarization: Dual Linear
• Horizontal beamwidth: 137°
• Vertical beamwidth: 118°
• Down tilt plane-E: 4°
• Plane-E beamwidth: 8°
• Mounting: Wall
• Use: Outdoor
• Other Features
• Product color: White
• Certification: EN 302 326 DN2
• Weight and dimensions:
• Weight:    1100 g
• Width:  367 mm
• Depth: 63 mm
• Height: 41 mm

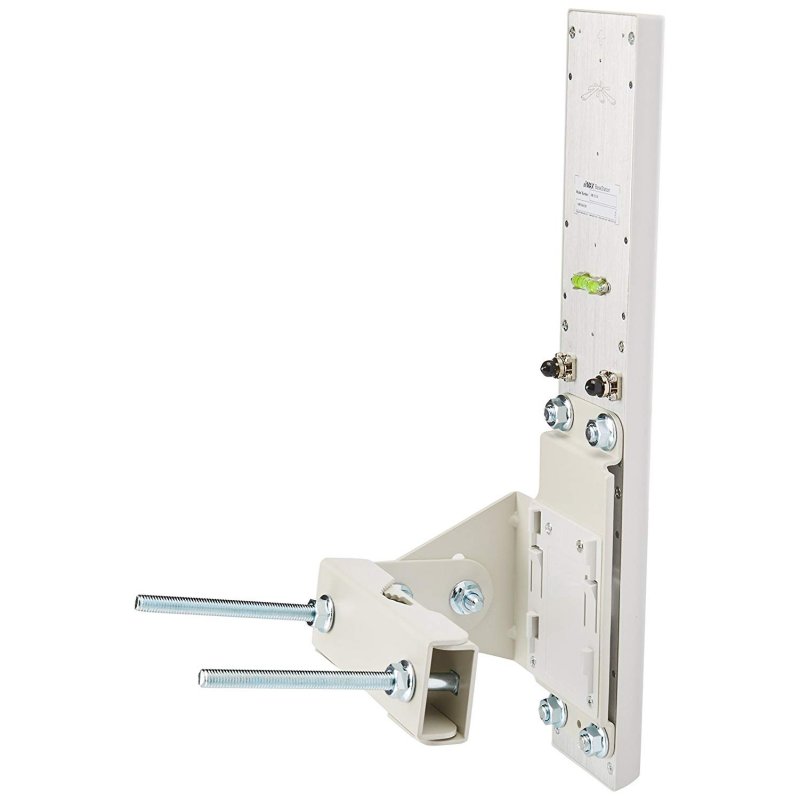

• Mounting
• Mast mounting kit, bracket for
• attaching the Rocket, weather-resistant RF jumper included.
• * Dimensions exclude the mast mounting kit
• and the RocketM. Weight includes the
• mounting kit (RocketM sold separately).
• Technical brochure https://dl.ubnt.com/datasheets/airmaxsector/airMAX_Sector_Antennas_DS.pdf
• Installation guide https://dl.ubnt.com/guides/sector/airMAX_Sector_AM-5G16-120_AM-5G17-90_QSG.pdf
• Revision date 09-12-2015 by DLS
