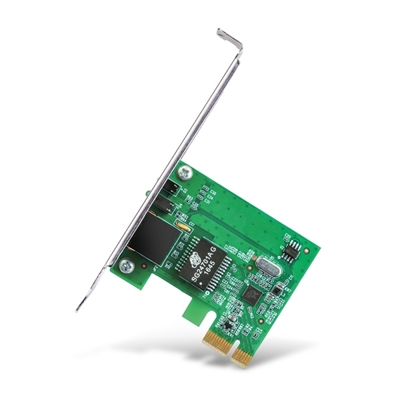

TP-LINK TG-3468 Gigabit PCI-E Network Card

The TP-LINK TG-3468 Tarjeta Red Gigabit PCI-E is the perfect solution for those seeking a fast and reliable network connection. Designed to deliver optimal performance, this network card is ideal for online gaming, high-definition video streaming, and other applications that require high bandwidth.

• Compatibility with Windows and Linux operating systems.
• Support for speeds of up to 1000 Mbps.
• Easy installation in PCI-E slots.
• Stable and high-quality connection for a superior network experience.

Technical Specifications

• Gigabit PCI Express Network Adapter
• PCIe adapter to 10/100/1000 Mbps
• 32-bit PCIe interface: space-saving inside the device
• Wake-on-LAN function, remote management via local network
• Brand TP-Link
• Model TG-3468
• Hardware Features – Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1Q, 802.1p CSMA / CD, TCP / IP
• Interface:
• 32-bit PCI Express
• 1 RJ45 port at 10/100/1000 Mbps
• Network Media:
• 10BASE-T: UTP cable category 3, 4, 5 (maximum 100 meters)
• EIA/TIA-568 100Ω STP (maximum 100 m)
• 100BASE-TX: UTP cables categories 5, 5e (maximum 100 meters)
• EIA/TIA-568 100Ω STP (maximum 100 m)
• 1000Base-T: UTP cables category 5, 5e (maximum 100 meters)
• LED: Status
• Wireless Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
• Transfer Rate:
• 10/100/1000Mbps for Half-Duplex mode,
• 20/200/2000Mbps for Full-Duplex mode
• LED Indicator: 1000 Mbps link/activity status, 100 Mbps link/activity, 10 Mbps link/activity
• Dimensions: 3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm)
• Flow Control: IEEE 802.3x Flow Control (Full-Duplex)
• Other Features – Certifications: CE, FCC, RoHS
• System Requirements: Windows 7 (32/64 bits), Windows Vista (32/64 bits), Windows XP (32/64 bits)
• Contents
• Gigabit PCI Express Network Adapter TG-3468
• Utility CD
• Quick Installation Guide
• Review Date 17-12-2020 by MSB
